2006 Takisawa EX-110
Sold
2006 Takisawa EX-110
Specifications
| Manufacturer | Takisawa |
| Model | EX-110 |
| Year | 2006 |
| Condition | Used |

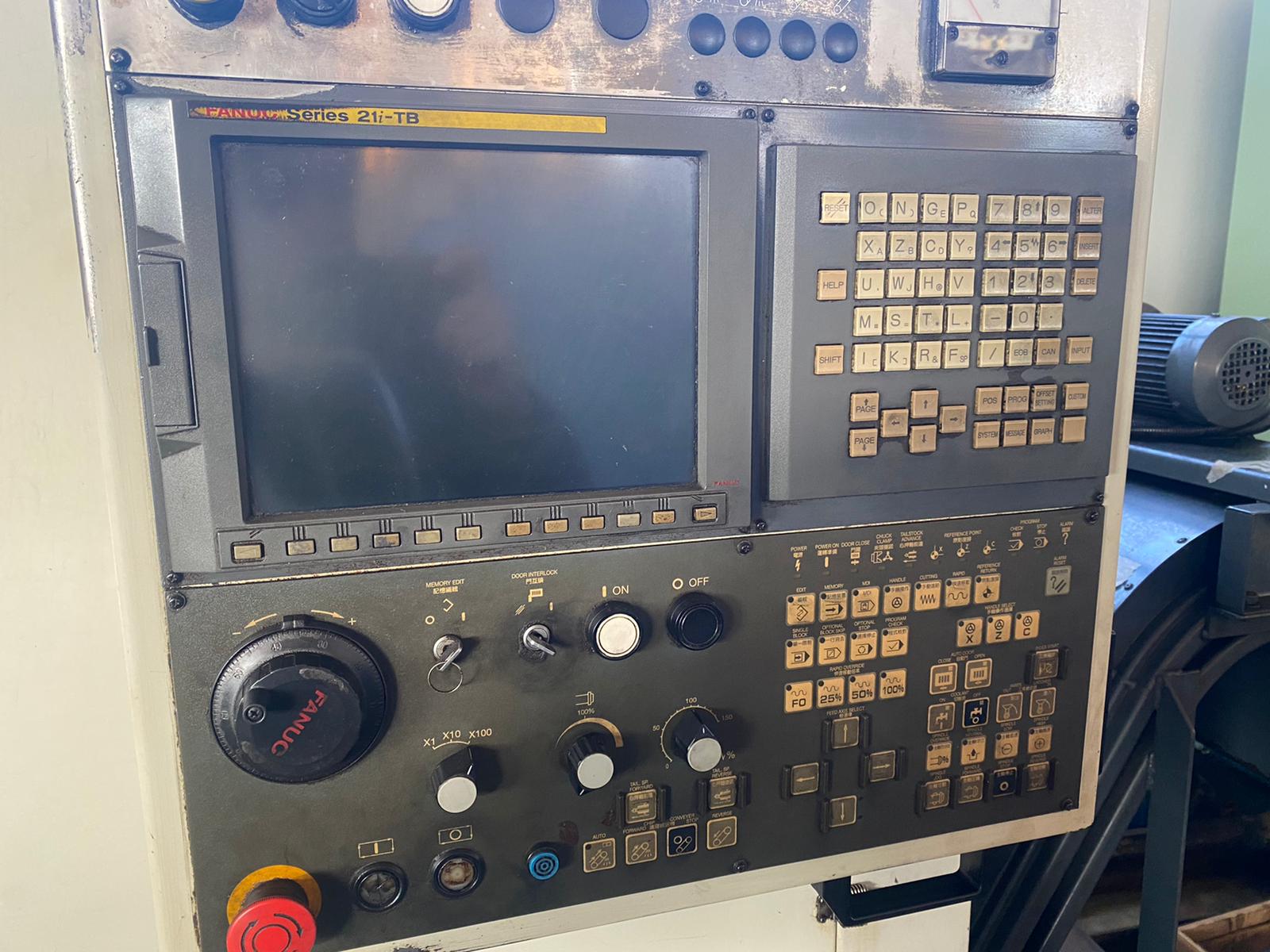

| CNC Control | FANUC Series 21i-TB |
| Max swing over the bench | Ø 495 mm |
| Max turning diameter | Ø 400 mm |
| Max turning length | 700 mm |
| Bar diameter capacity through the spindle | Ø 76 |
| X axis travel | 220 mm |
| Z axis travel | 710 mm |
| Spindle chuck diameter | Ø 254 mm |
| Spindle speed | 35 ÷ 3.500 Rpm |
| Spindle nose size | ASA A2-8 |
| Spindle motor power (cont/30 min) | 15 / 18,5 kW |

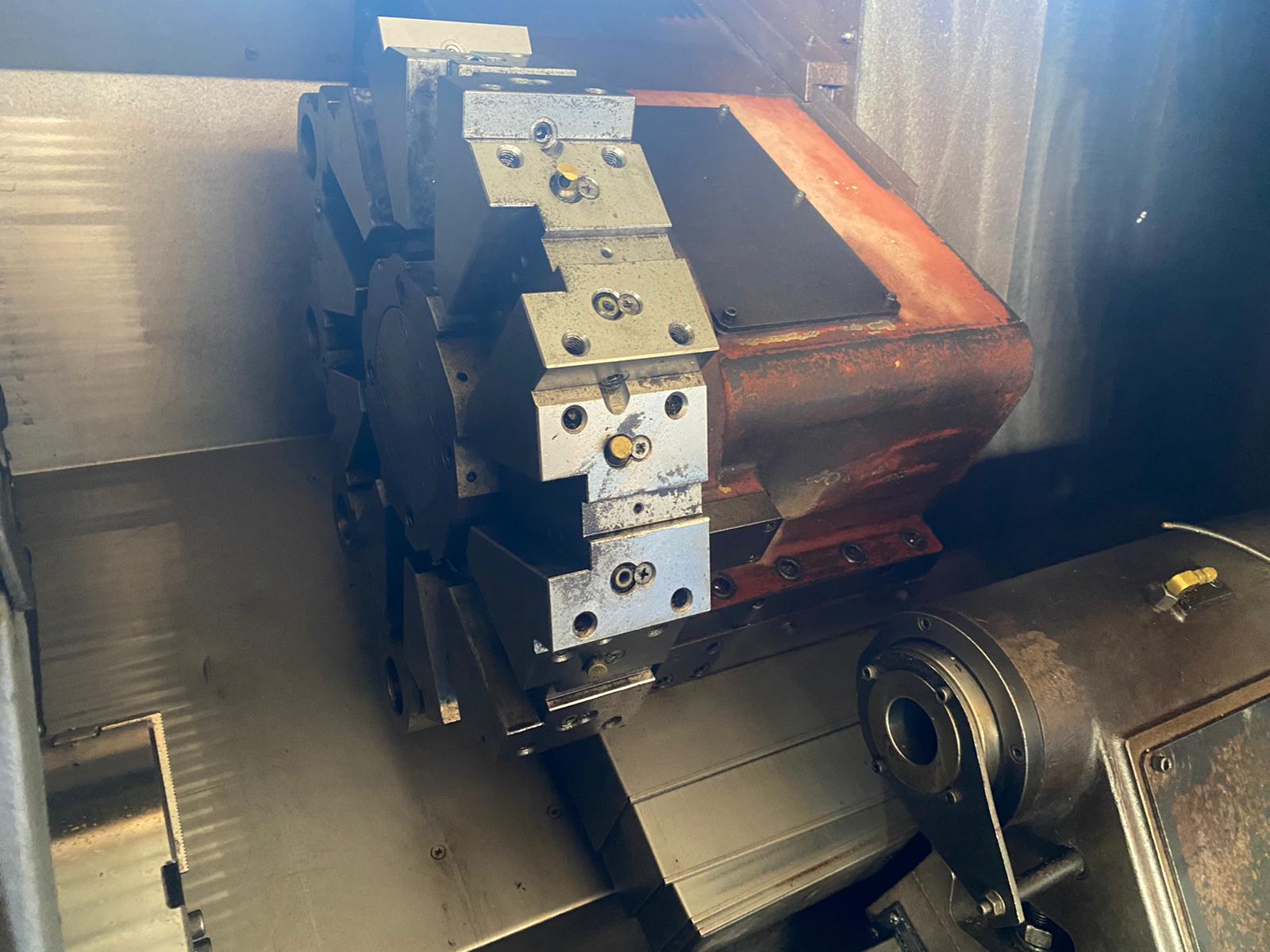

| Turret positions | 10 Positions |
| Turning / boring tool dimensions | 25x25 / Ø50 mm |
| X axis feedrate | 16.000 mm/min |
| Z axis feedrates | 20.000 mm/min |
| Tailstock quill diameter | Ø 110 mm |
| Tailstock taper size | MT-5 |
| Tailstock quill travel | 150 mm |

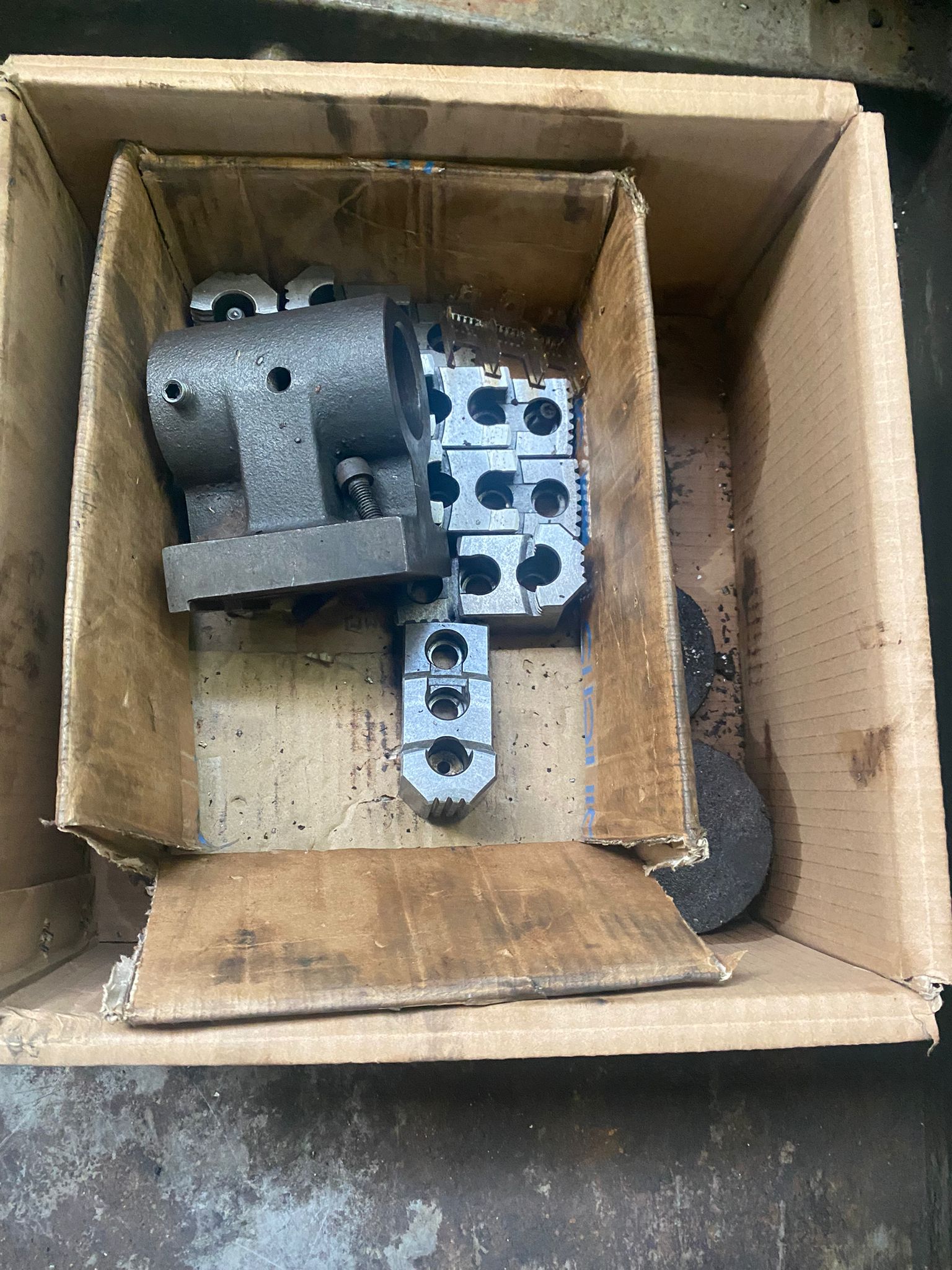

| Accessories | Various fix tool holders - Automatic Tool presetting arm (with botton and M code) - Coolant tank with recycling pump - Chip conveyor - Manuals - Electric diagrams - EC CE Decleration |
