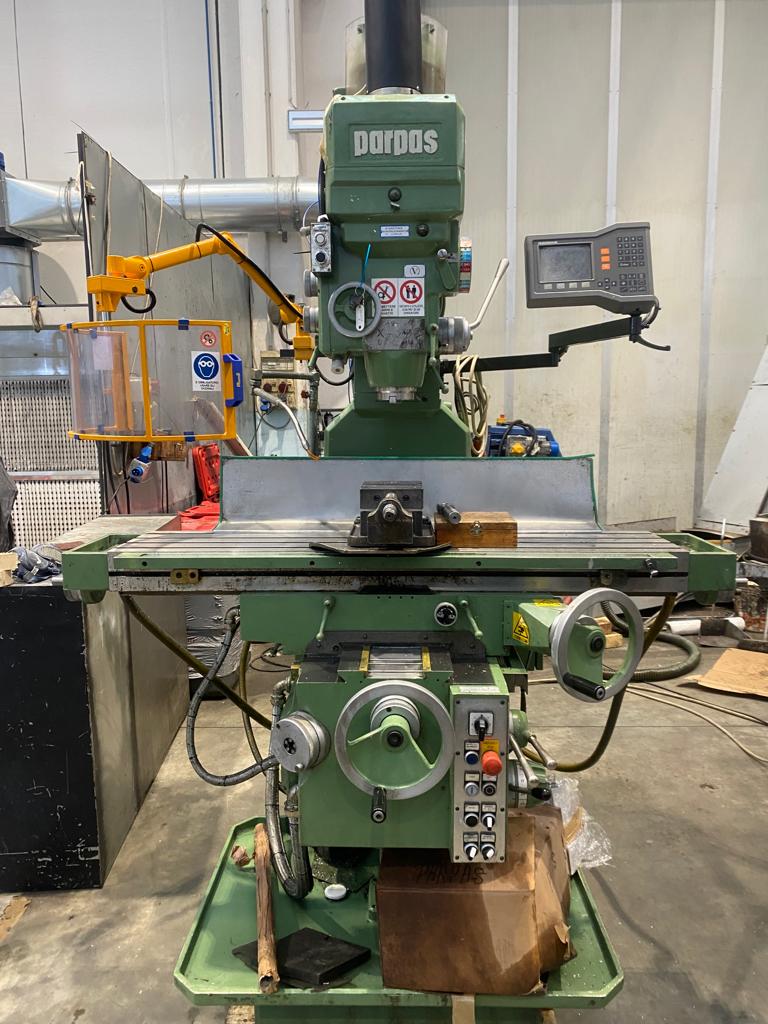

1978 PARPAS FV - A
Sold
1978 PARPAS FV - A
Description
Machine refurbished in 2015:
Put in safety with protection and certificate

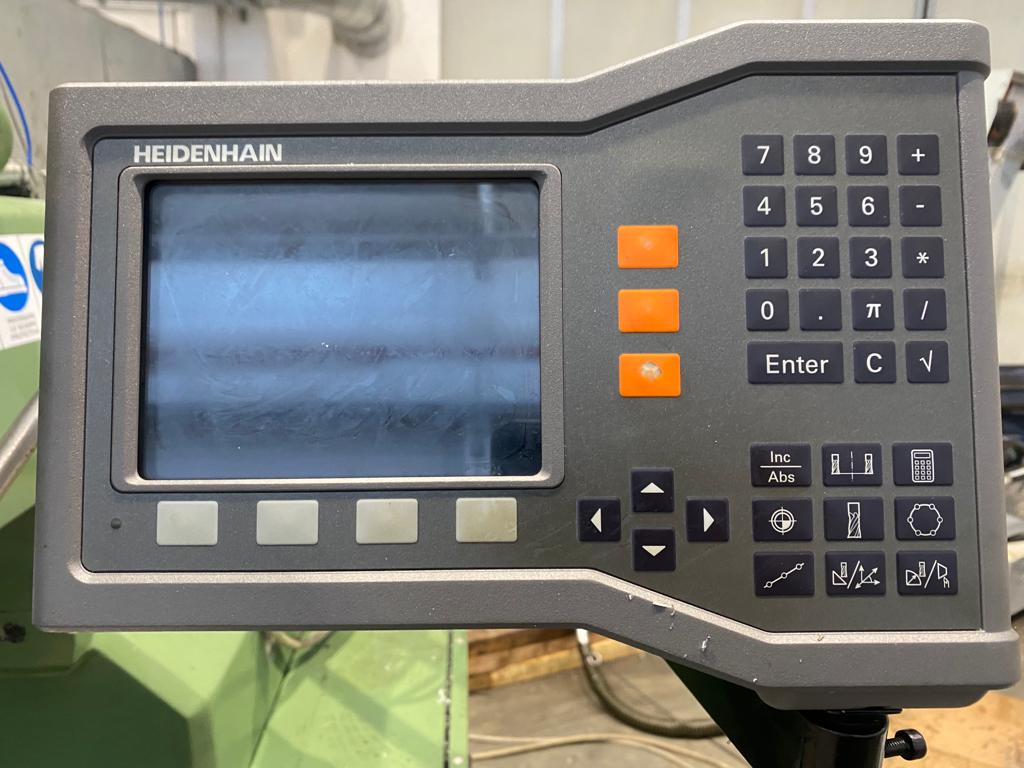

Installed Heidenhain scales + DRO

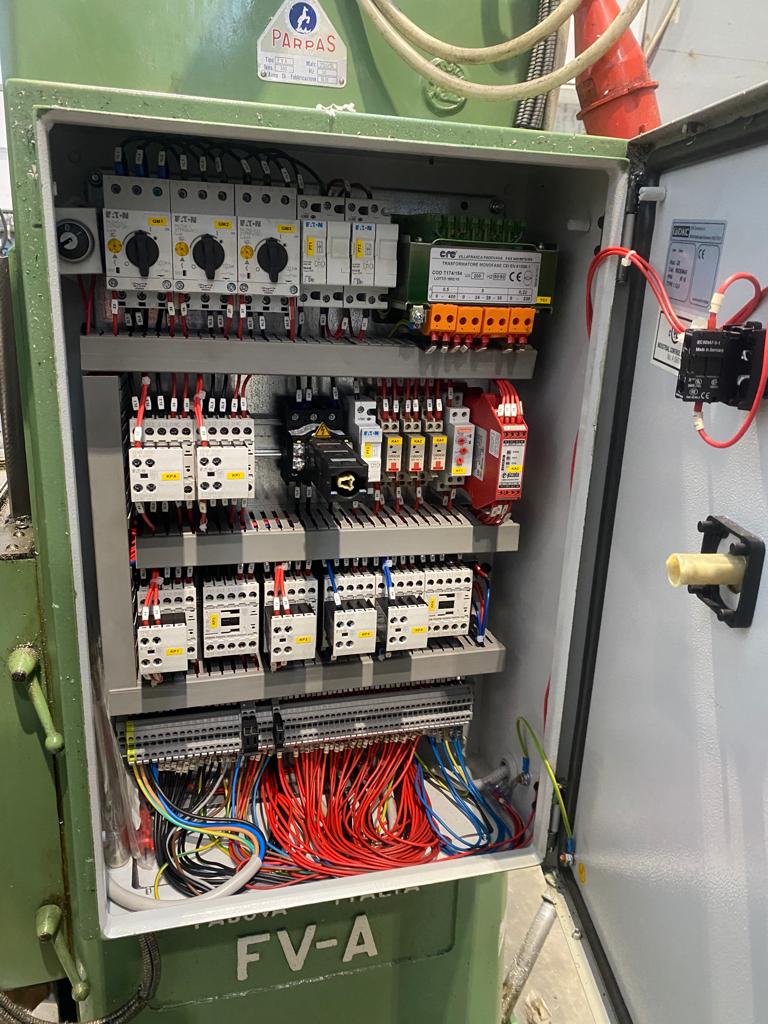

Refurbished electrical panel.

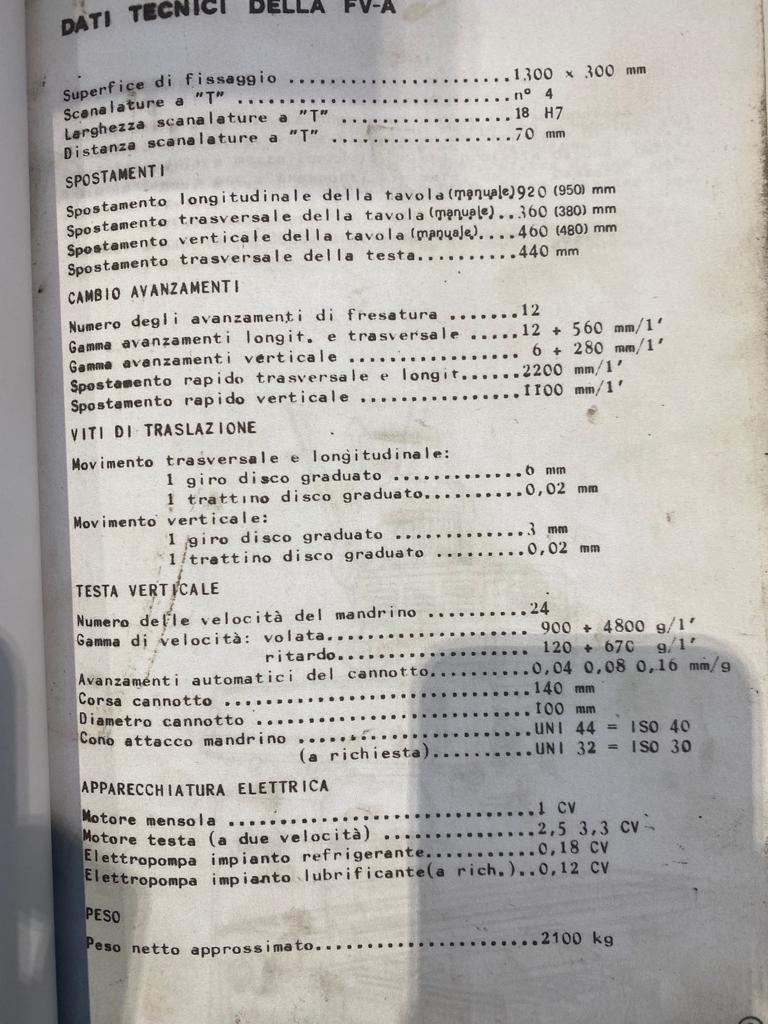

Specifications
| Manufacturer | PARPAS |
| Model | FV - A |
| Year | 1978 |
| Condition | Used |

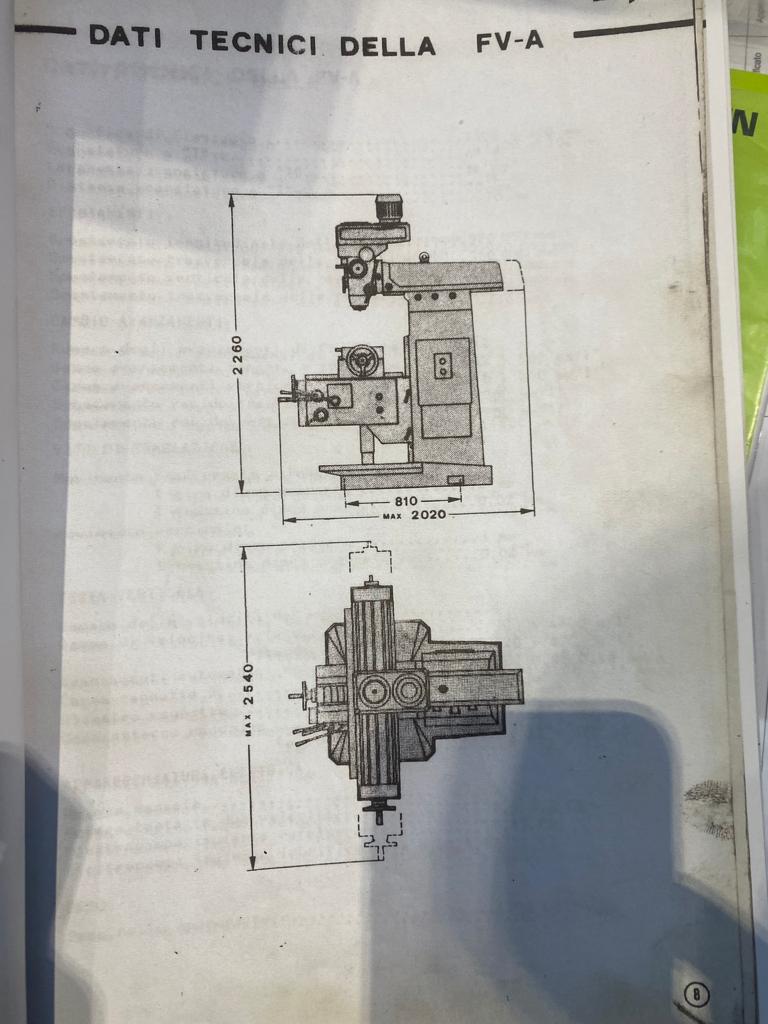

| Machine dimensions | Length: 1.900 mm - Width: 2.020 mm - Height: 2.260 mm |
| Machine weight | 2100 Kg |
| Cone size | ISO - 40 |

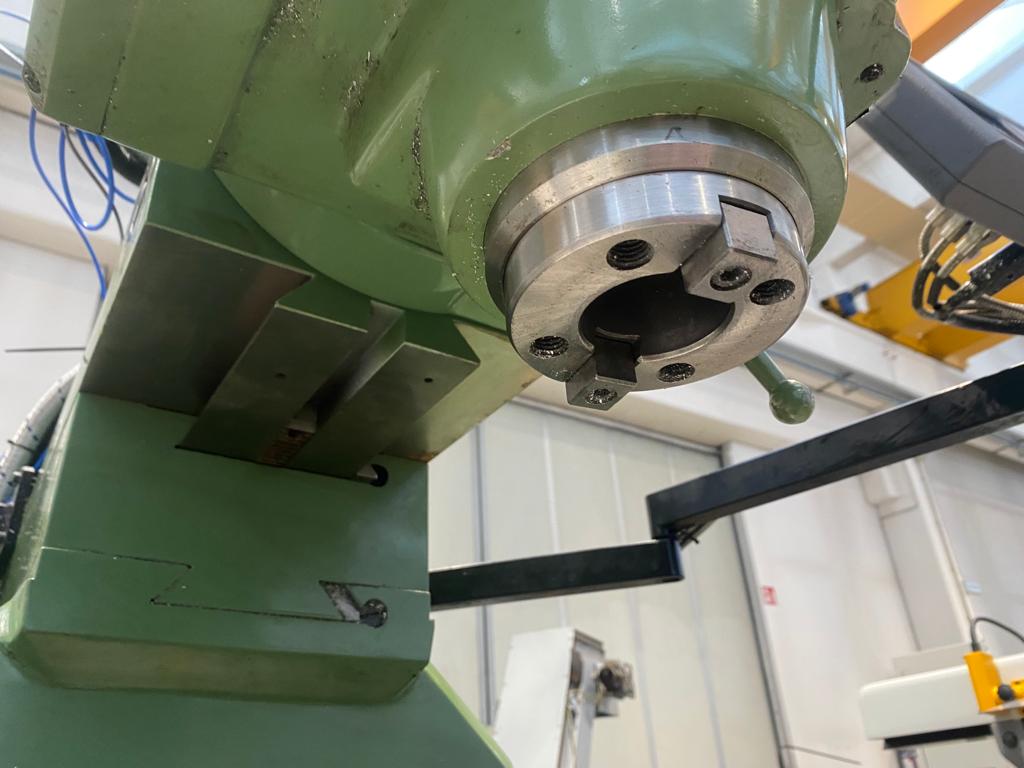

| Quill diameter | Ø100 mm |
| Spindle speed | 4800 Rpm |
| Spindle motor power (cont/30 min) | 1,84 Kw – 2,46 Kw |
| X axis | 950 mm |
| Y axis | 380 mm |
| Z axis | 480 mm |
| Quill vertical travel | 140 mm |
| Table dimensions | 1.300 x 300 mm |
| “T” Slot dimensions ( Width – Number – Depth ) | 18 mm – 4 – 70 mm |
| Rapid feeds x / y axes | 2200 mm/min |
| Rapid feed axe Z | 1100 mm/min |

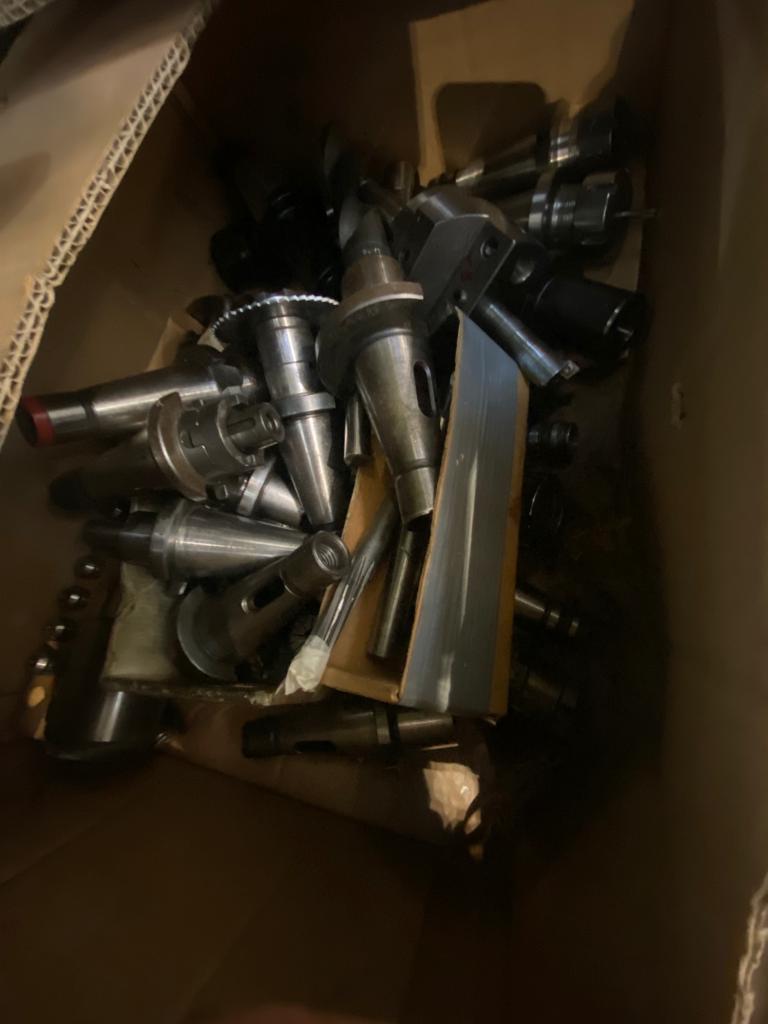

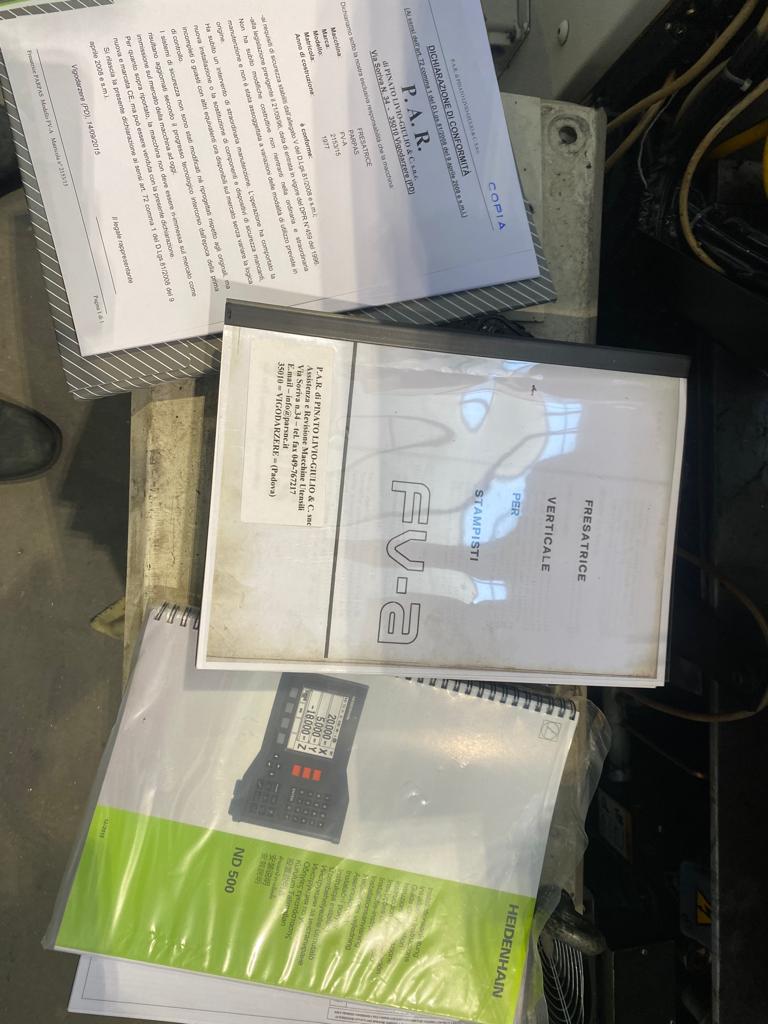

| Accessories | Digital Read Out (D.R.O.) for the 3 axes (X/Y/Z) make HEIDENHAIN Shaft, supports and many Toolings Manuals and Electrical Diagrams |
