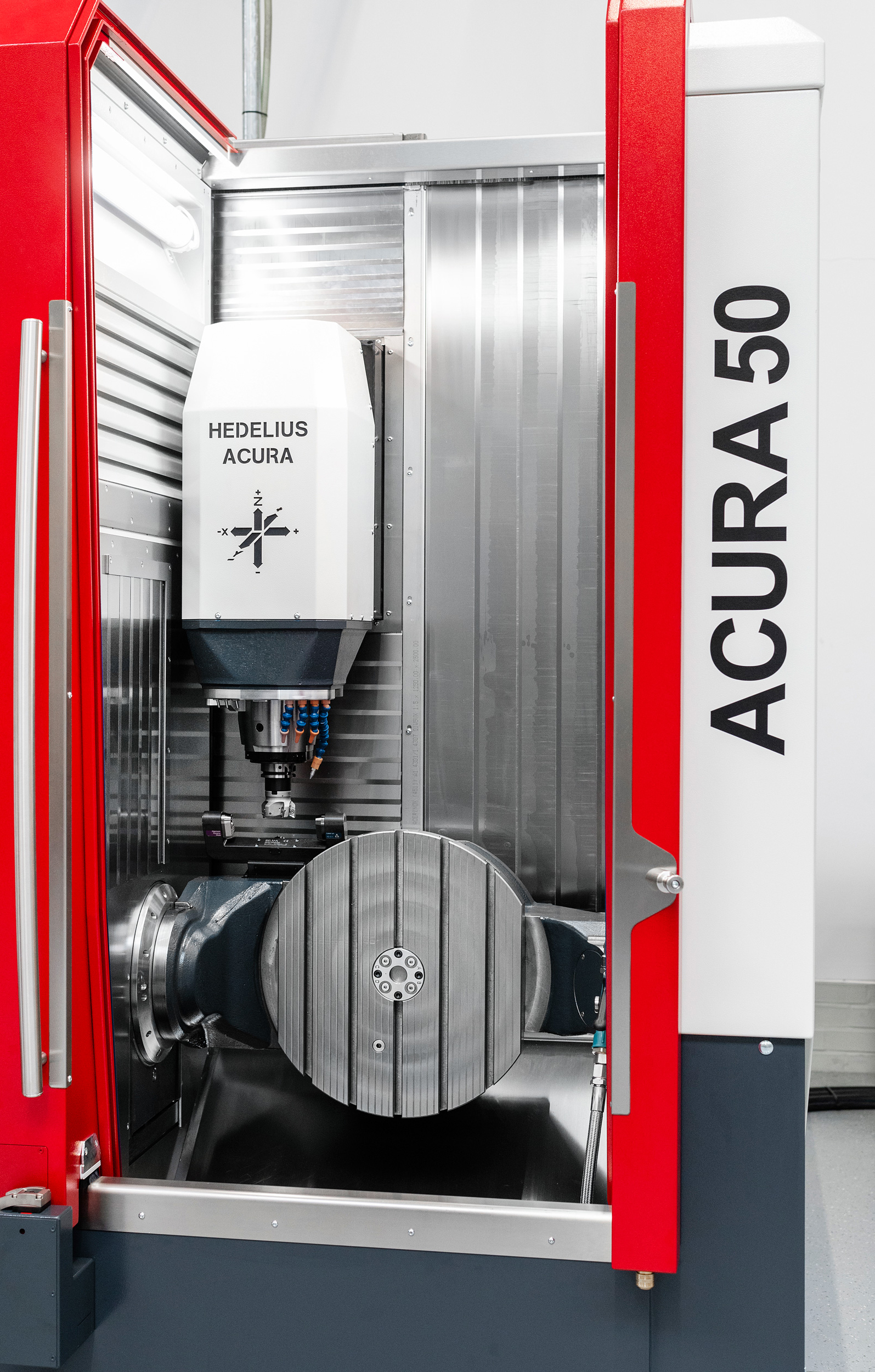

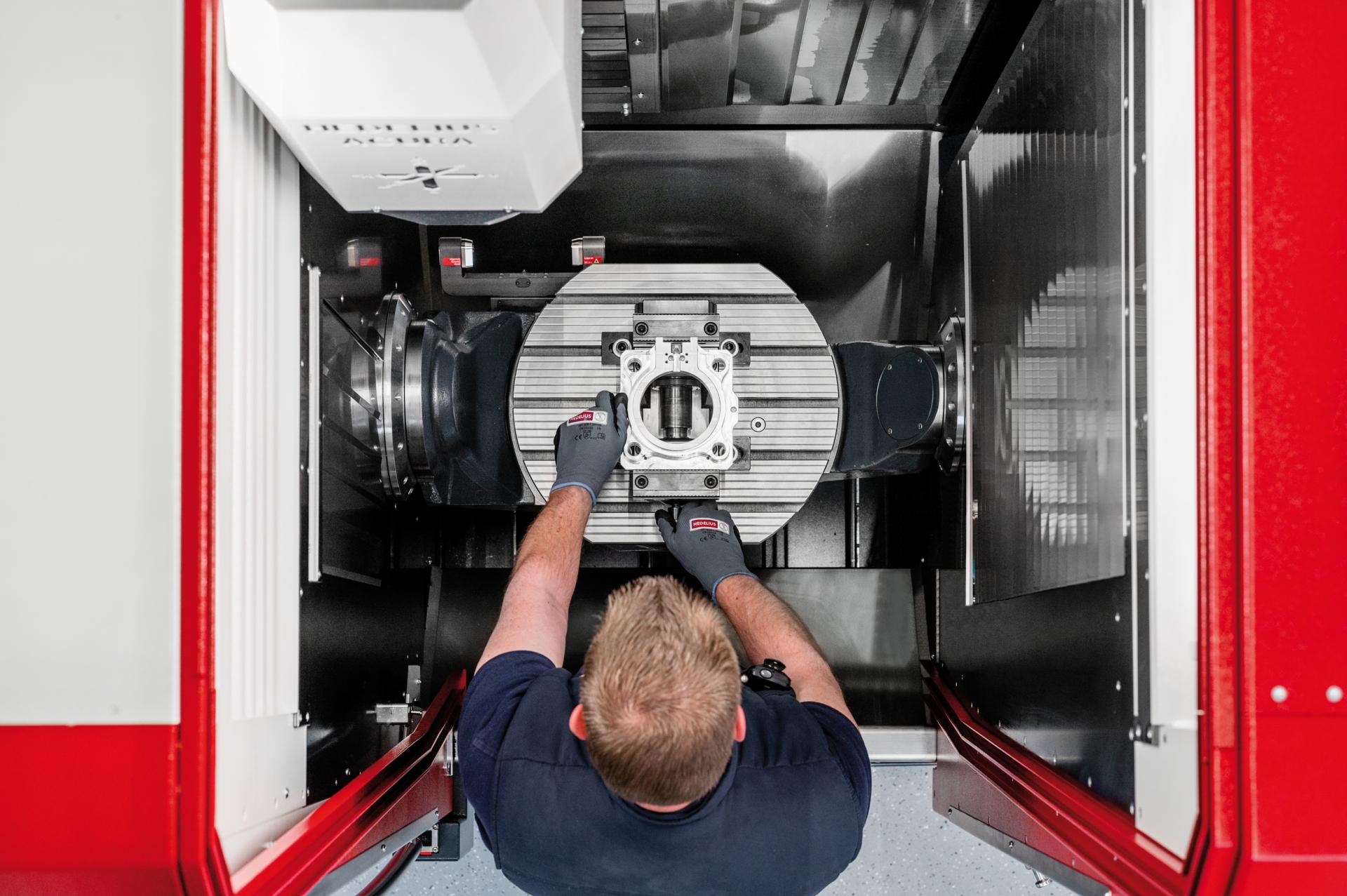

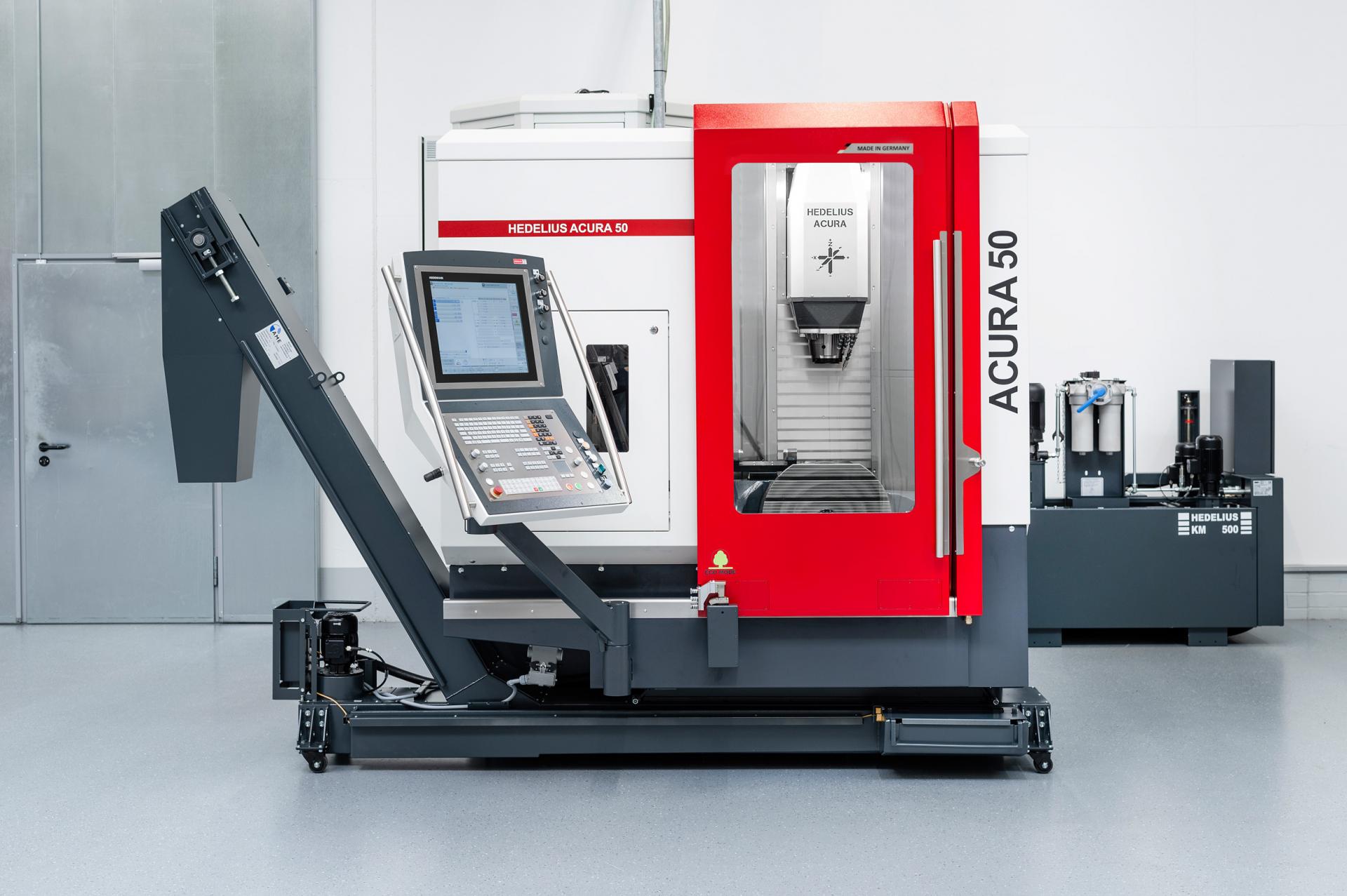

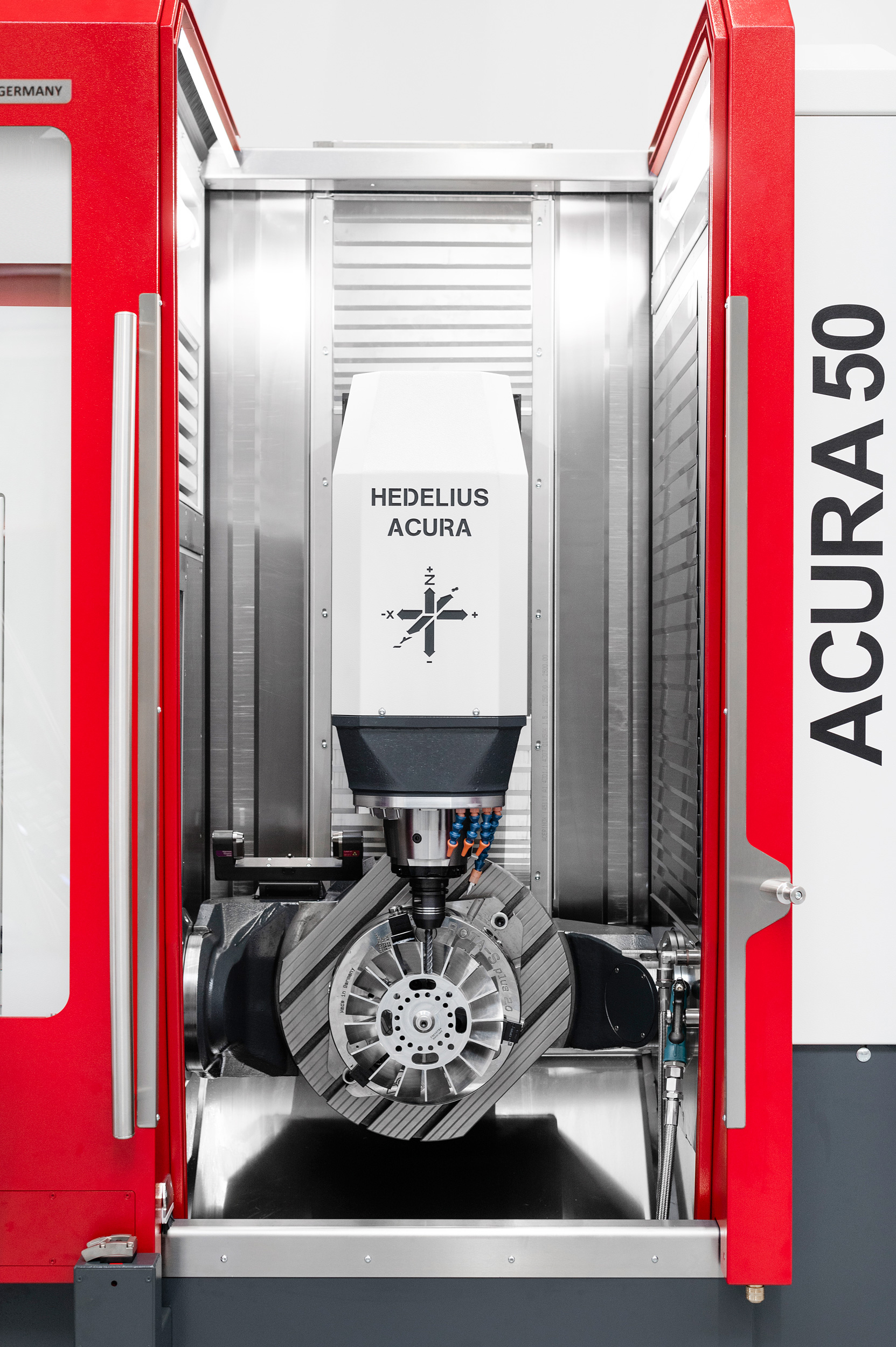

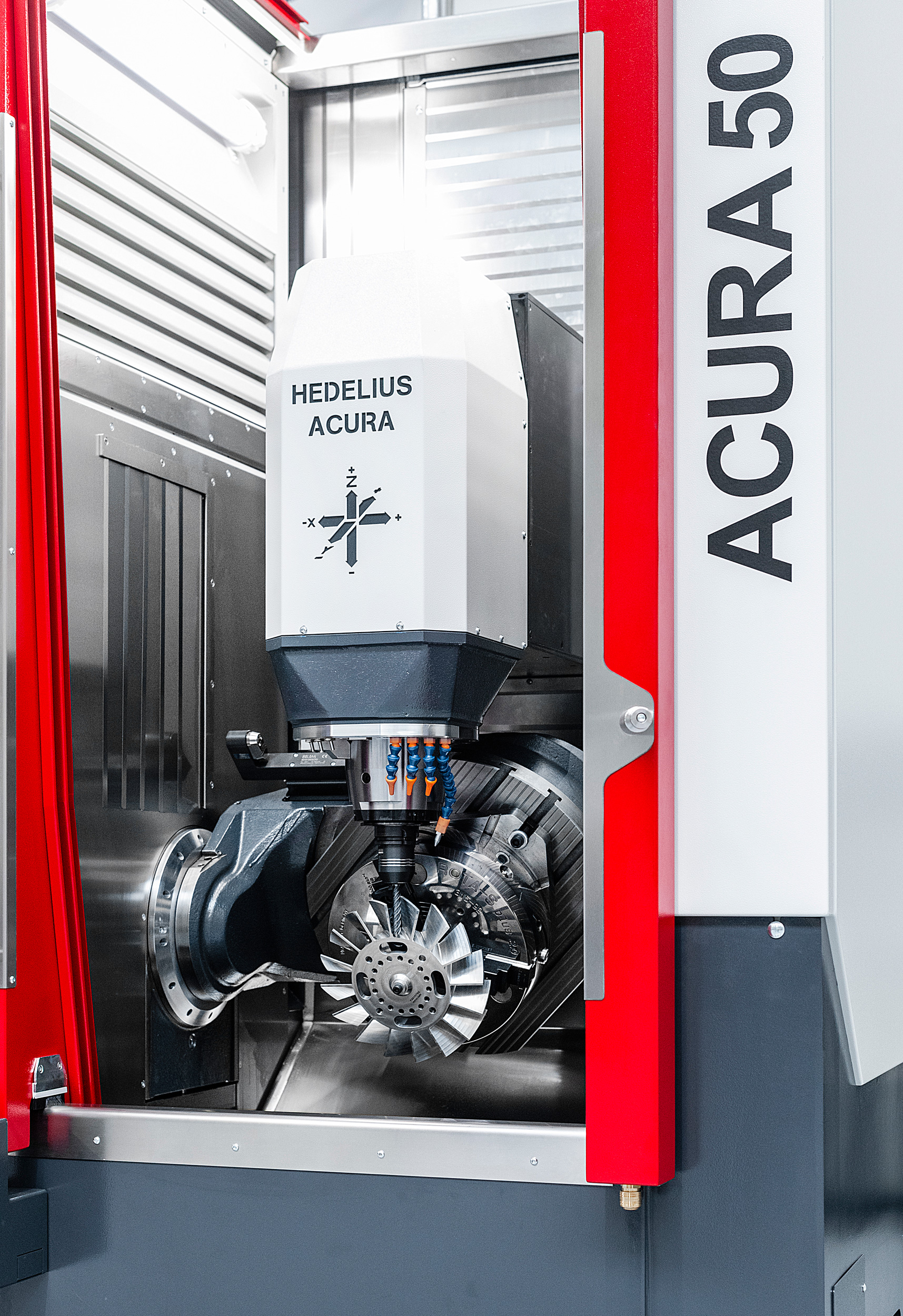

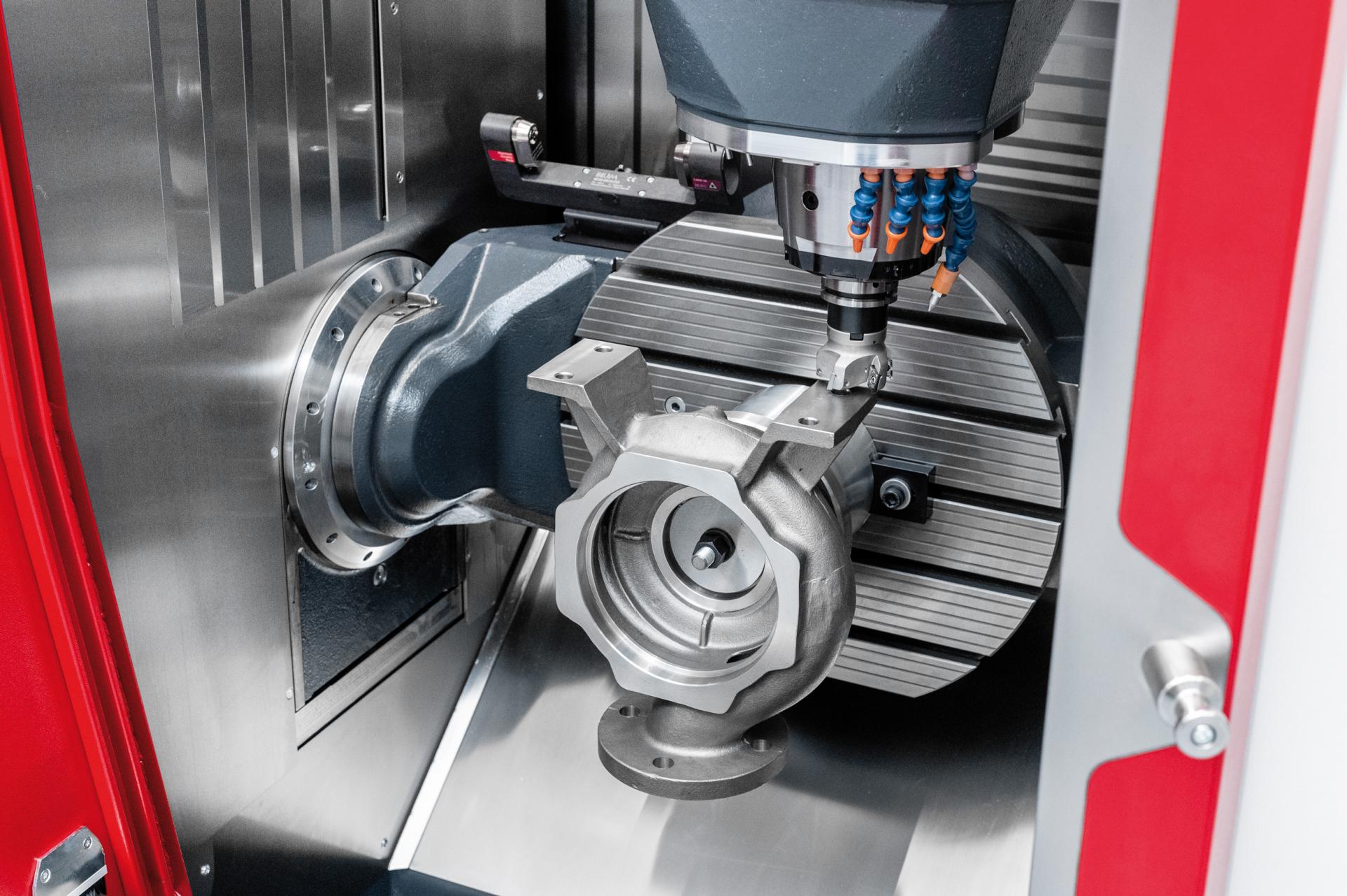

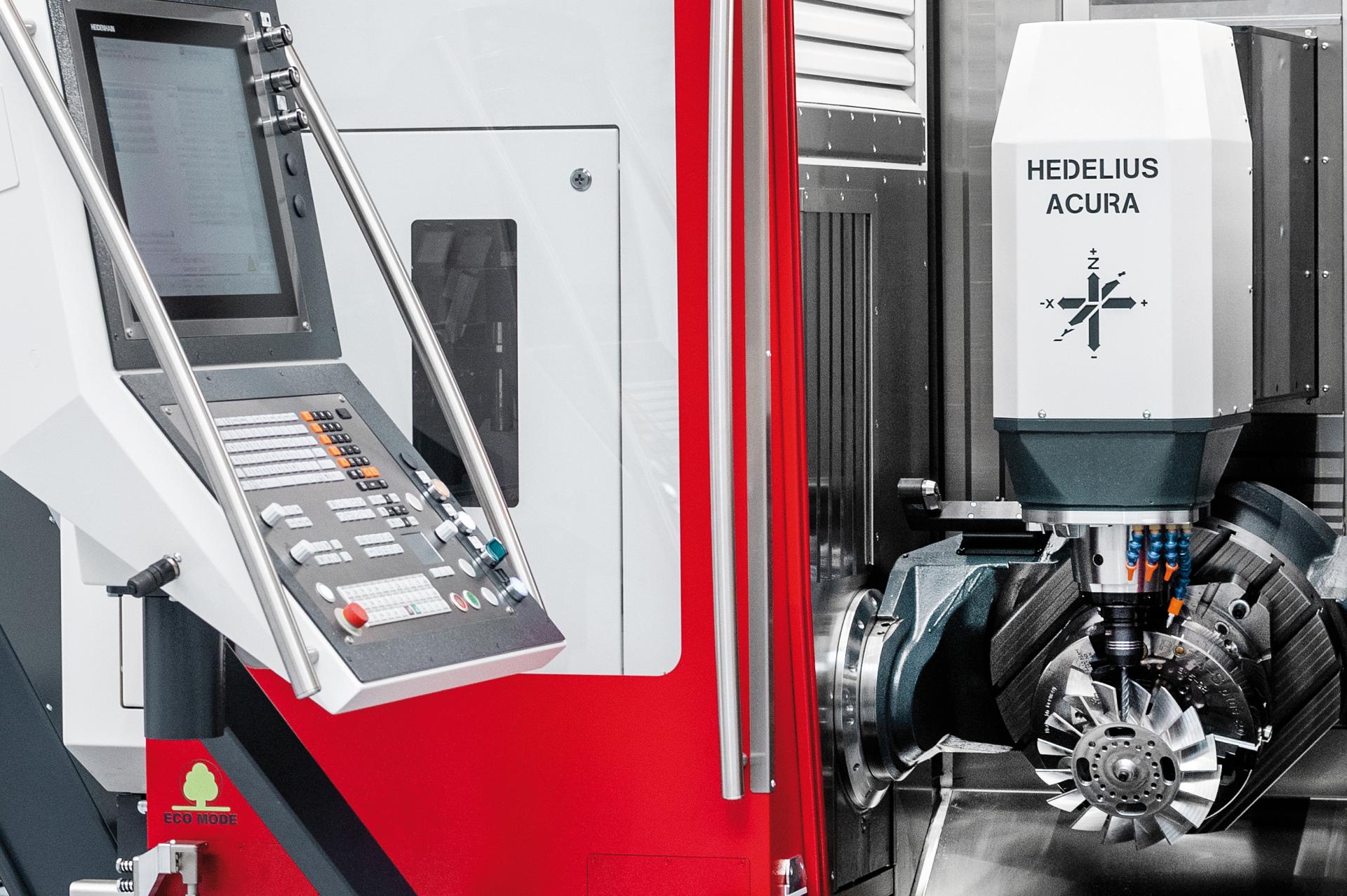

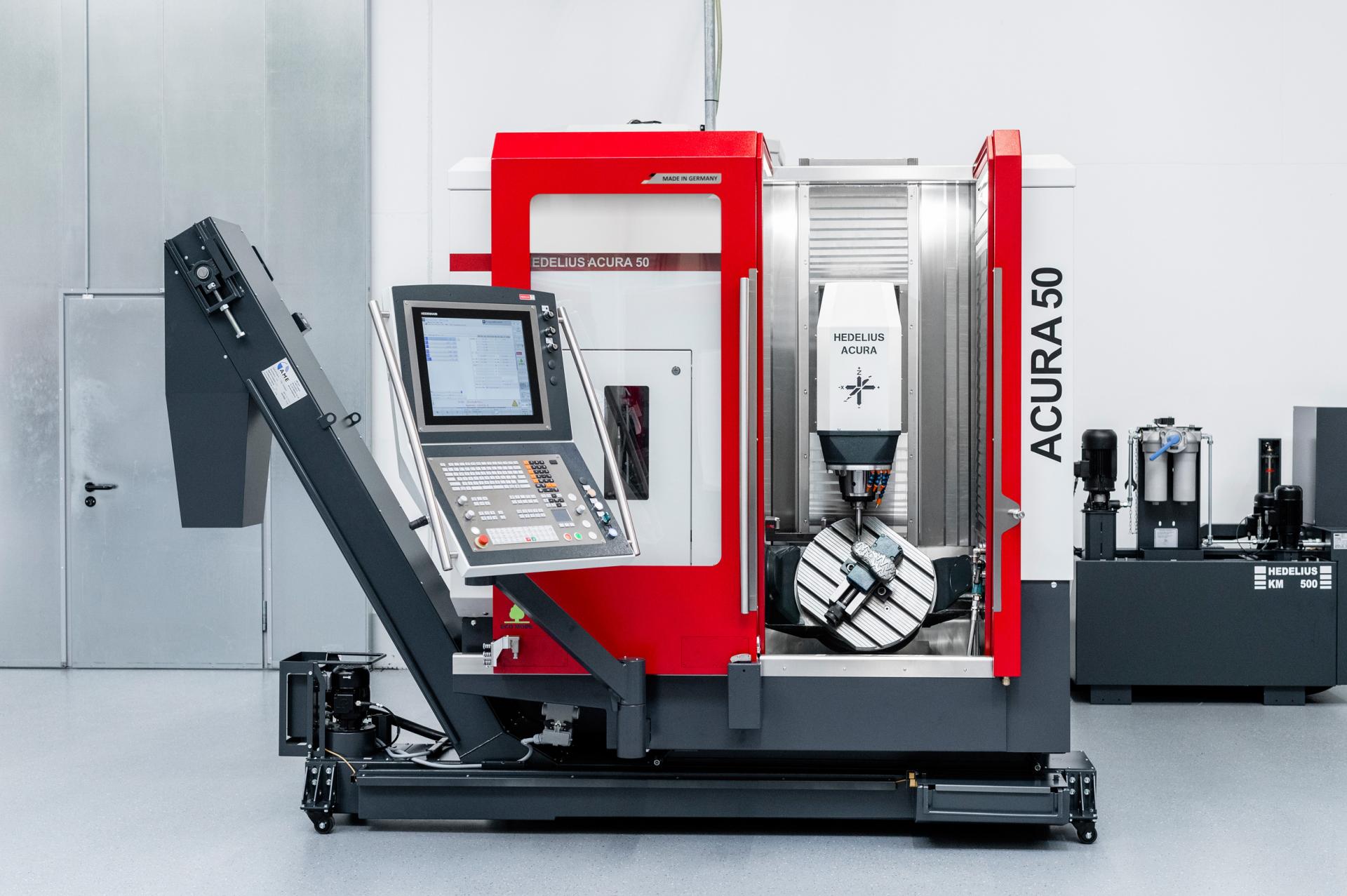

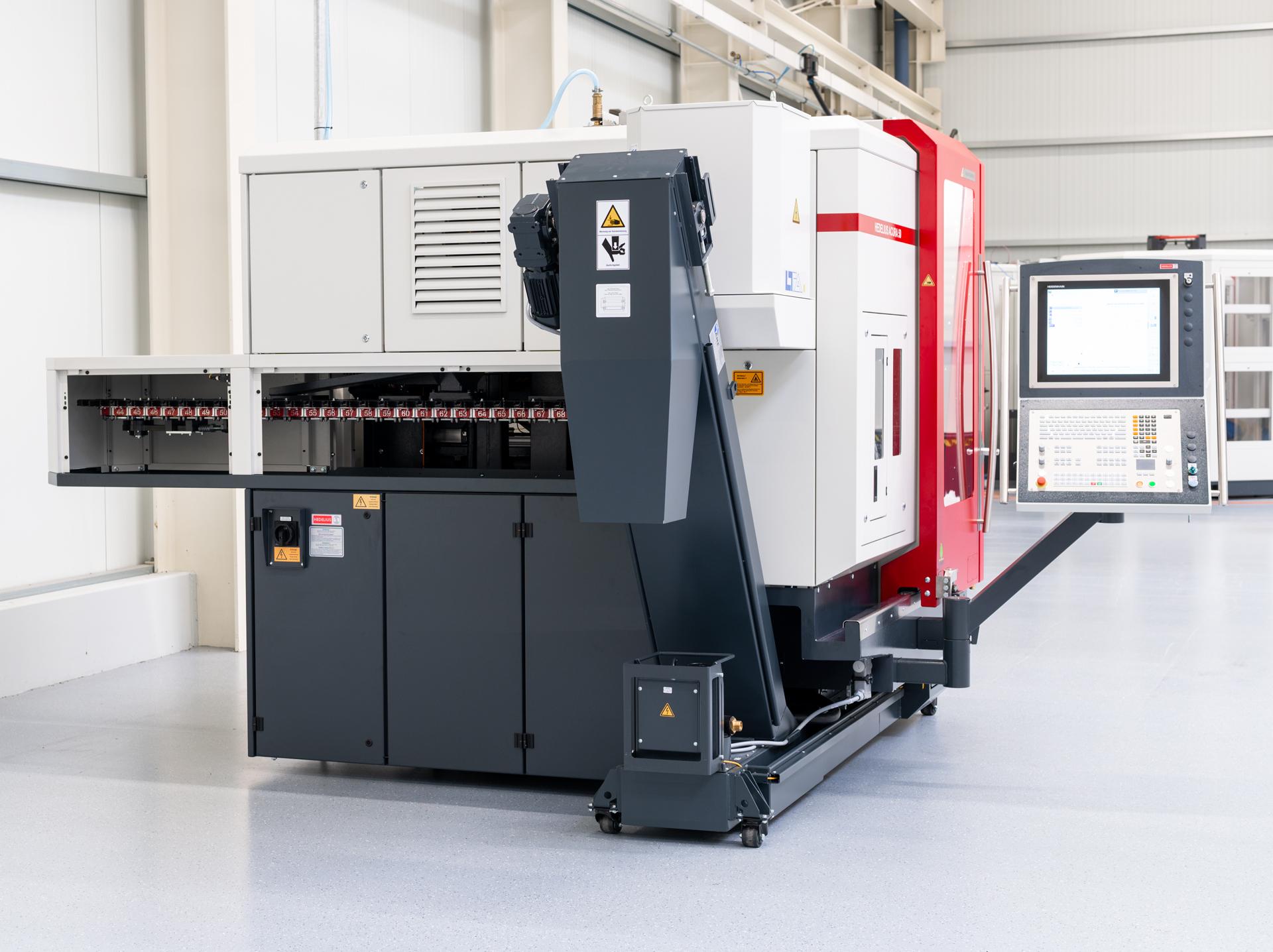

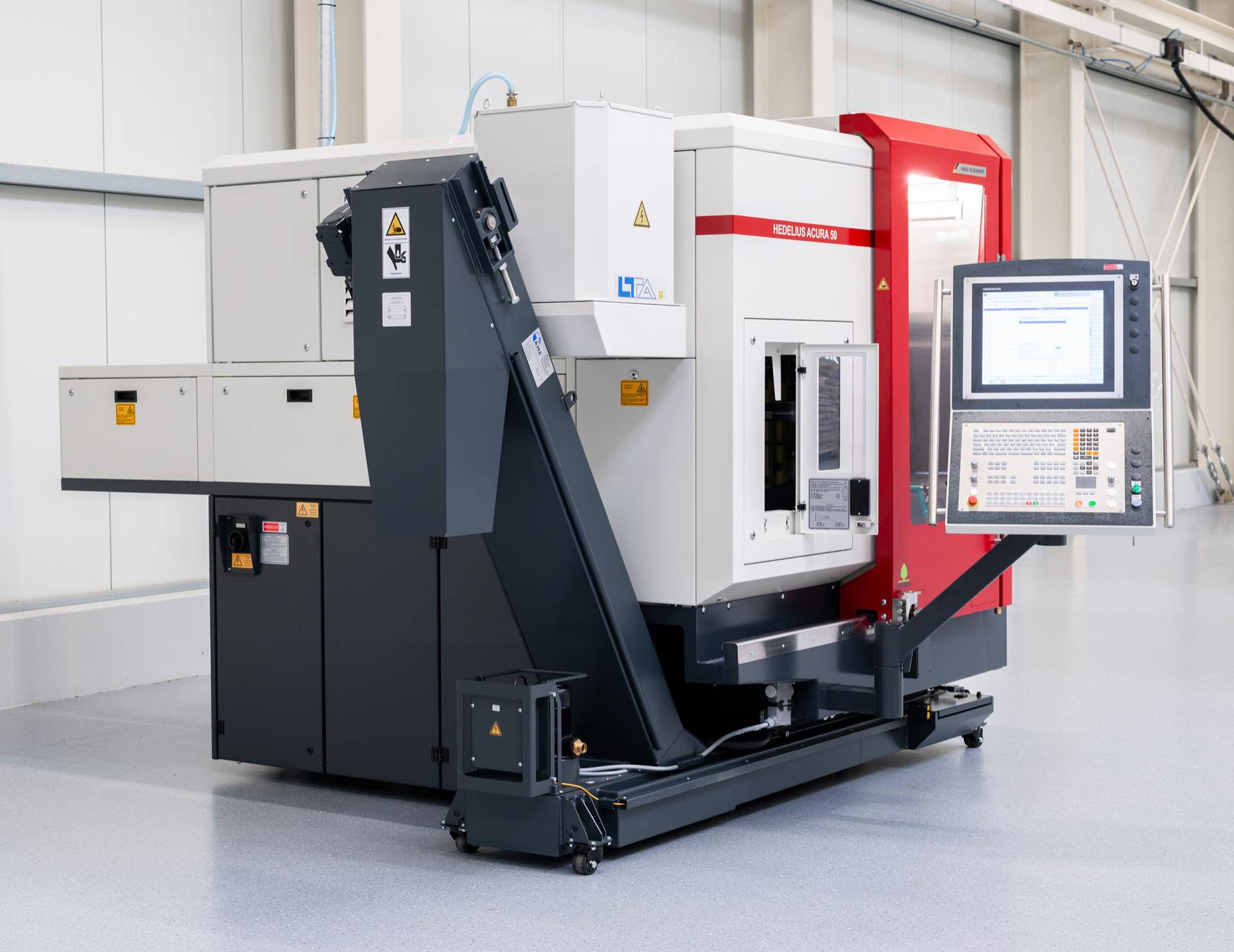

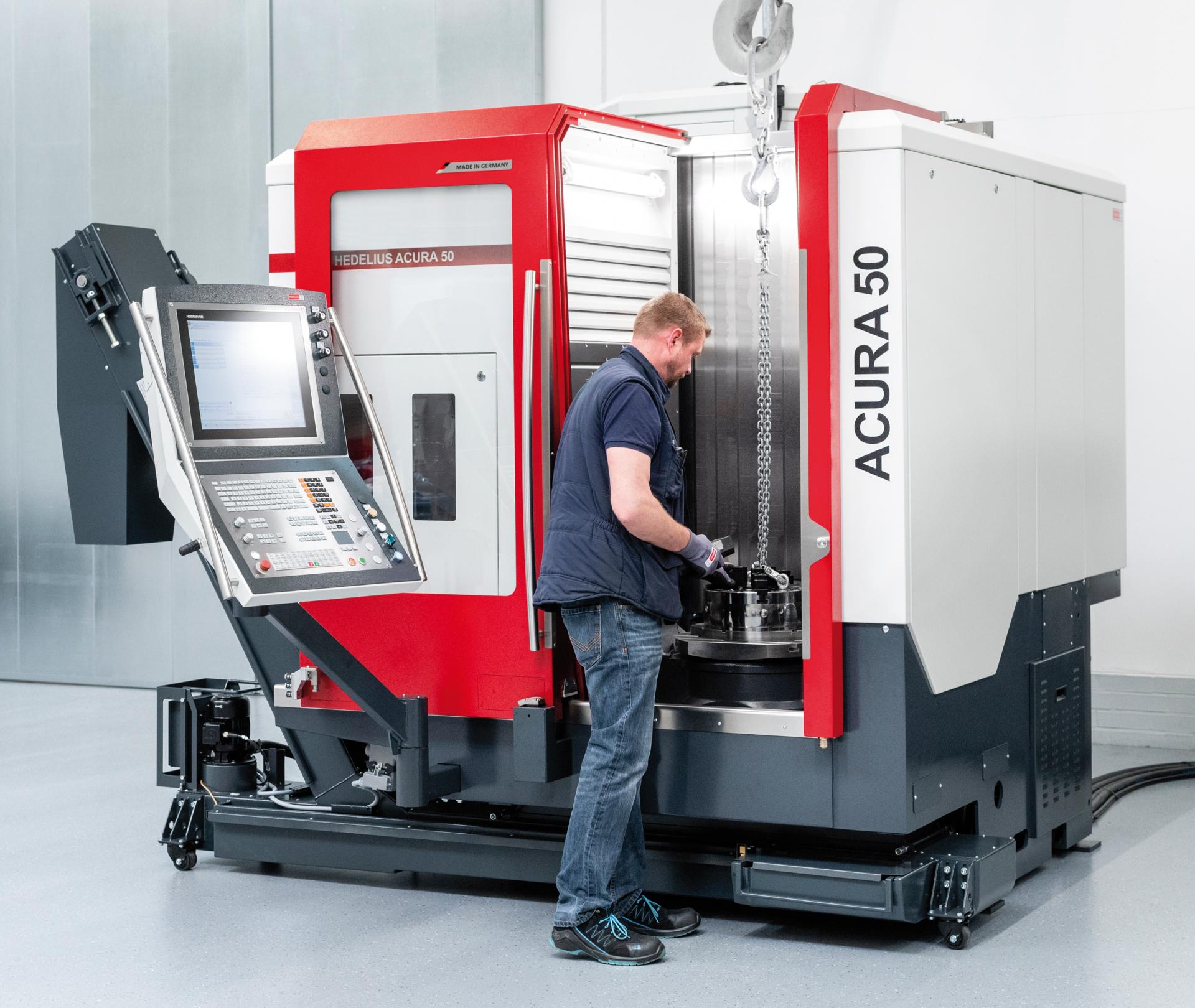

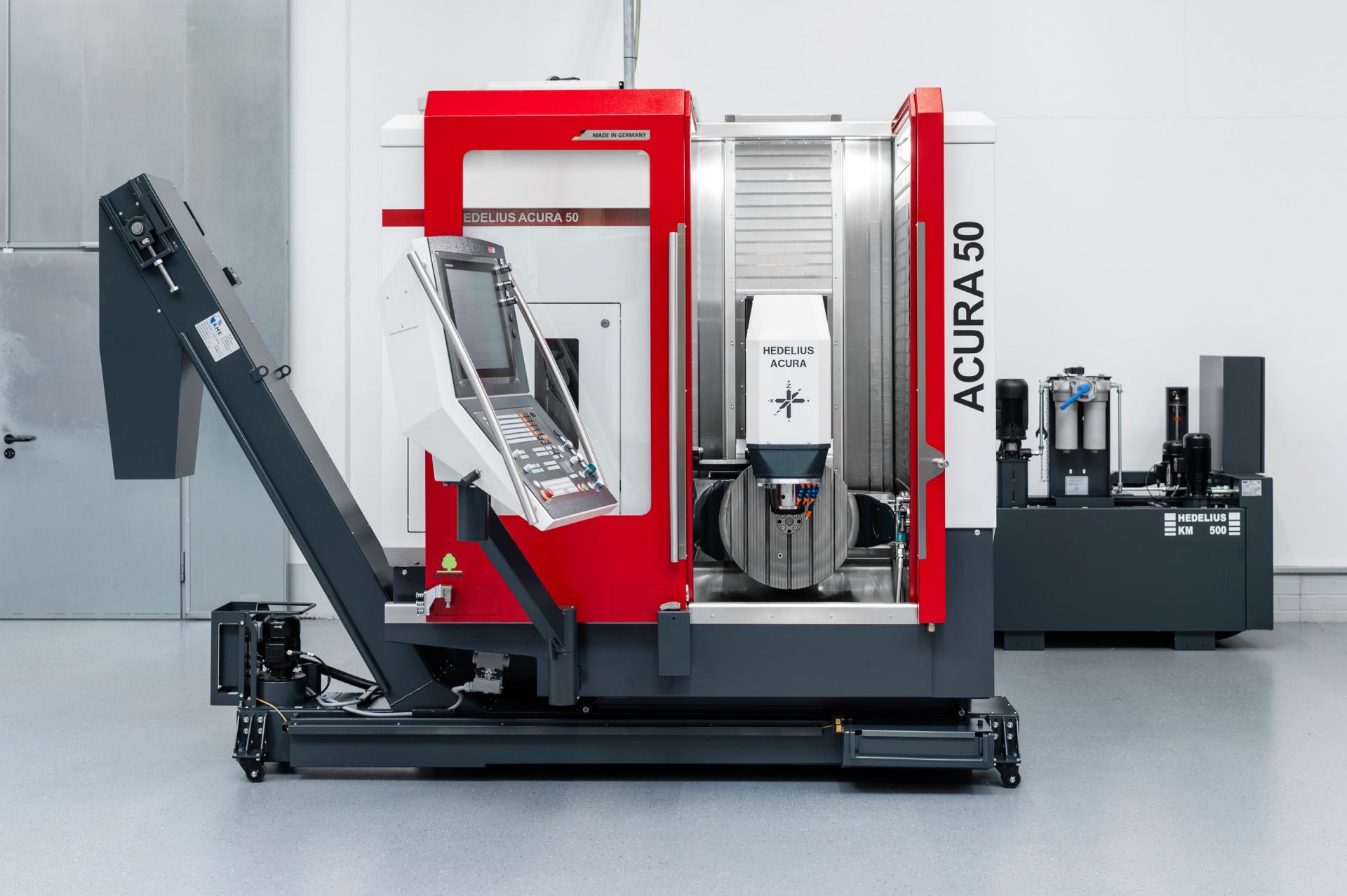

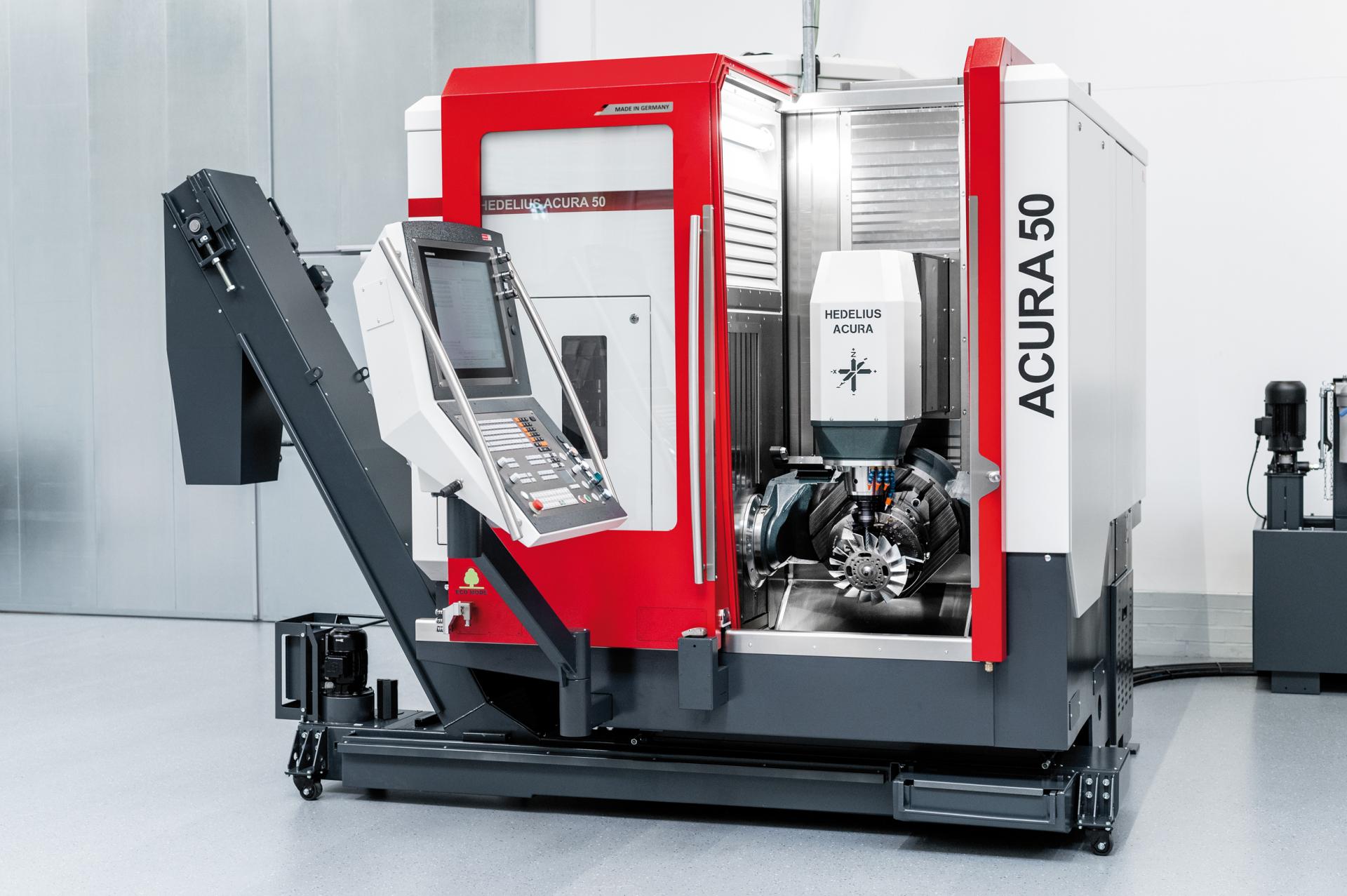

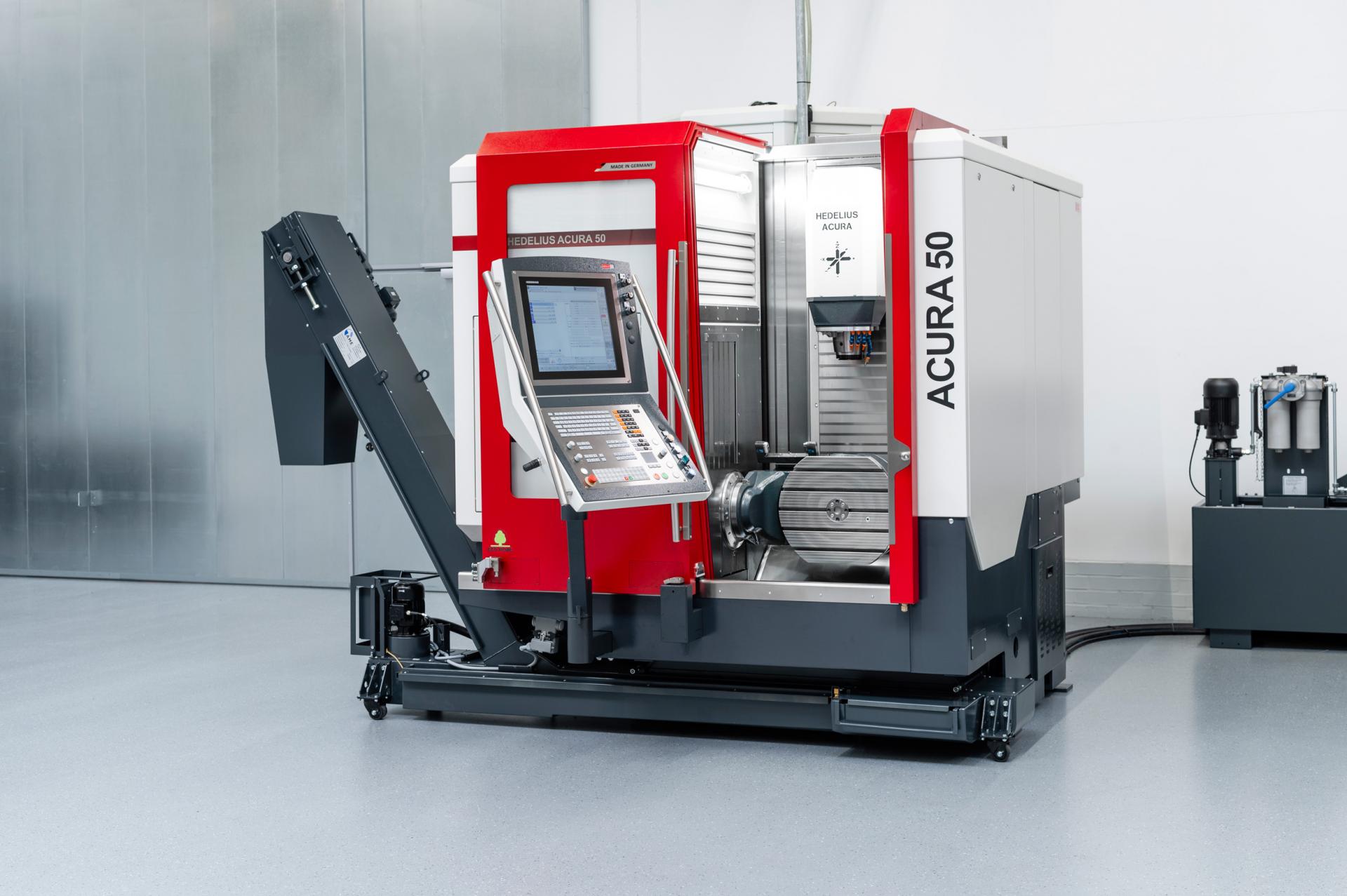

HEDELIUS ACURA 50
HEDELIUS ACURA 50
Description
5 axis machining center
Specifications
| Manufacturer | HEDELIUS |
| Model | ACURA 50 |
| Condition | New |
| CNC Control | HEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE |
| Spindle tool size | ISO-40 |
| Spindle speed | 14.000 RPM (opt. 18.000/24.000) |
| Spindle motor power (cont/30 min) | 22 kW (opt. 29/30/35) |
| X axis | 500 mm |
| Y axis | 550 mm |
| Z axis | 550 mm |
| Table dimensions | Ø 500 x 430 mm |
| Max load allowed on table | 300 Kg |
| Max diameter of the workpiece | Ø 550 mm |
| Tilting angle of the table | +30/-115 degrees |
| X / Y / Z axis rapid feedrates | 40/40/40 m/min |
| Tool type | SK40 / BT40 / HSK A63 |
| ATC capicity | 55 positions (opt. 80/235/319) |
| Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
