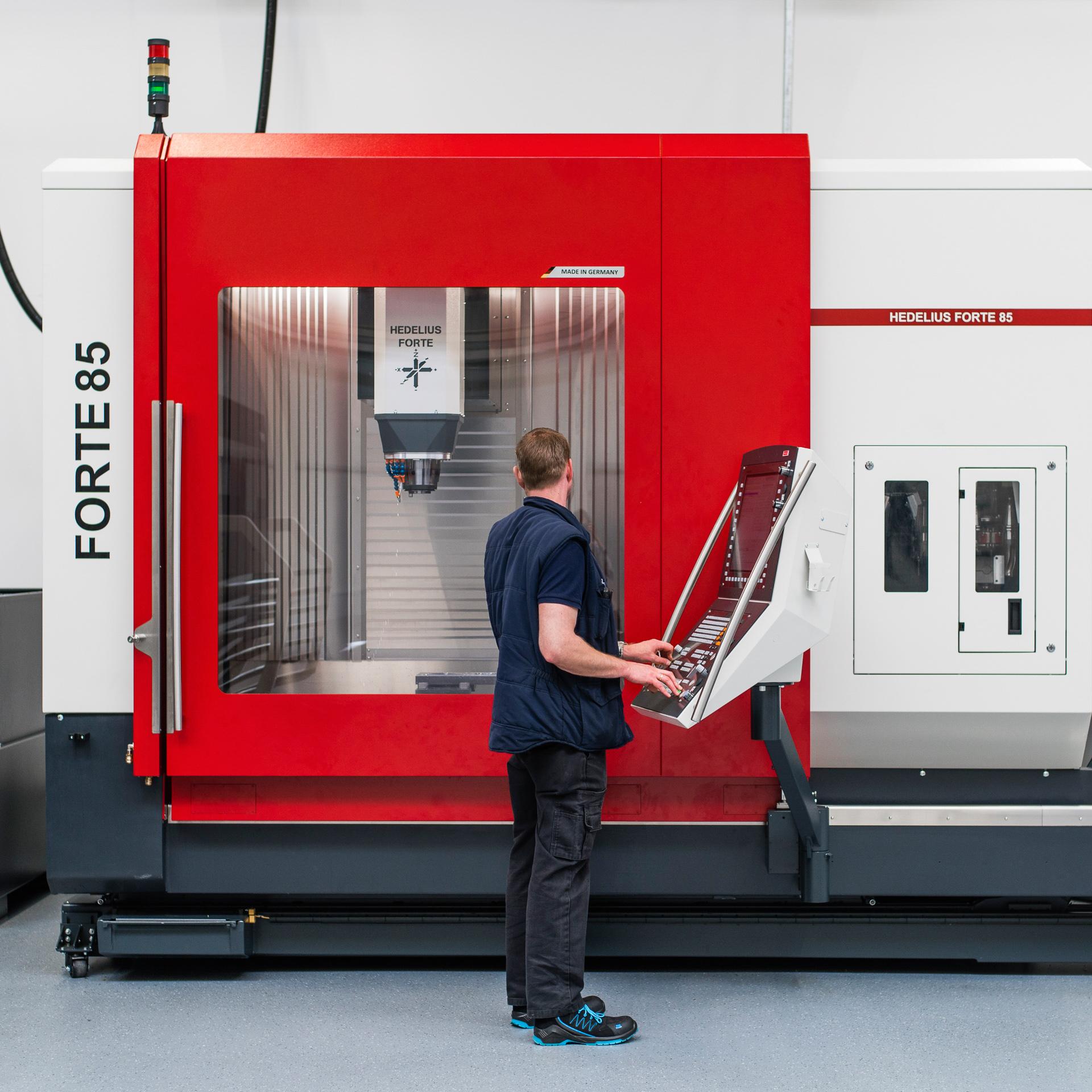

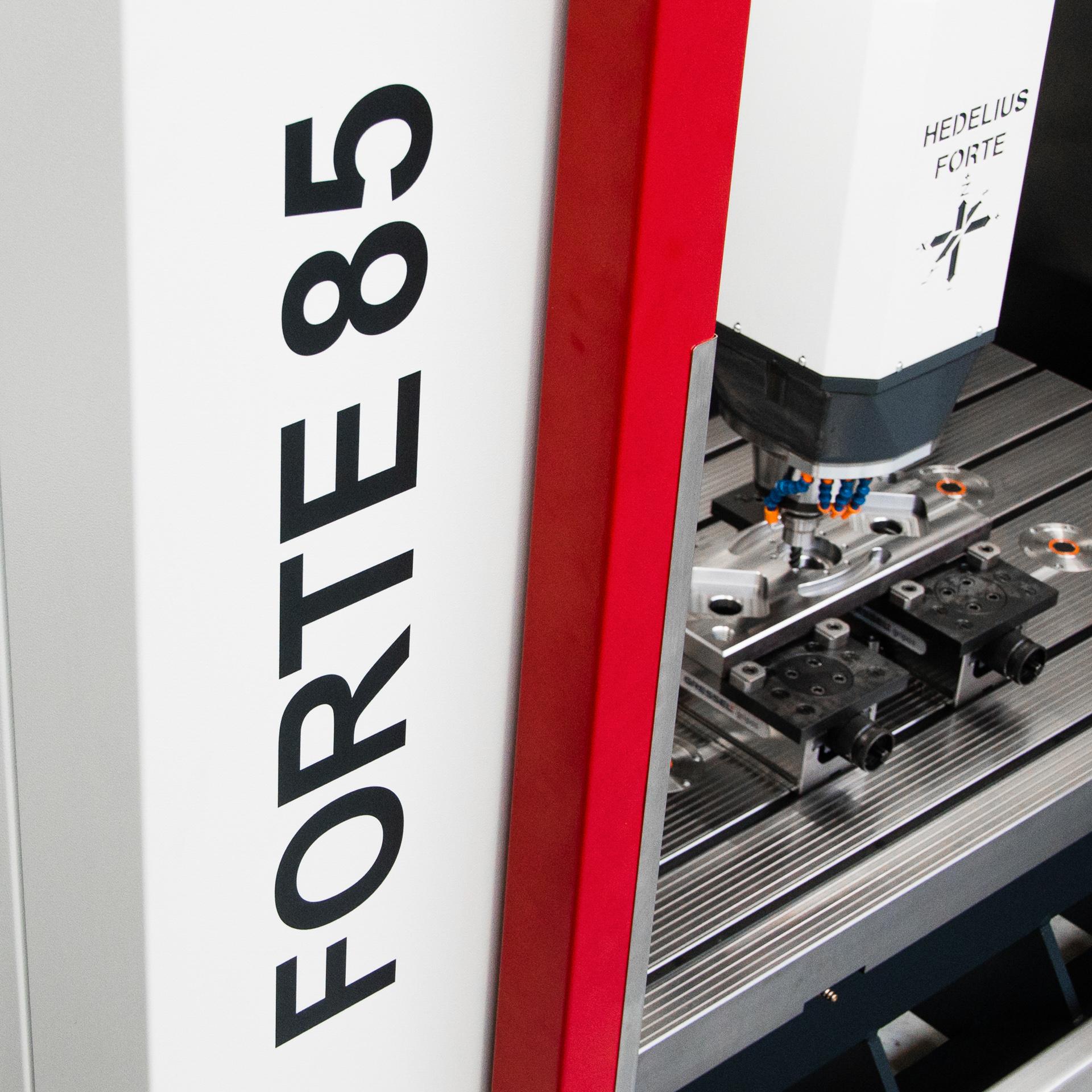

HEDELIUS FORTE 85 SINGLE 1620
HEDELIUS FORTE 85 SINGLE 1620
Description
3 axis Vertical machining center
Specifications
| Manufacturer | HEDELIUS |
| Model | FORTE 85 SINGLE 1620 |
| Condition | New |

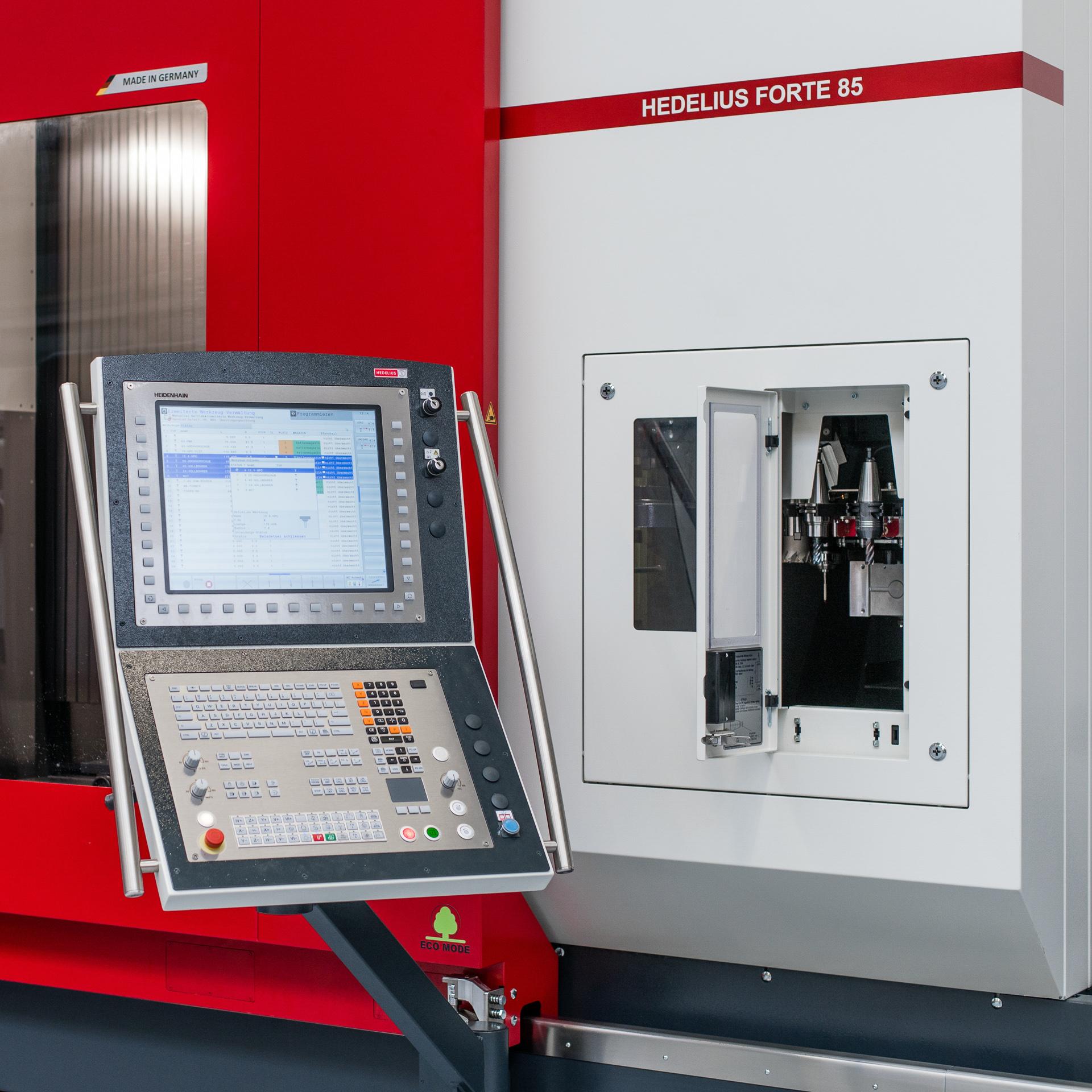

| CNC Control | HEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE |
| Spindle tool size | ISO-40 |
| Spindle speed | 14.000 RPM (opt. 15.000/18.000/24.000) |
| Spindle motor power (cont/30 min) | 22,00 kW (Opt. 30,00/35,00/37,00/50,00) |
| X axis | 1.620 mm |
| Y axis | 850 mm |
| Z axis | 700 mm |

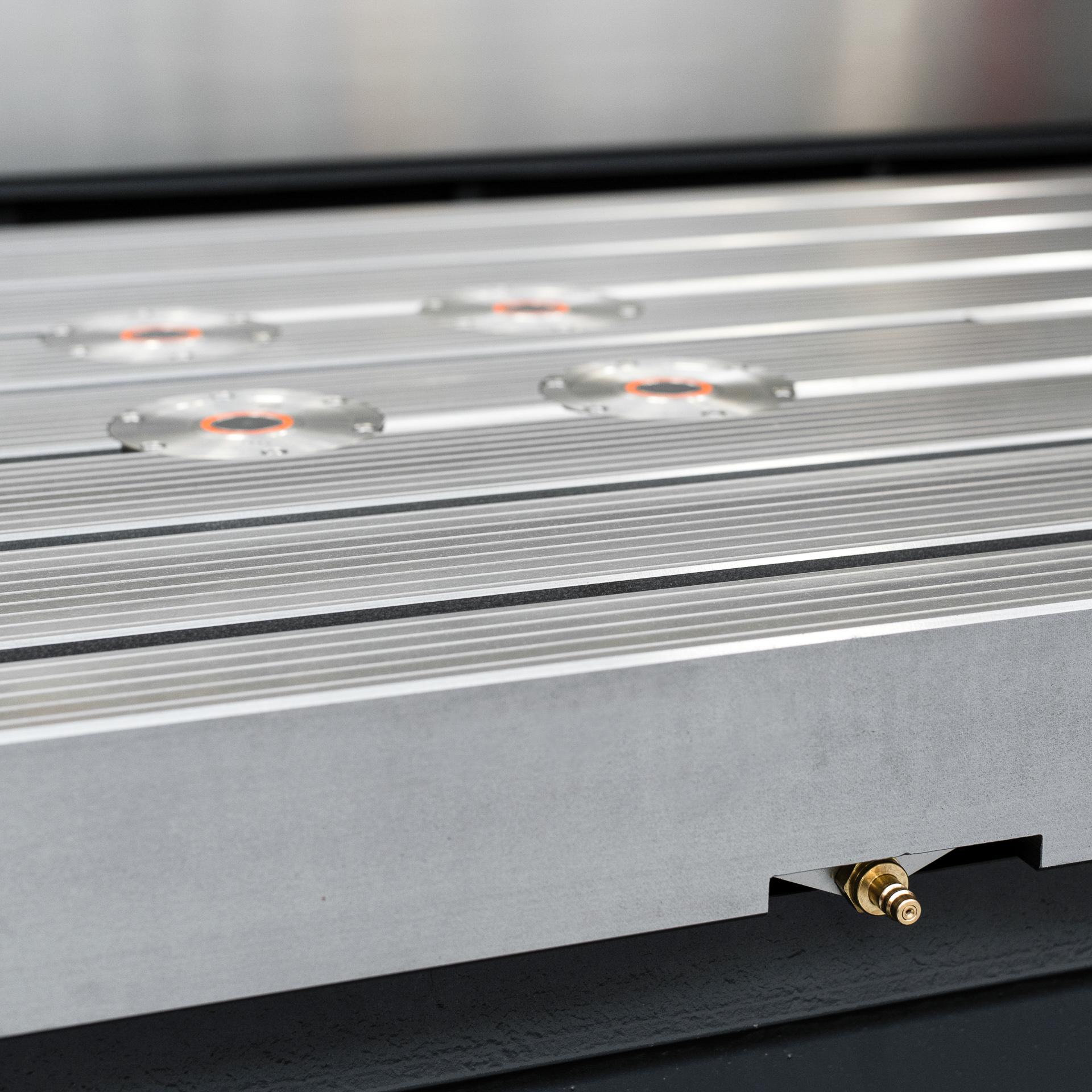

| Table dimensions | 1.800 x 900 mm |
| Max load allowed on table | 1.500/2.000 kg |
| X / Y / Z axis rapid feedrates | 40/40/40 m/min |
| Tool type | SK40 / BT40 / HSK A63 |

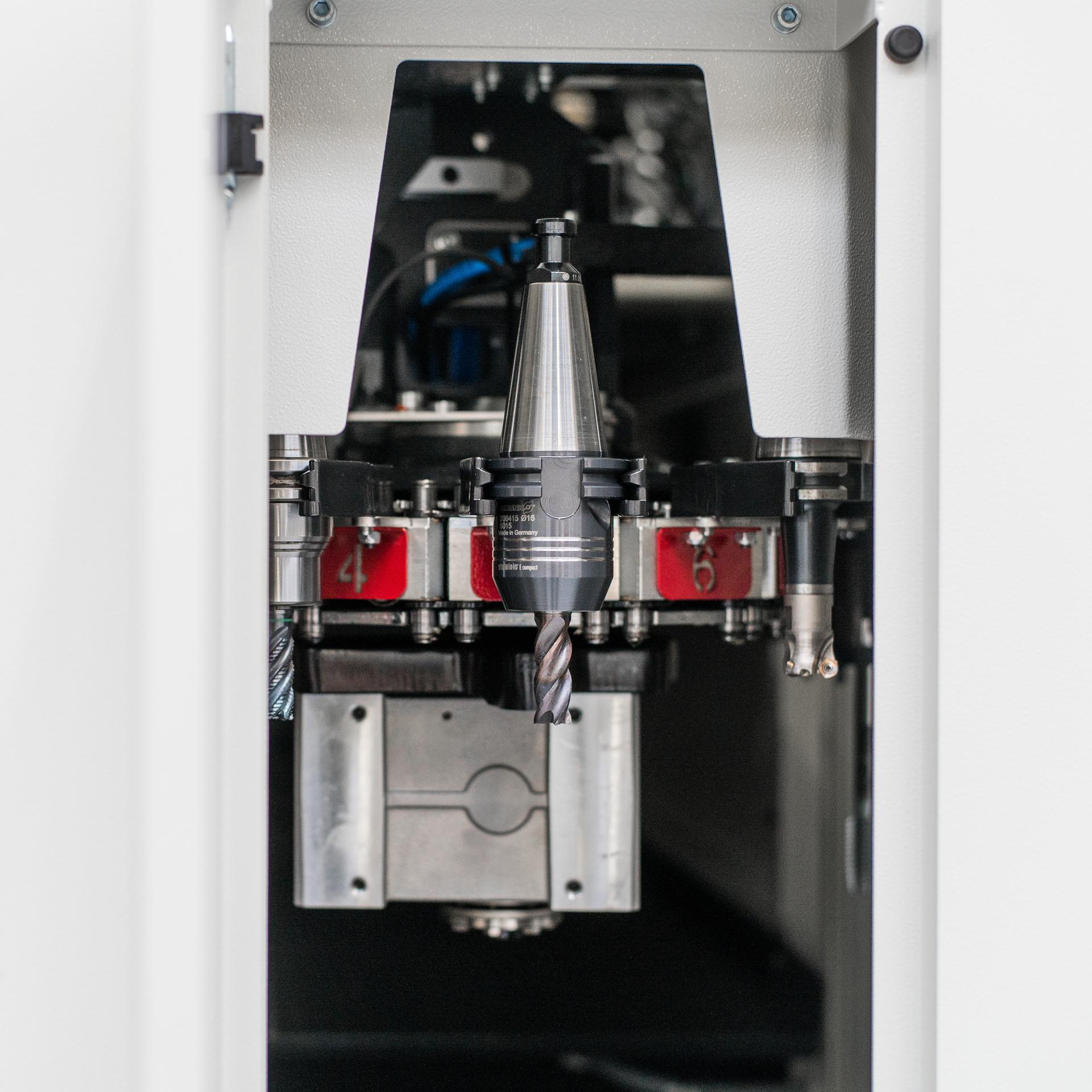

| ATC capicity | 80 positions (opt. 260 / 344) |
| Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
