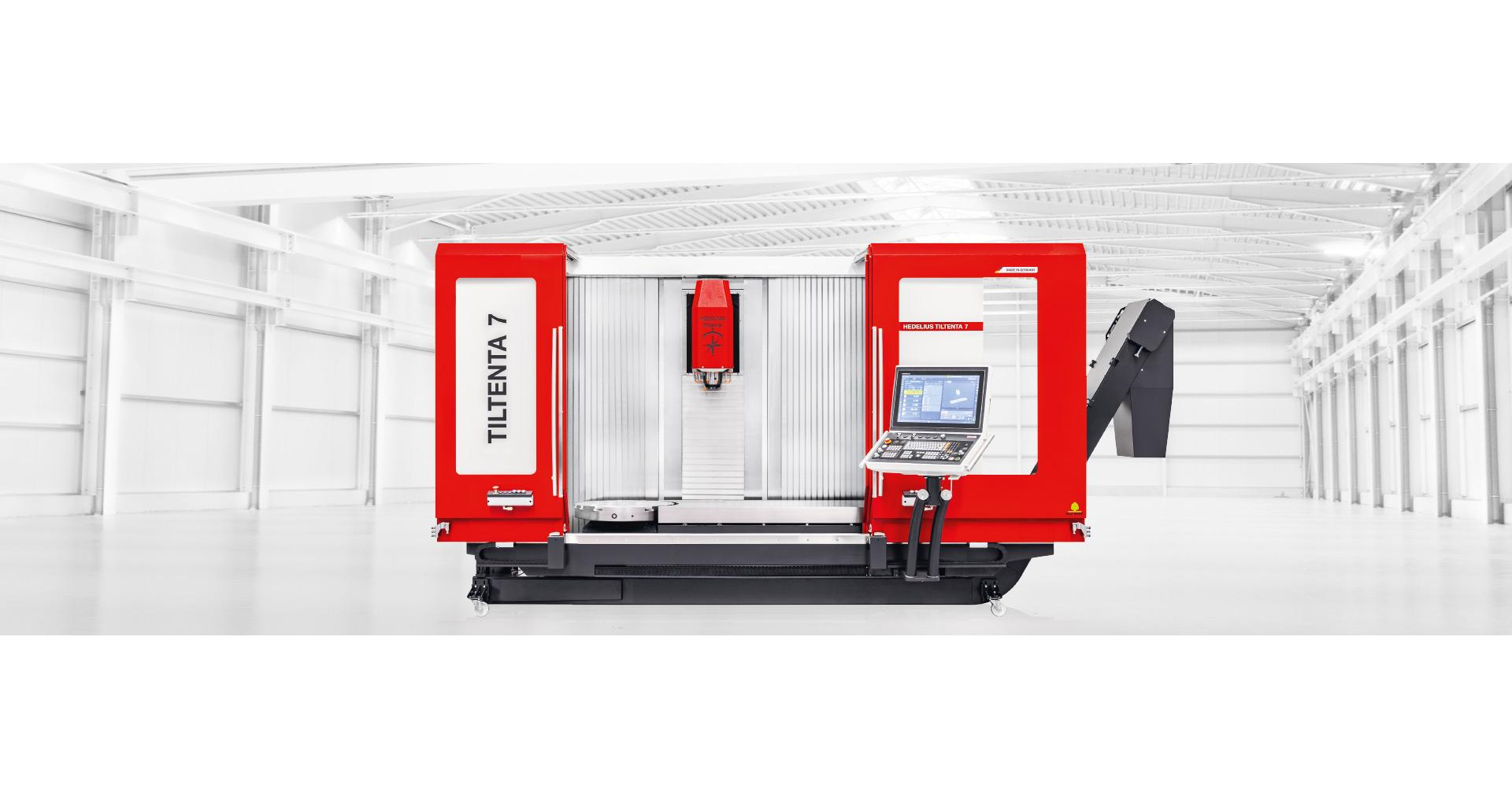

| Manufacturer | HEDELIUS |
| Model | TILTENTA 7-2000 NEO |
| Condition | New |
| CNC Control | HEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE |
| Spindle tool size | ISO-40 |
| Spindle speed | 14.000 RPM (opt. 18.000) |
| Spindle motor power (cont/30 min) | 22 kW (opt. 29/30/35) |
| X axis | 2.000 mm |
| Y axis | 700 mm |
| Z axis | 735 mm |
| Table dimensions | 2300 × 700 mm |
| Max load allowed on table | 2.000 Kg |
| Rotary table diameter (1R opt) | Ø 700 mm |
| Max weight on rotary table | 800 kg |
| Max diameter of the workpiece on rotary table | Ø 1.050 mm |
| Tilting angle of the spindle head | -5° – +98°/-98° – +98° |
| X / Y / Z axis rapid feedrates | 40/40/40 m/min |
| Tool type | SK40 / BT40 / HSK A63 |
| ATC capicity | 40 positions standard (225/309) |
| Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
