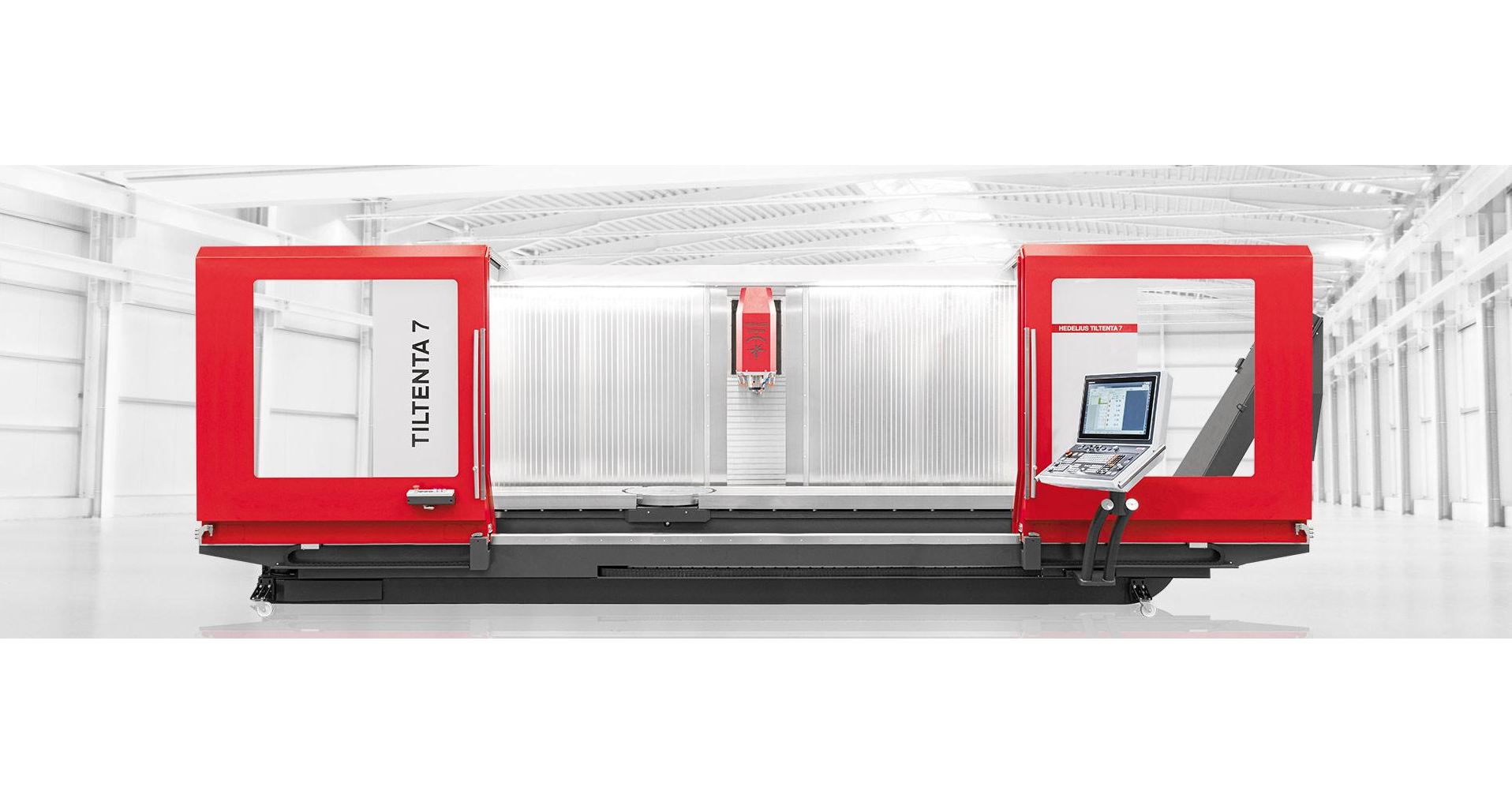

HEDELIUS TILTENTA 7-3600 NEO

HEDELIUS TILTENTA 7-3600 NEO

orCall +39 0522 1536494

Specifications

ManufacturerHEDELIUS
ModelTILTENTA 7-3600 NEO
ConditionNew
CNC ControlHEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE
Spindle tool sizeISO-40
Spindle speed14.000 RPM (opt. 18.000)
Spindle motor power (cont/30 min)22 kW (opt. 29/35)
X axis3.600 mm
Y axis700 mm
Z axis695 mm
Table dimensions4.080 x 700 mm
Max load allowed on table3.000 kg
Rotary table diameter (1R opt)Ø 700 mm
Max weight on rotary table800 kg
Max diameter of the workpiece on rotary tableØ 1.050 mm
Tilting angle of the spindle head-5° – +98°/-98° – +98°
X / Y / Z axis rapid feedrates40/40/40 m/min
Tool typeSK40 / BT40 / HSK A63
ATC capicity45 positions standard (opt. 225/309)
AccessoriesChip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration
