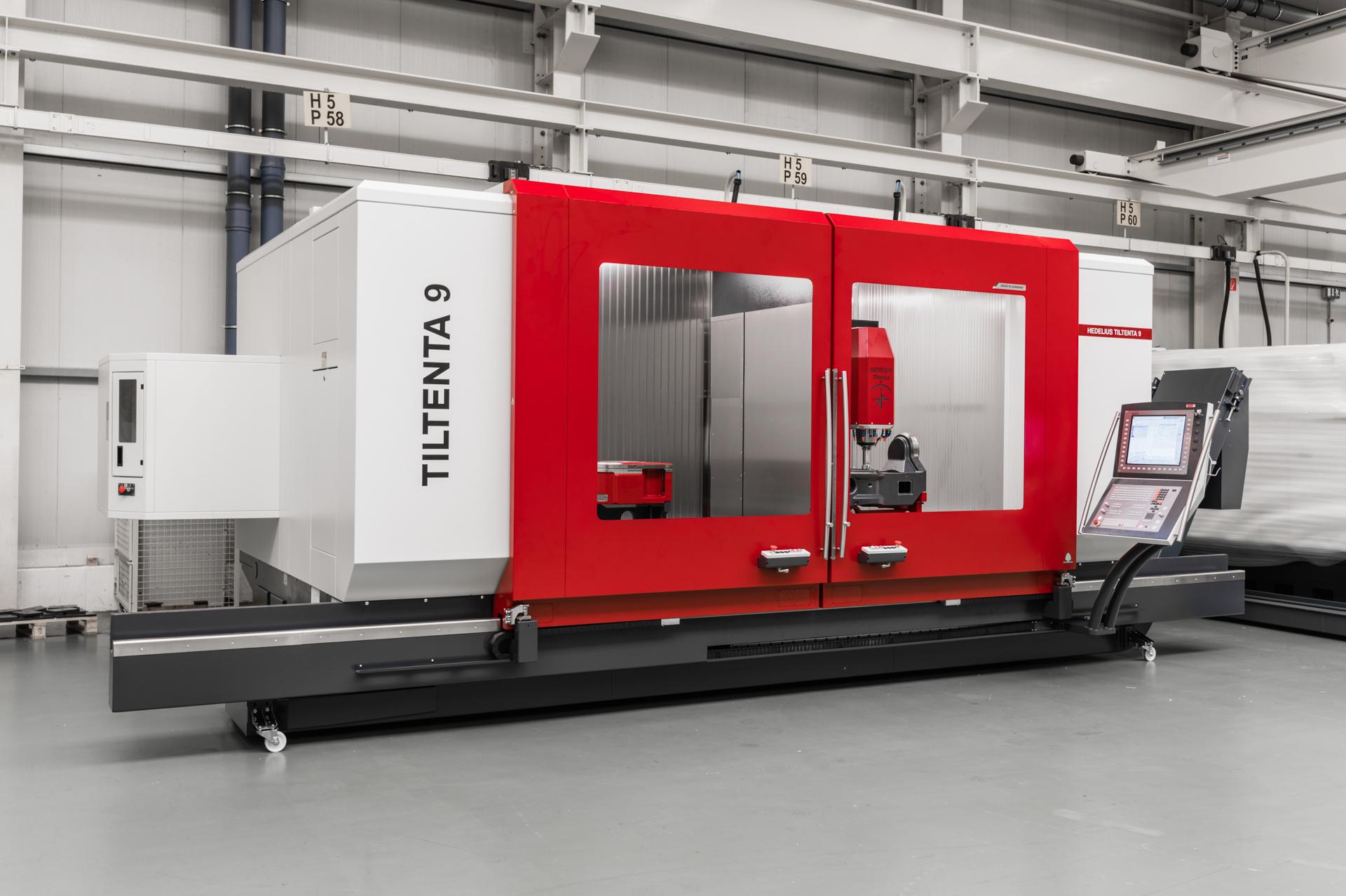

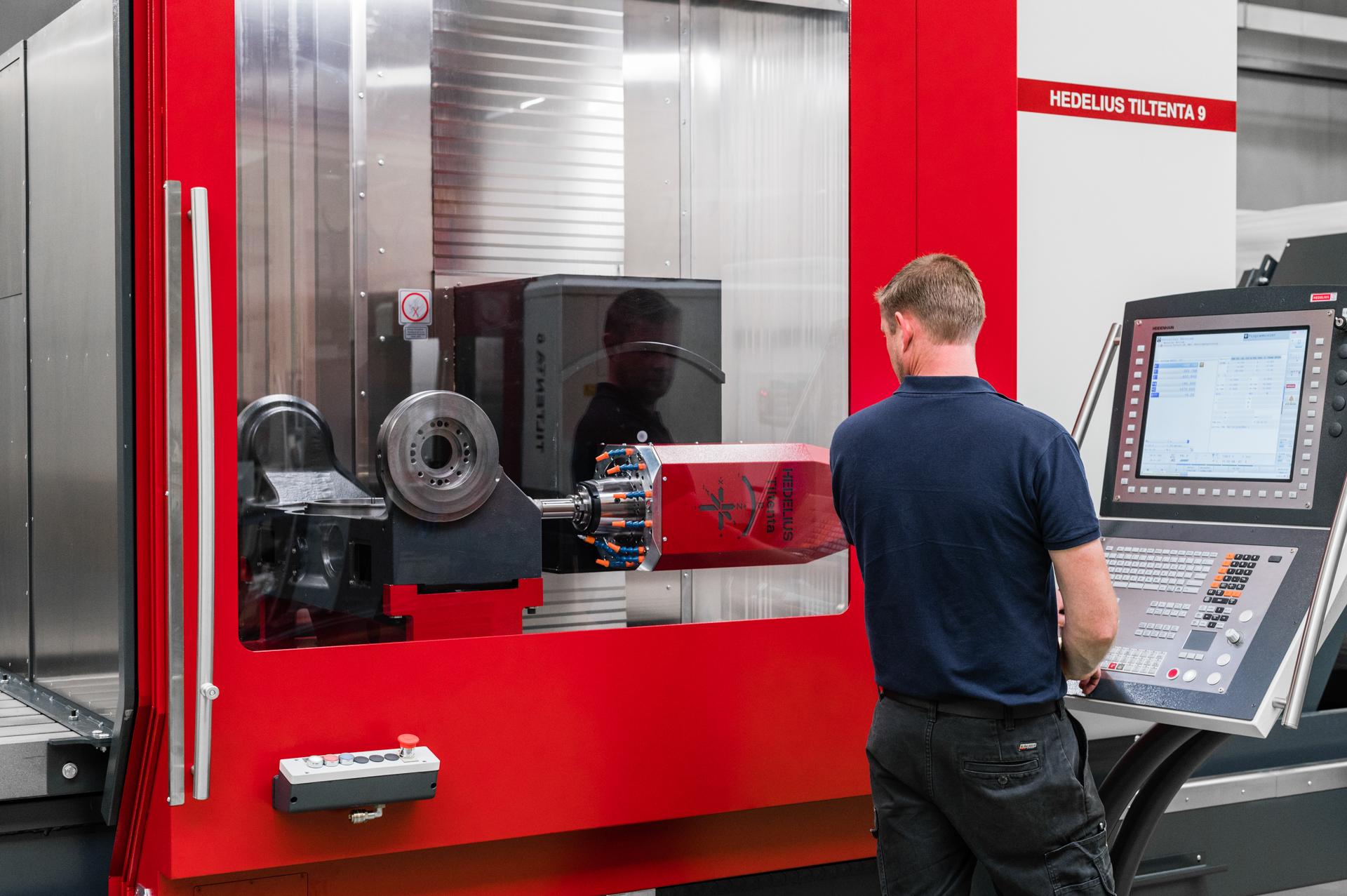

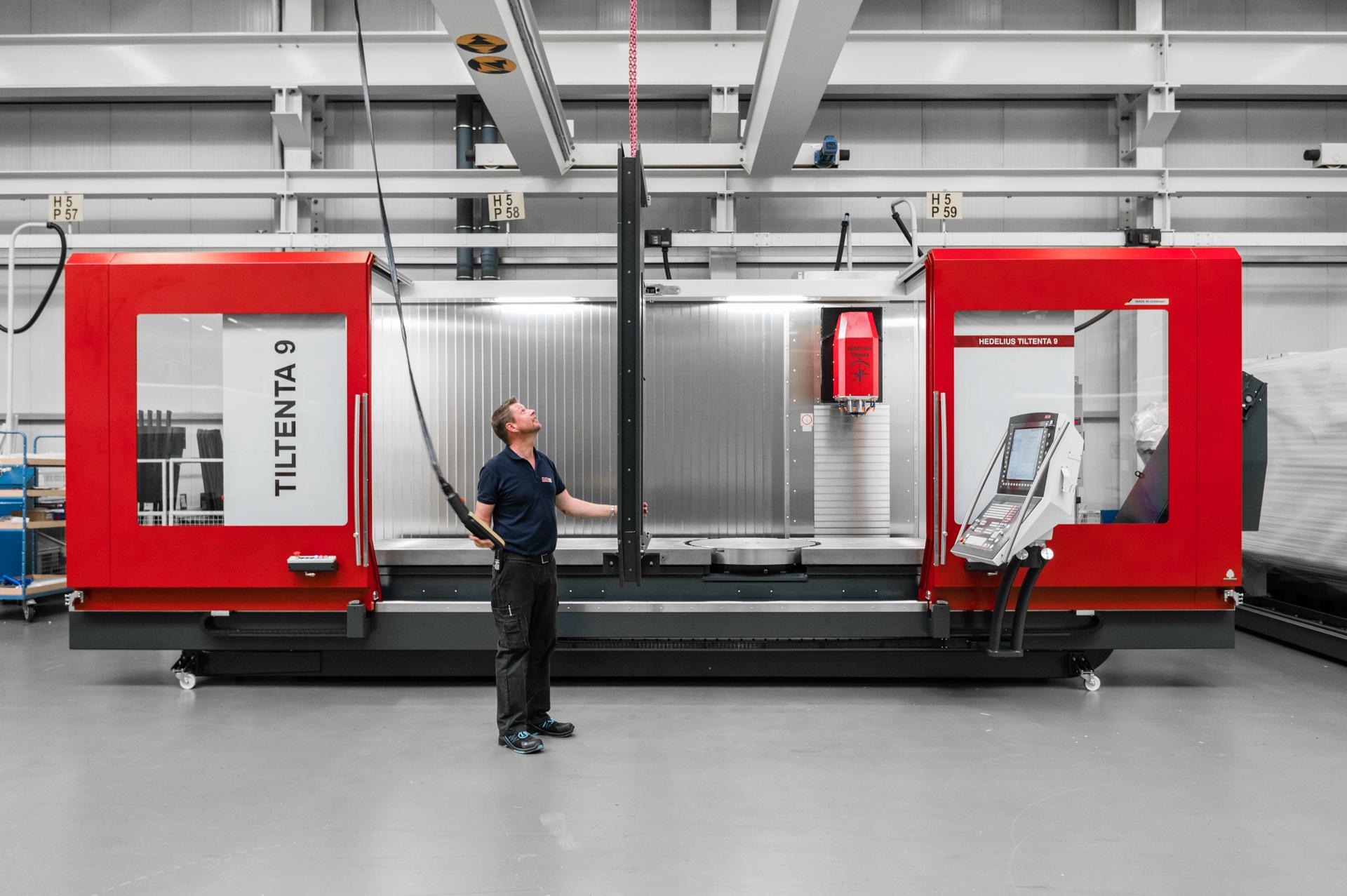

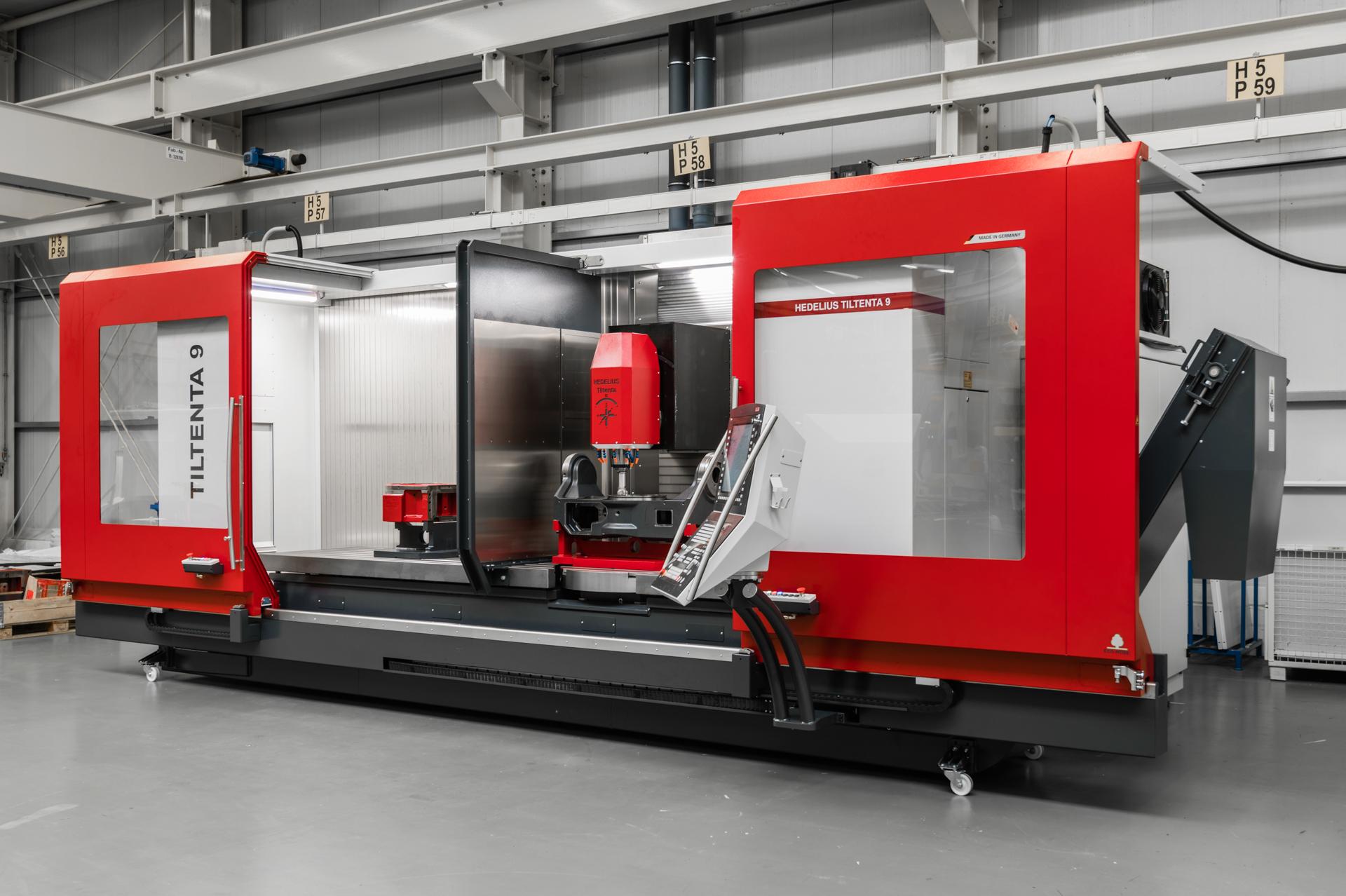

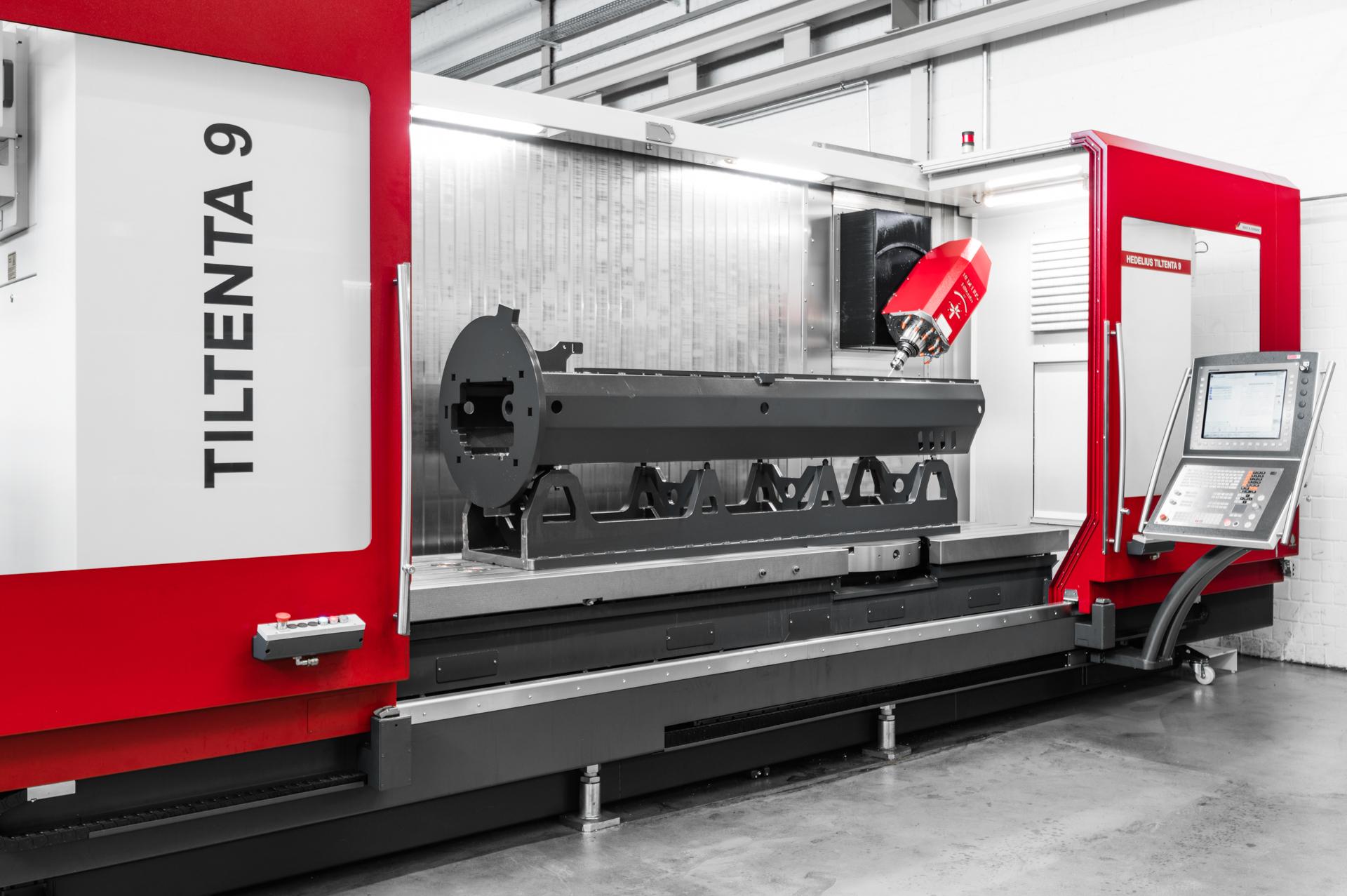

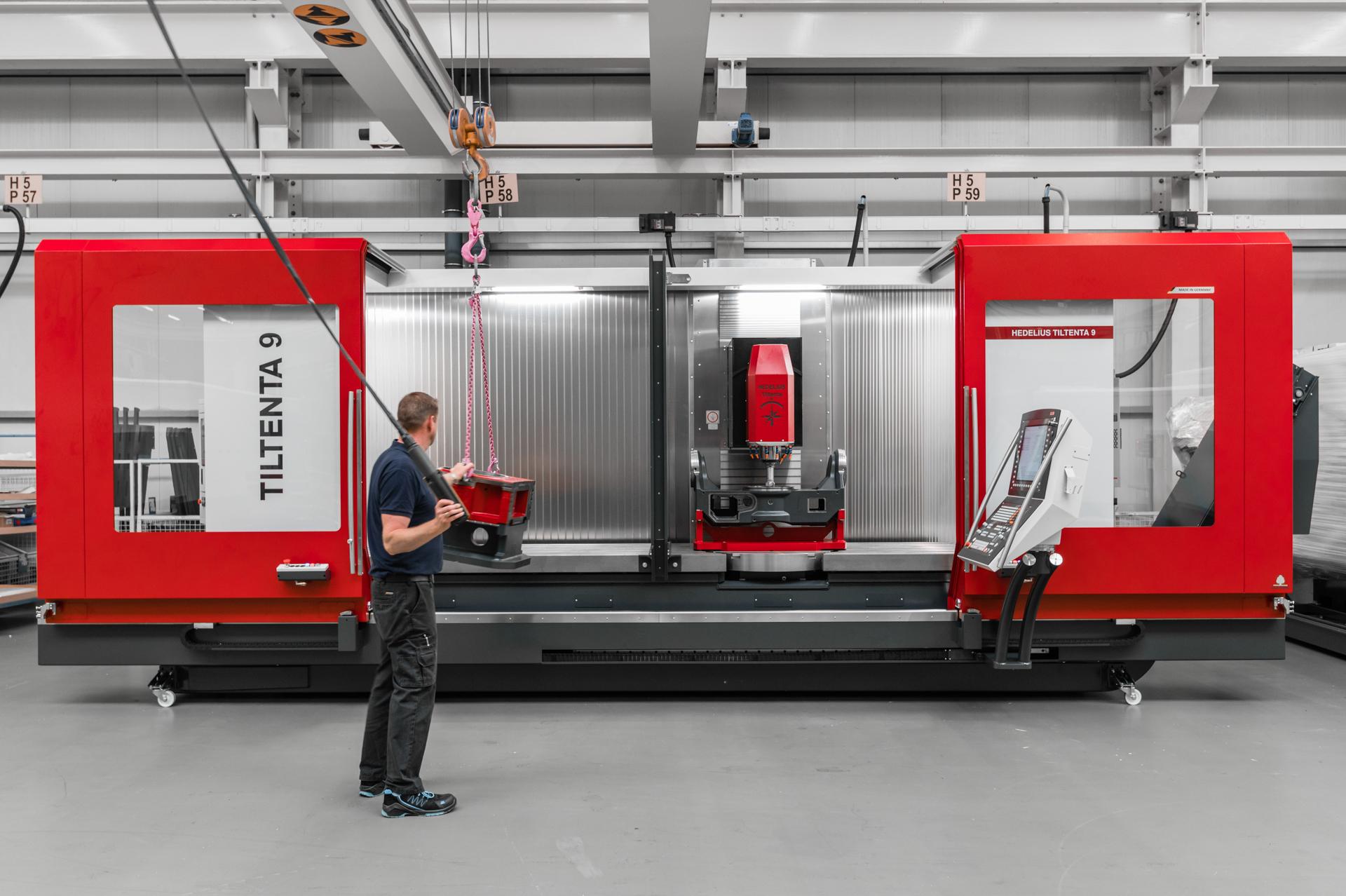

| Manufacturer | HEDELIUS |

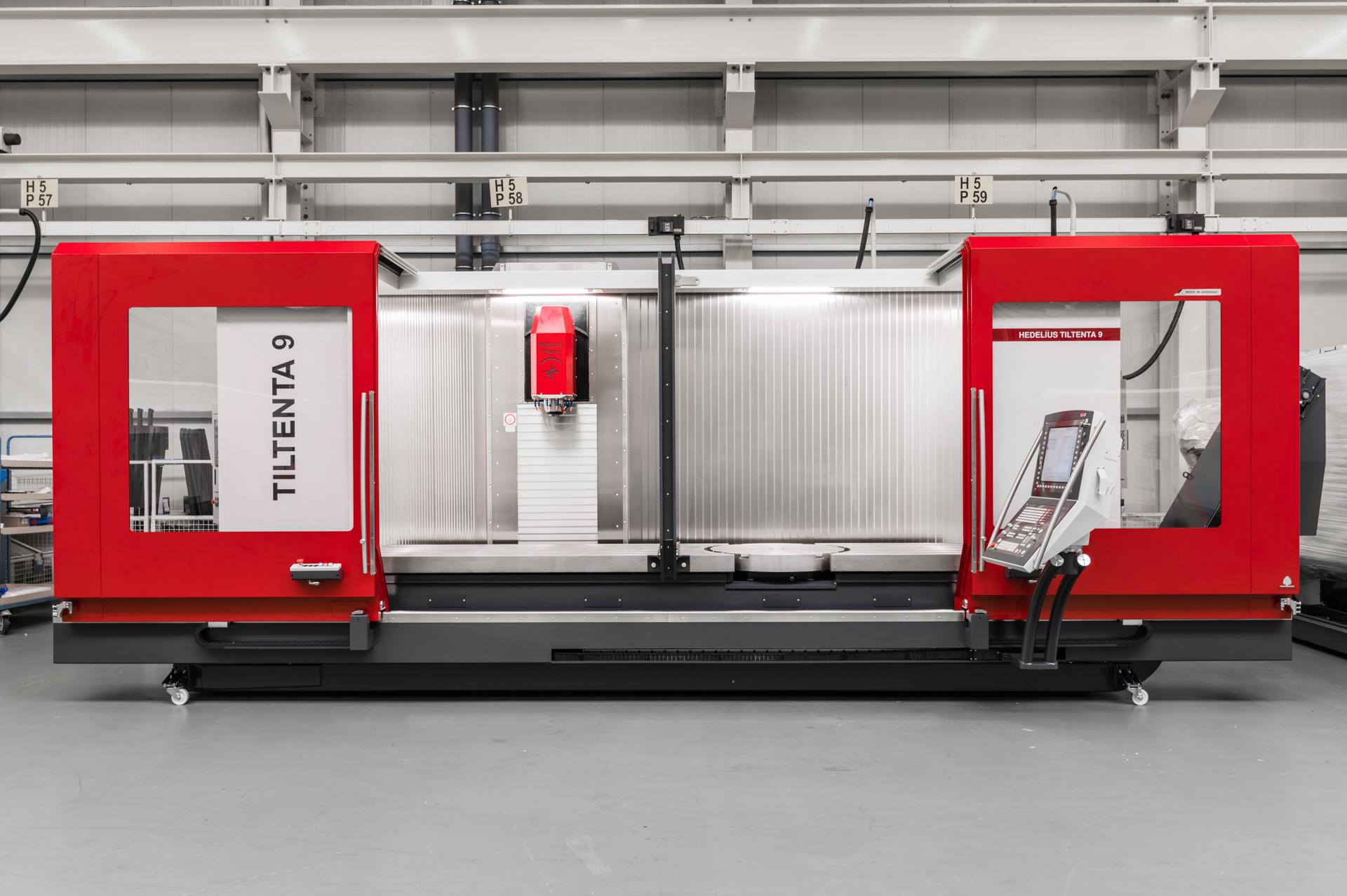

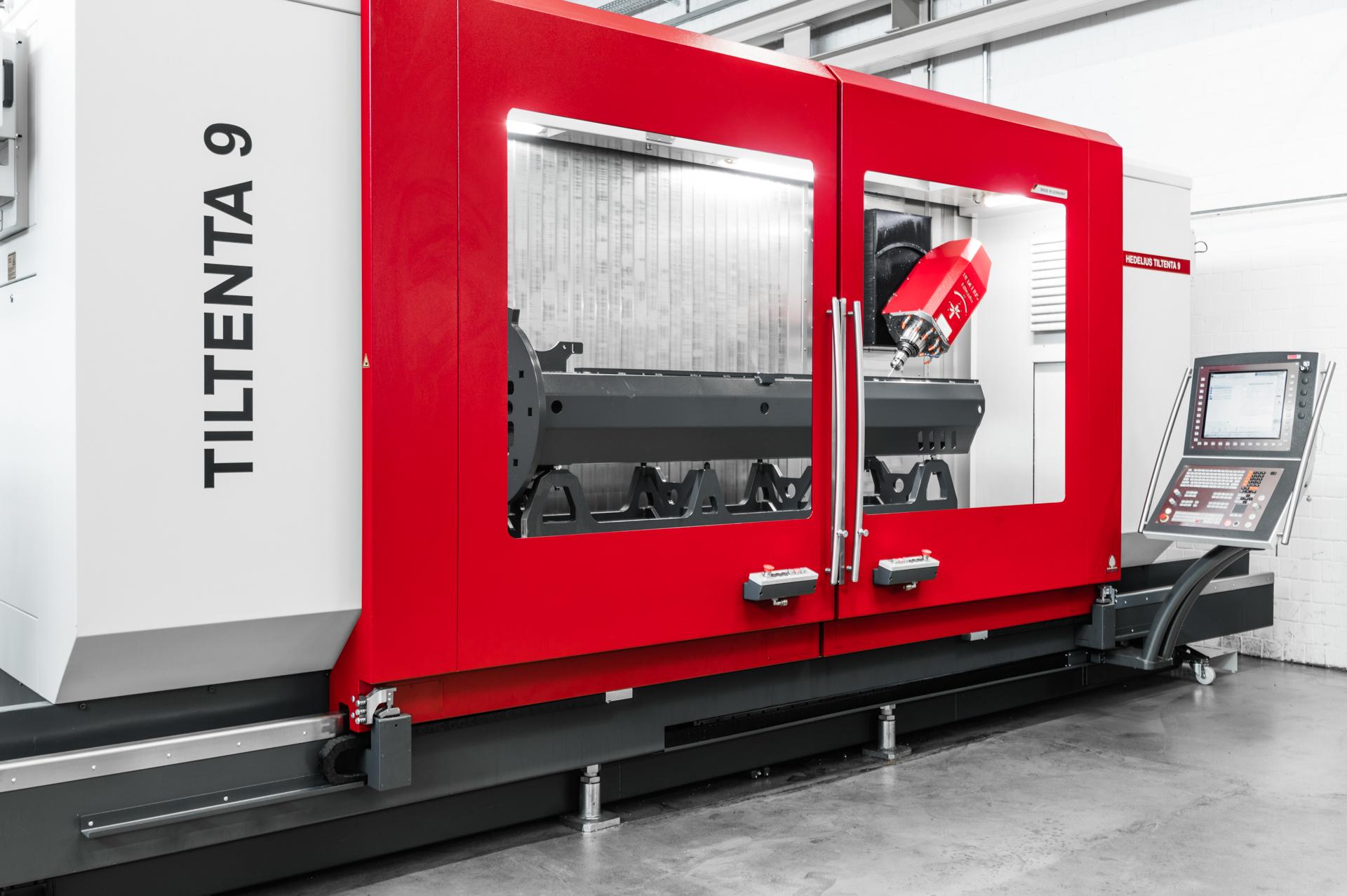

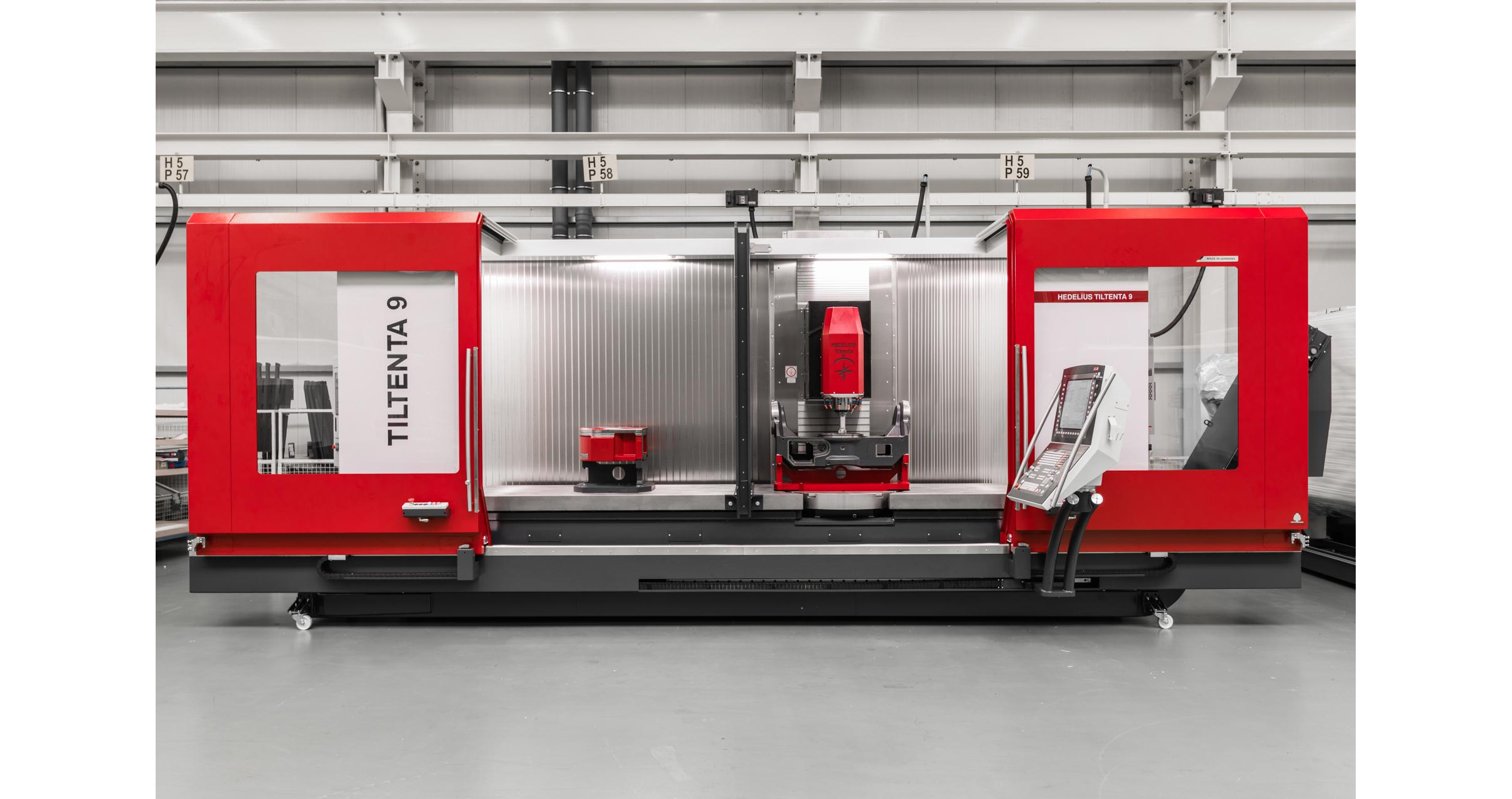

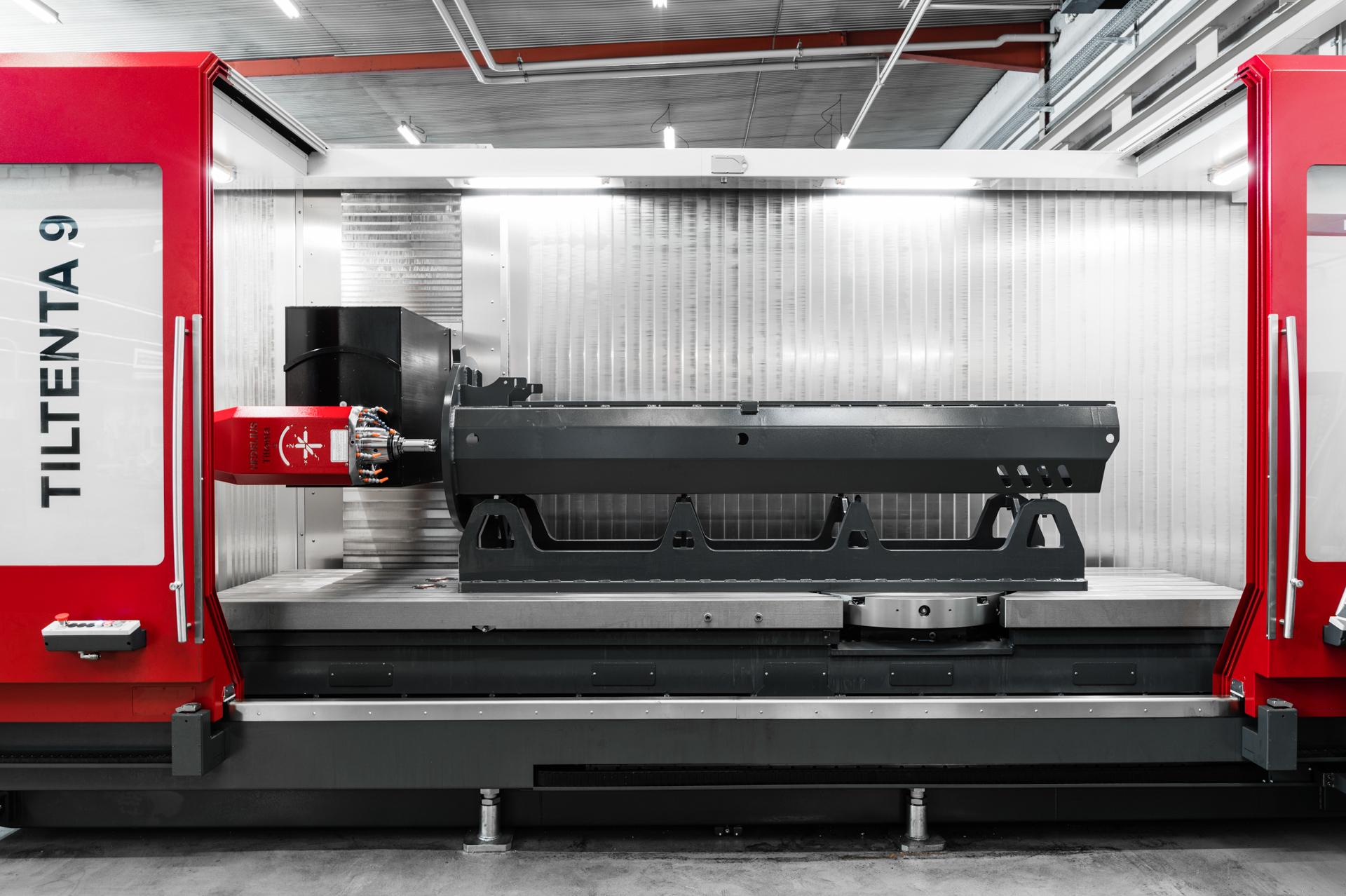

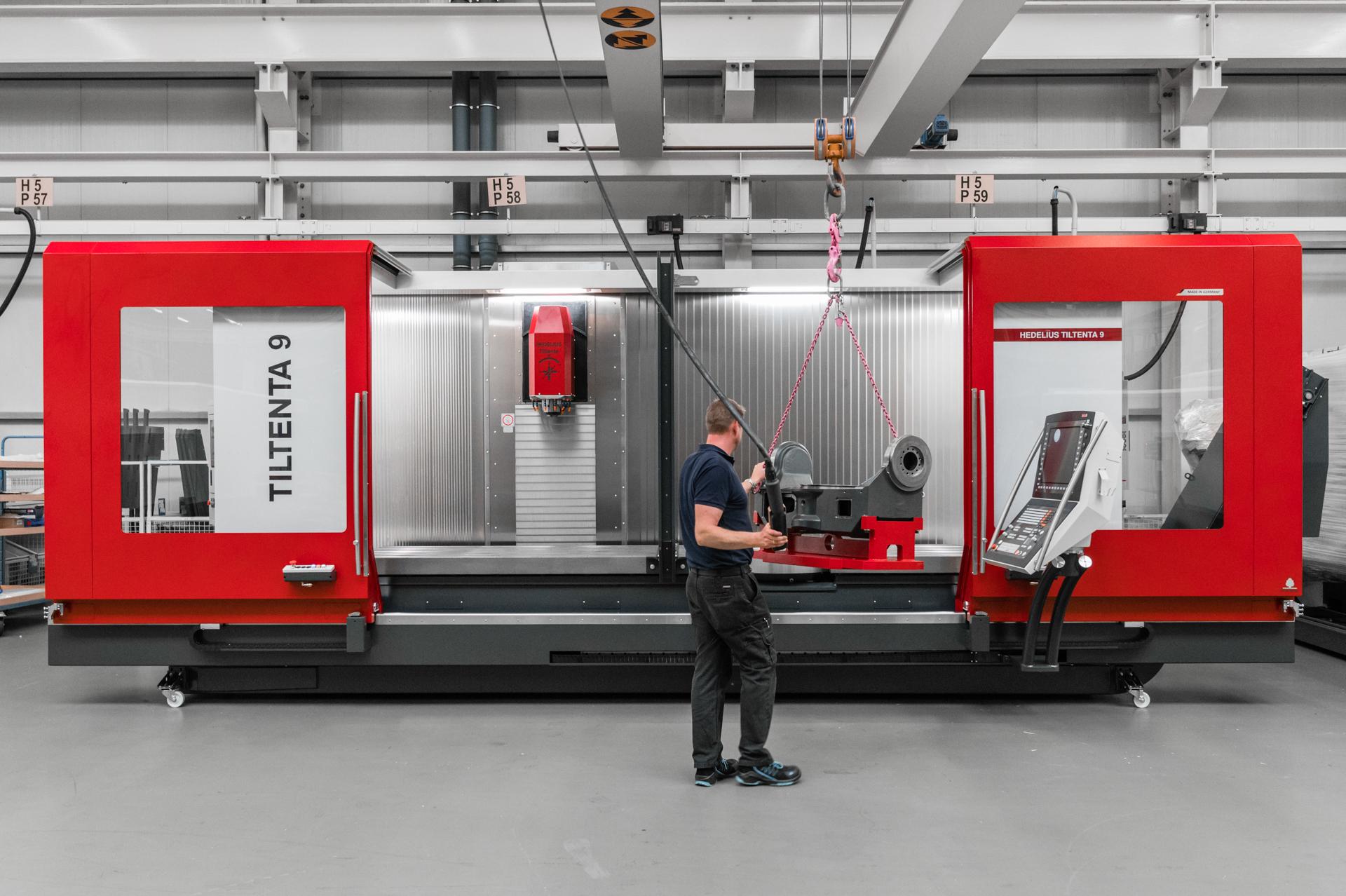

| Model | TILTENTA 9-3600 |
| Condition | New |
| CNC Control | HEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE |
| Spindle tool size | ISO-40 |
| Spindle speed | 14.000 RPM (opt. 15.000/18.000) |
| Spindle motor power (cont/30 min) | 22 kW (opt. 35,00/37,00/50,00) |
| X axis | 3.600 mm |
| Y axis | 900 mm |
| Z axis | 900 mm |
| Table dimensions | 4.080 x 900 mm |
| Max load allowed on table | 4.000 kg |

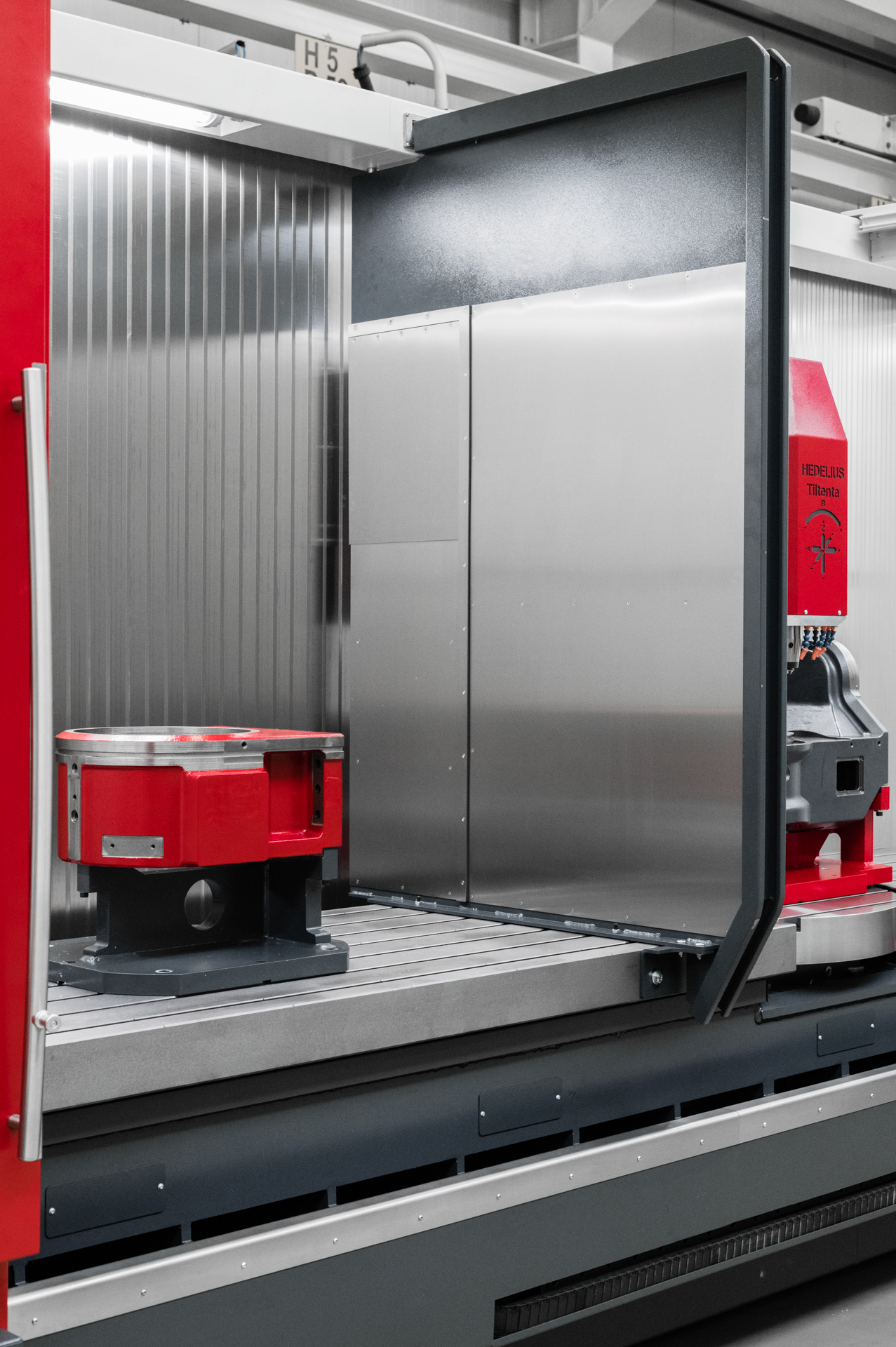

| Rotary table diameter (1R opt) | Ø 900 mm |
| Max weight on rotary table | 1.200/1.800 kg |
| Max diameter of the workpiece on rotary table | Ø 1.250 mm |

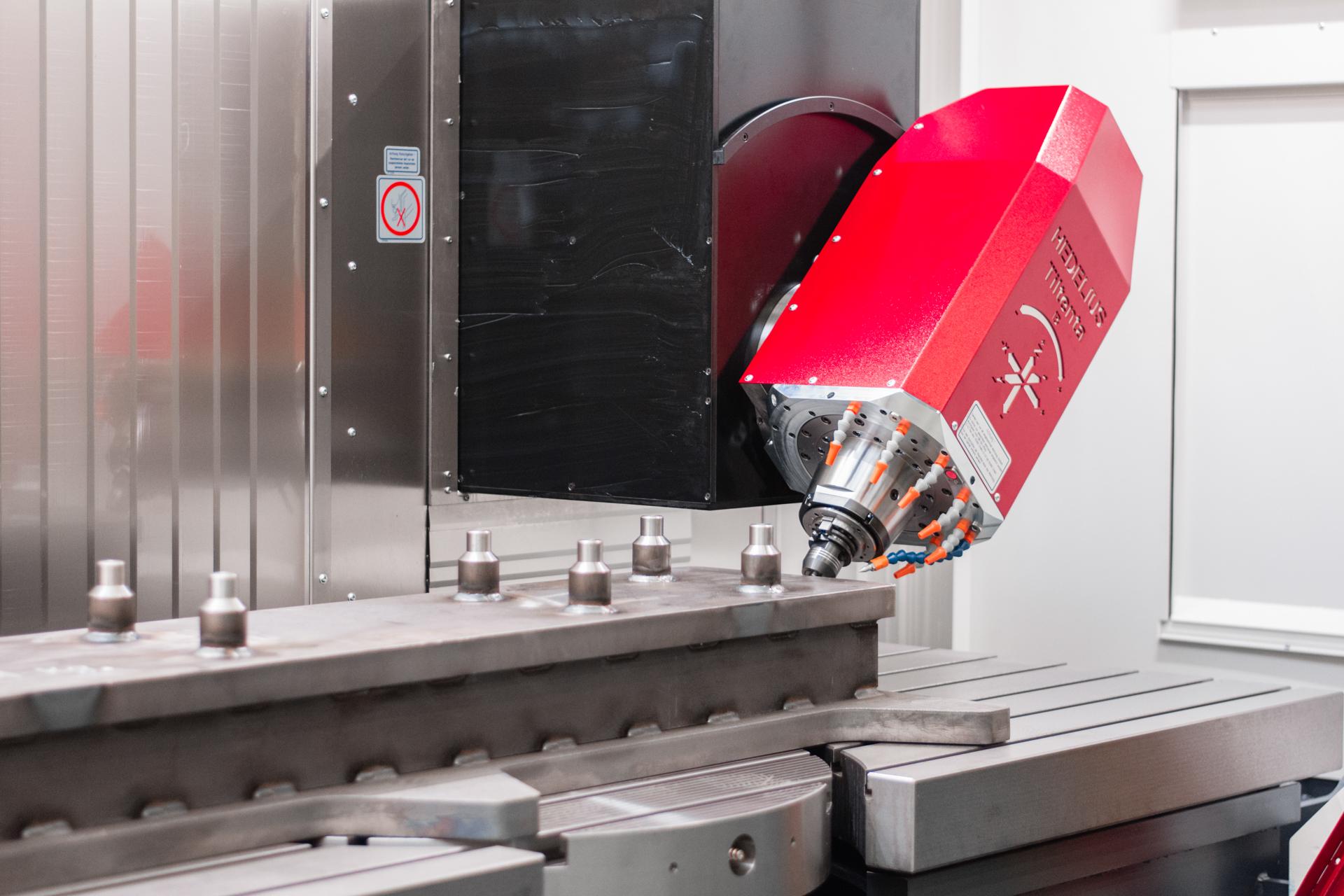

| Tilting angle of the spindle head | -5° – +98°/-98° – +98° |
| X / Y / Z axis rapid feedrates | 40/40/40 m/min |
| Tool type | SK40 / BT40 / HSK A63 |
| ATC capicity | 60 positions standard (opt. 240/324) |

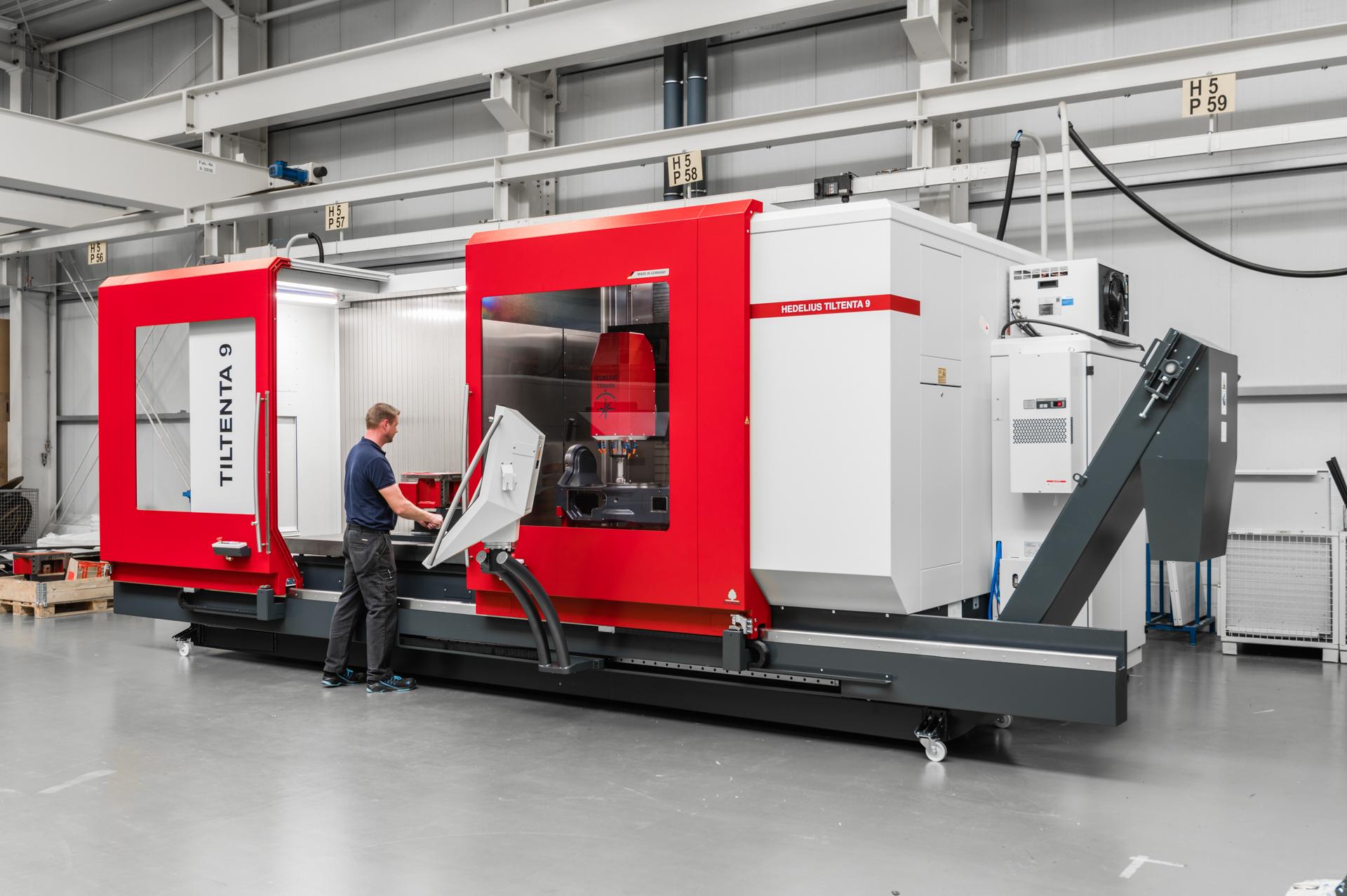

| Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
