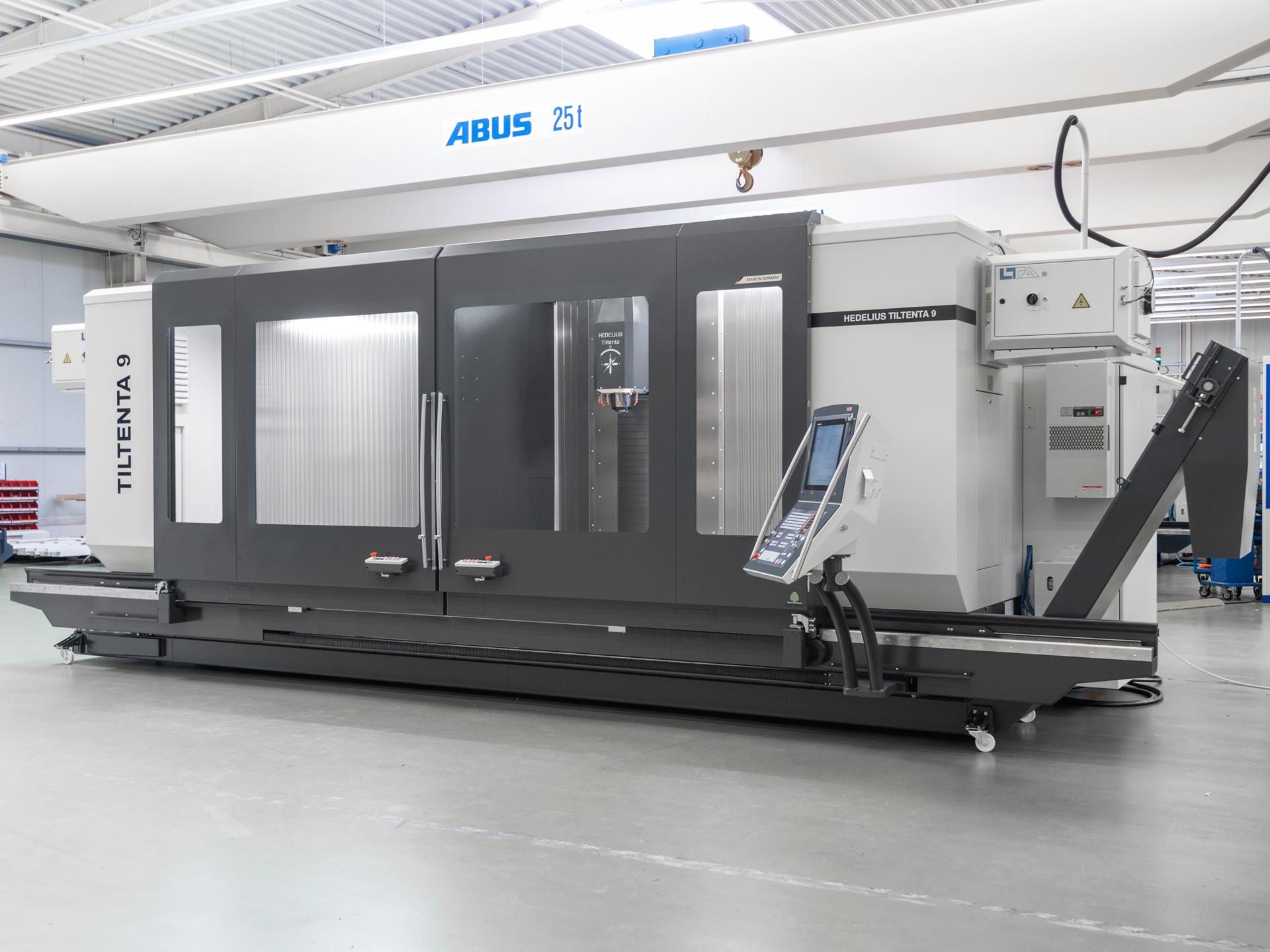

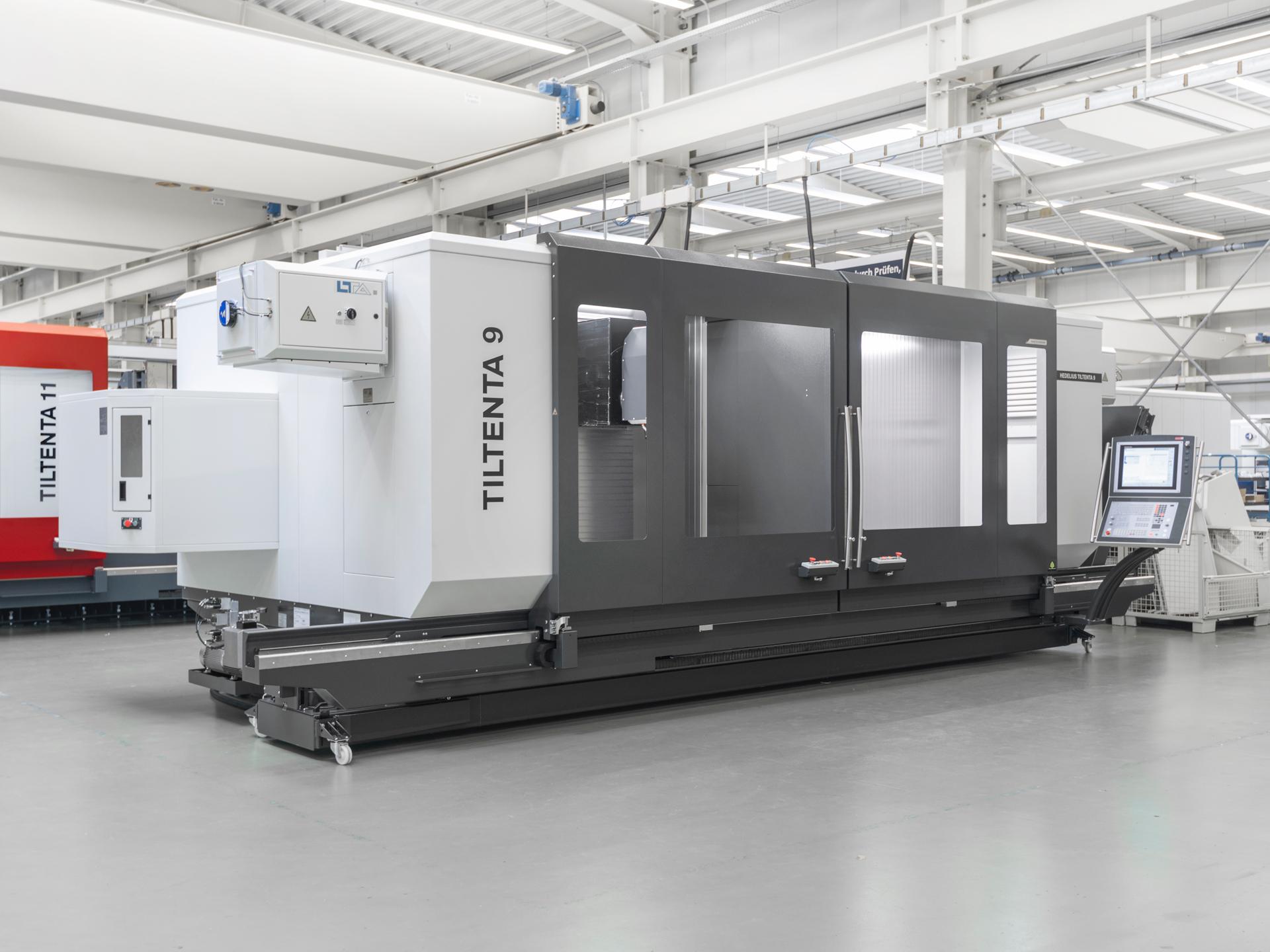

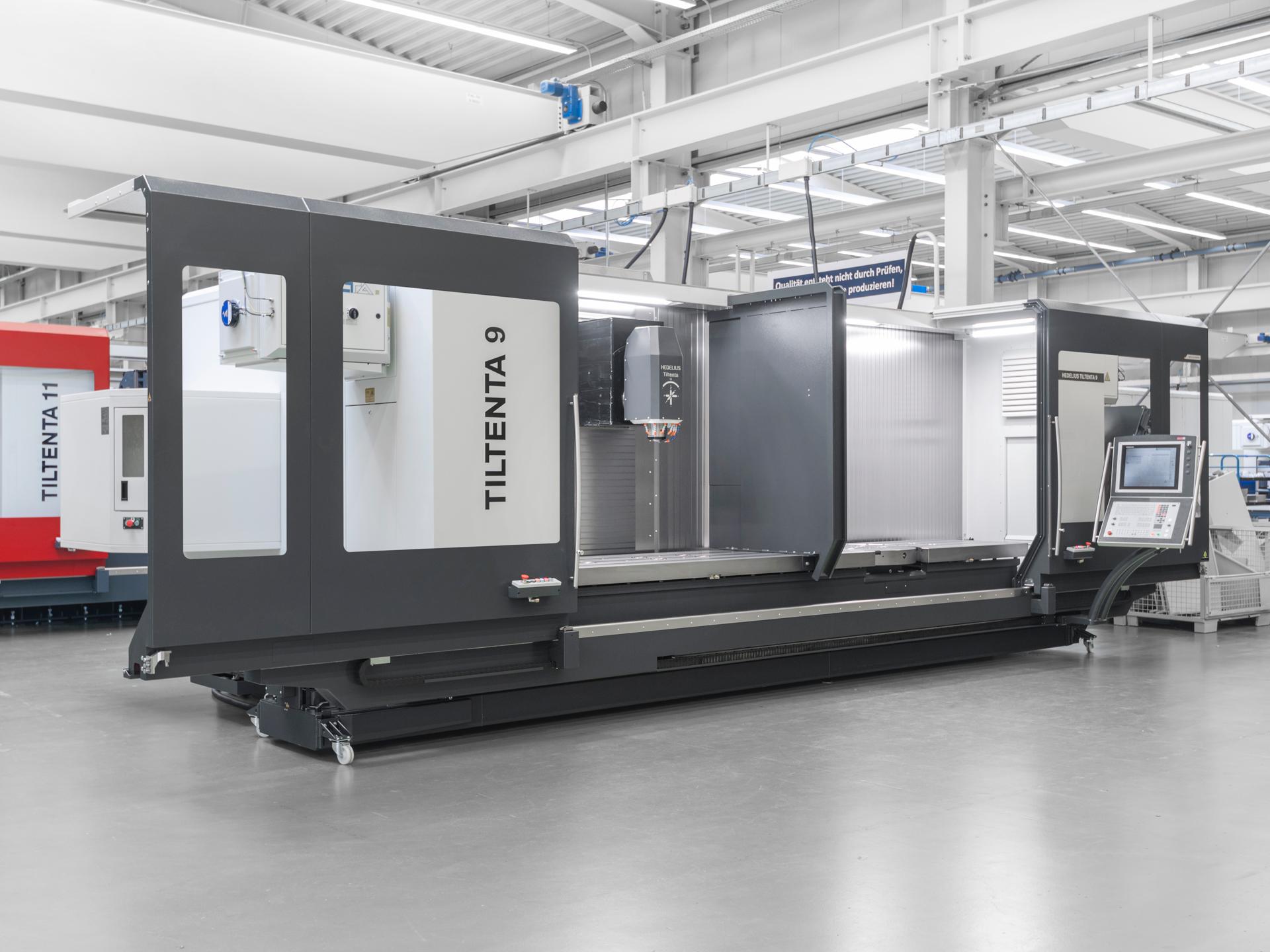

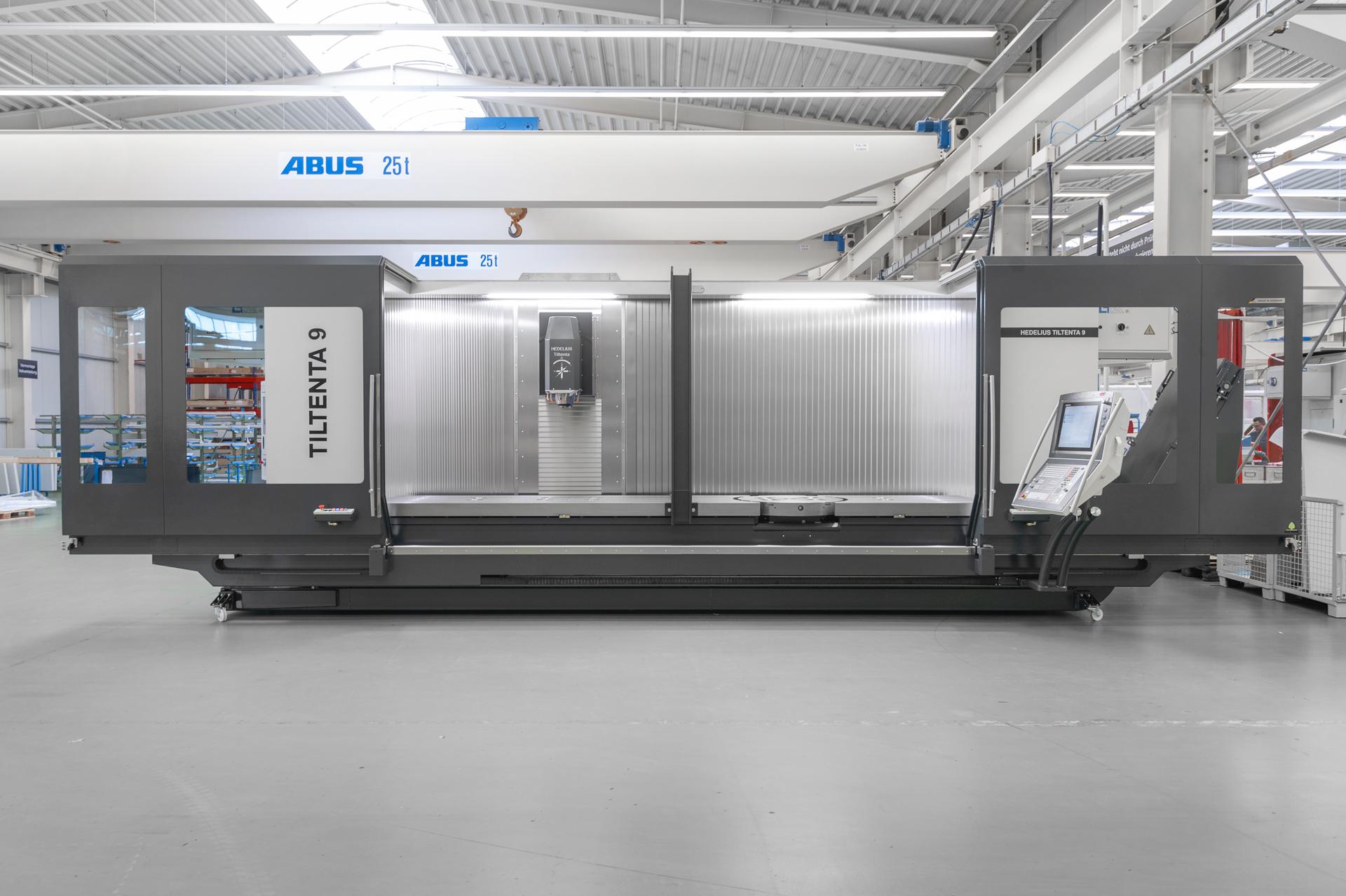

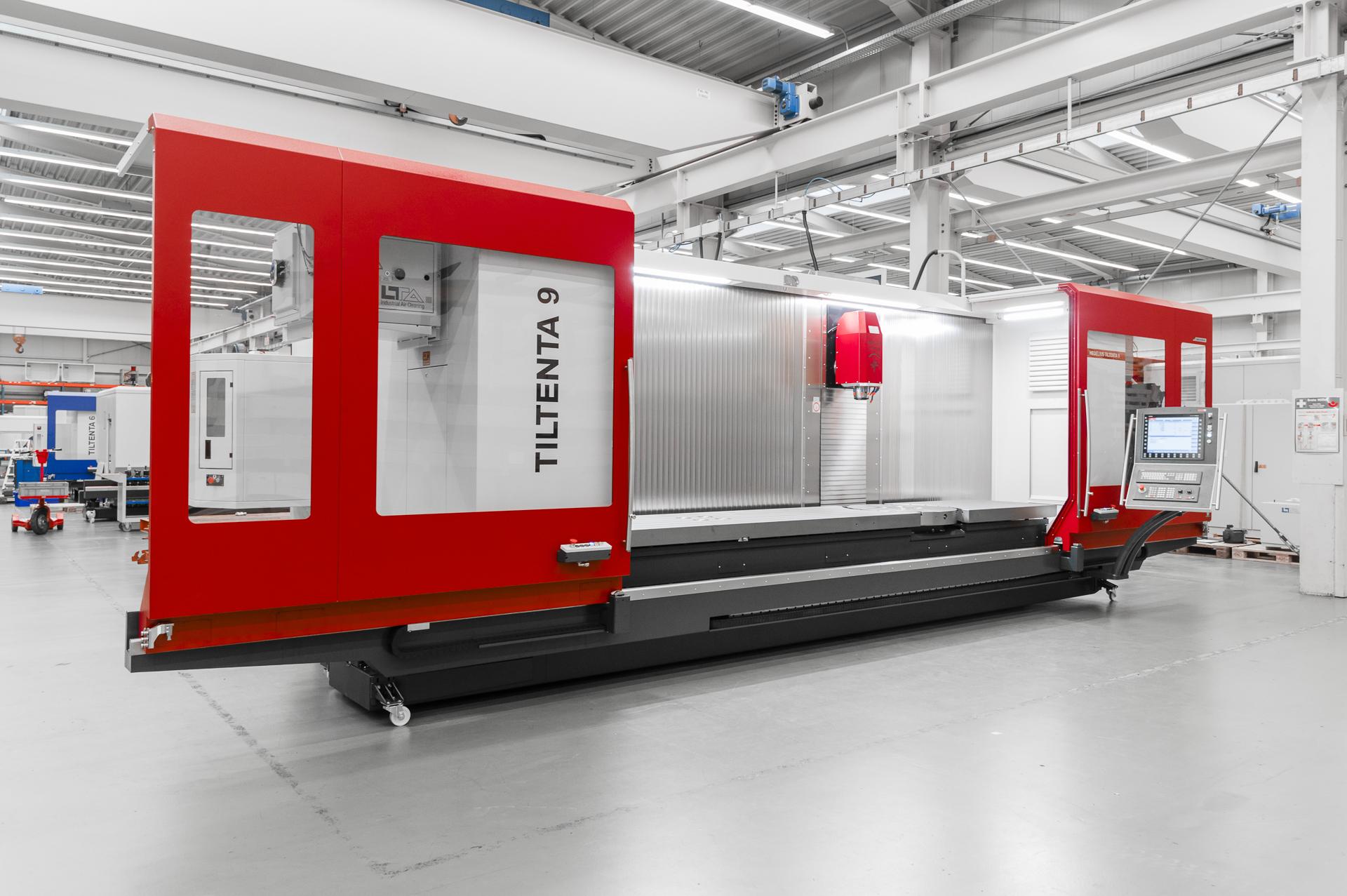

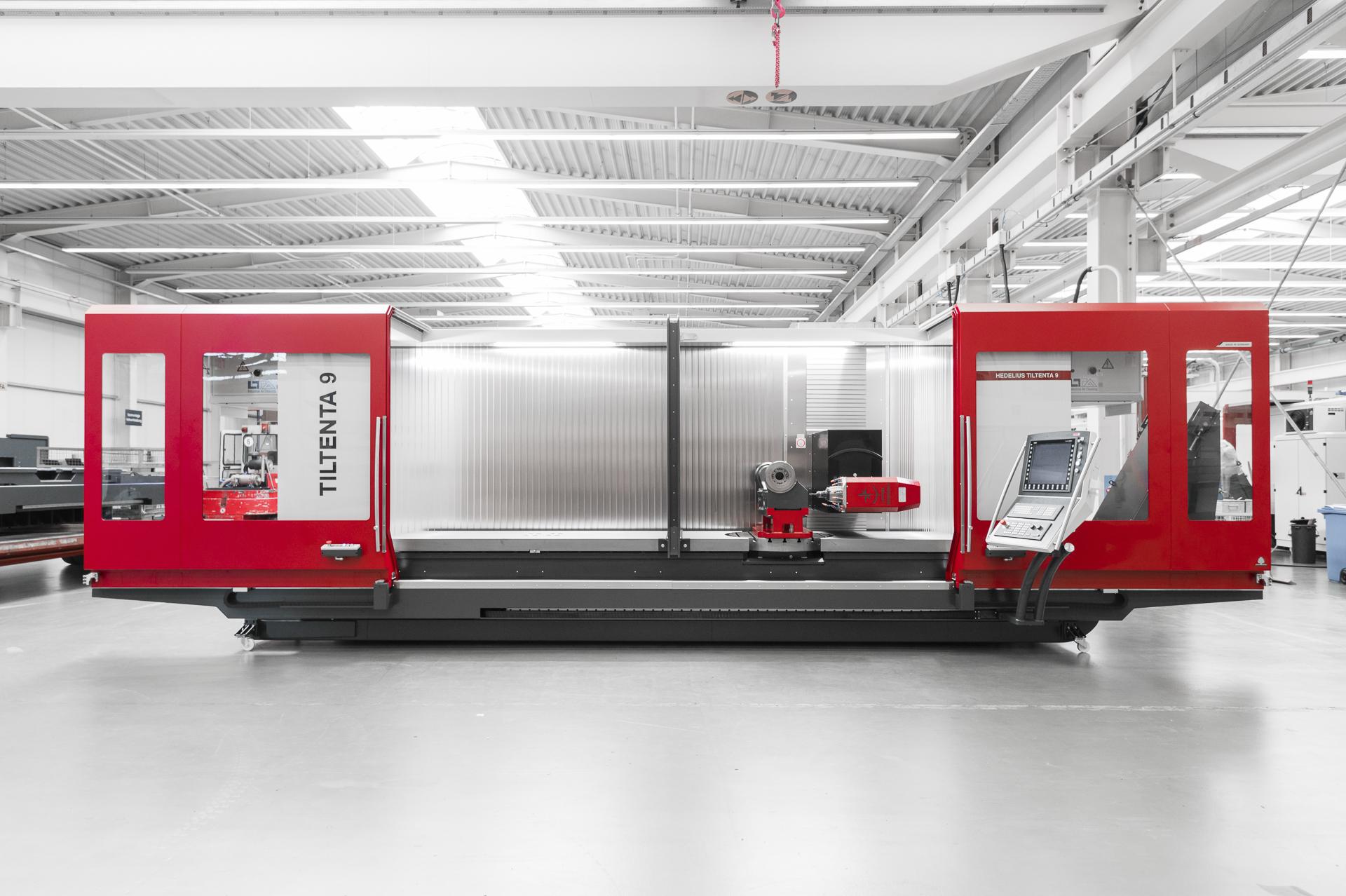

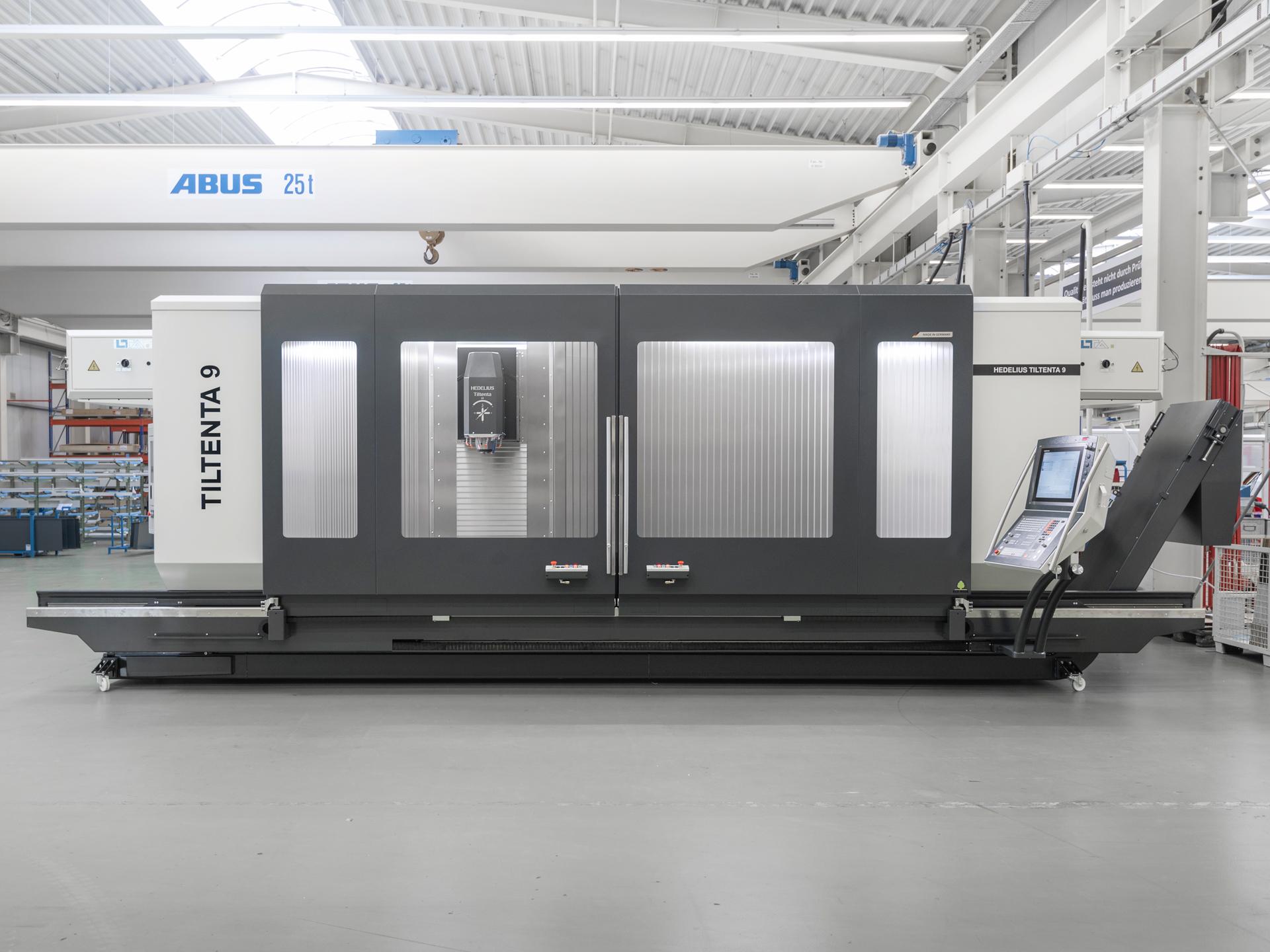

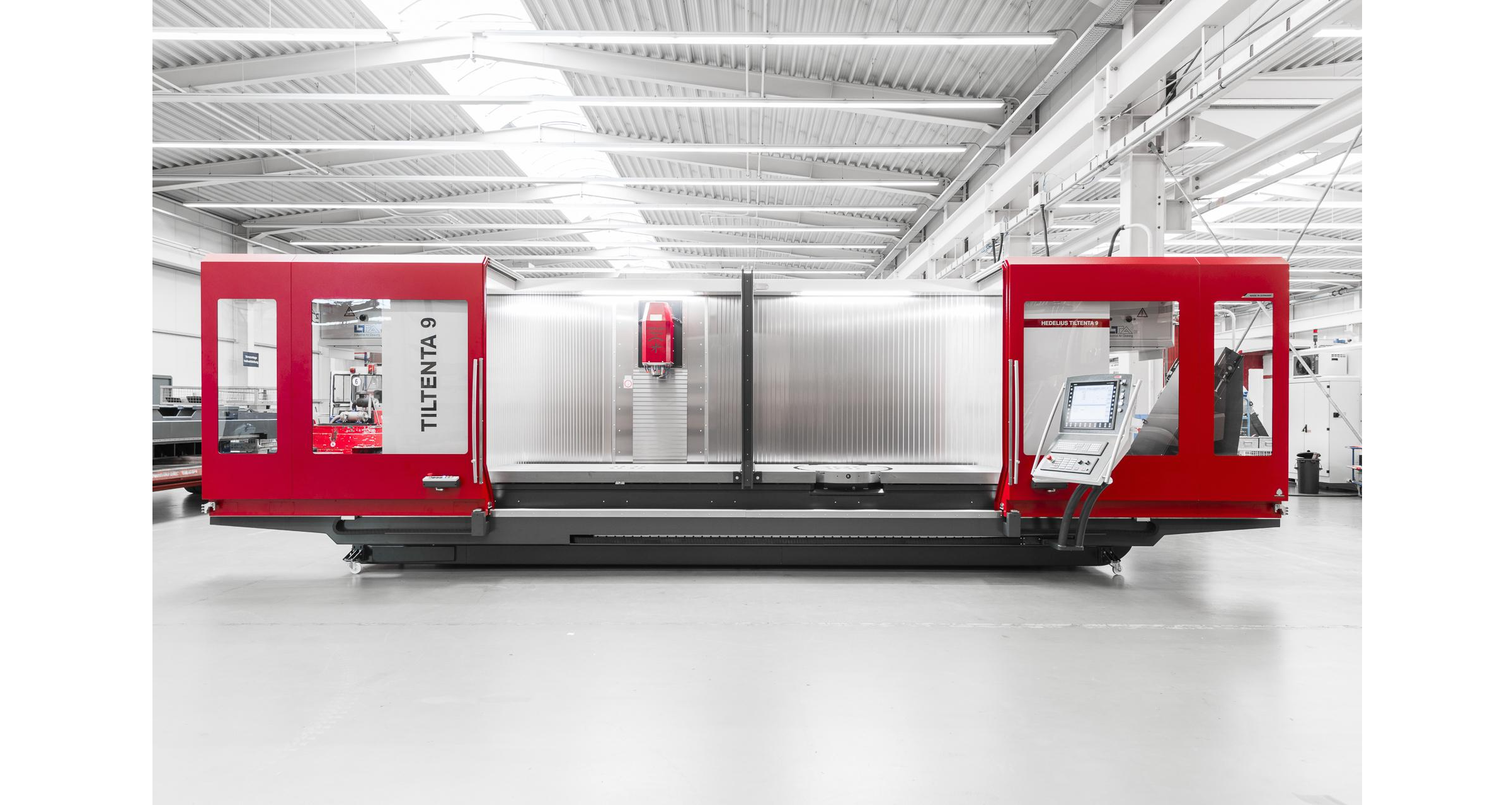

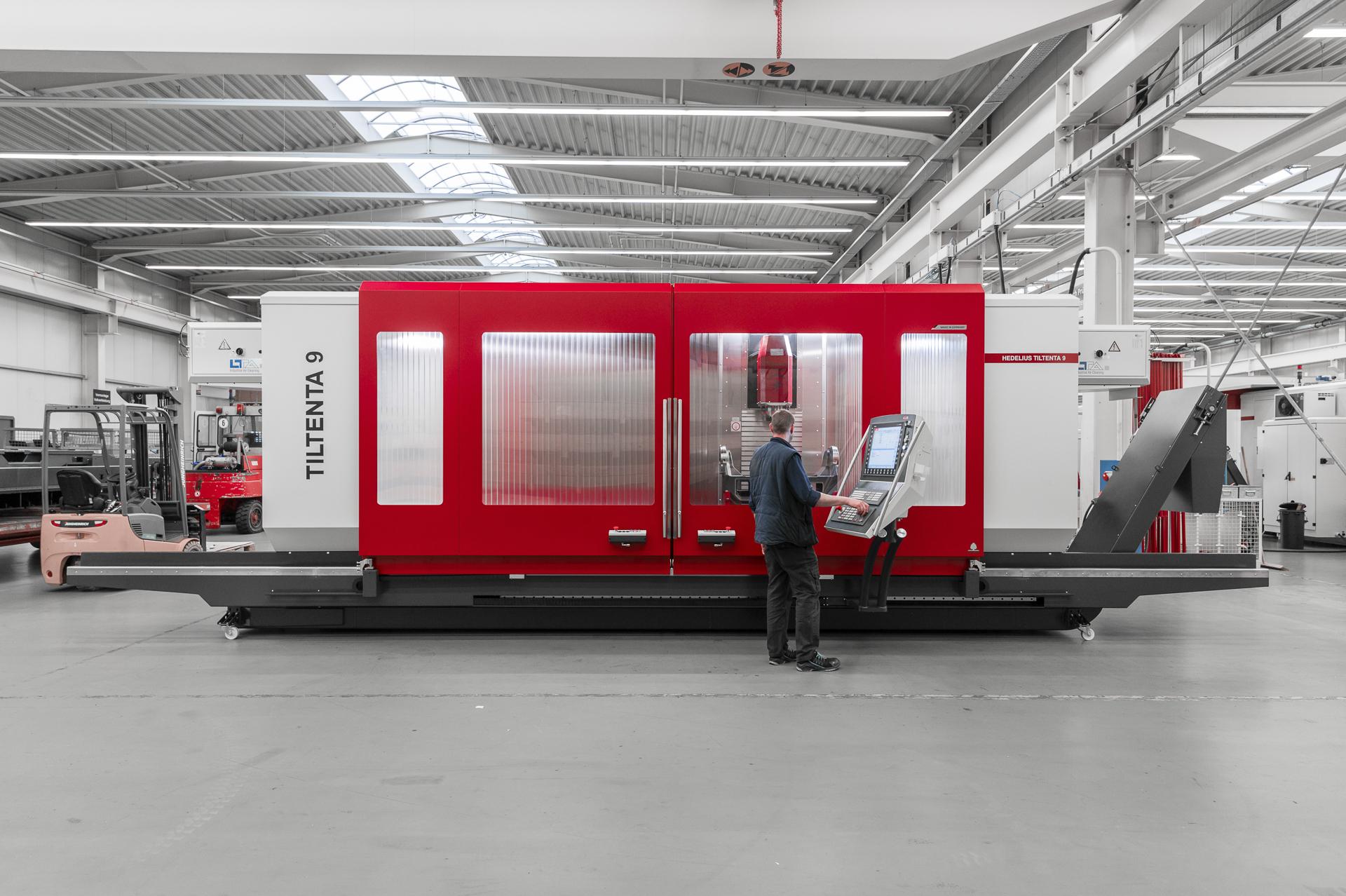

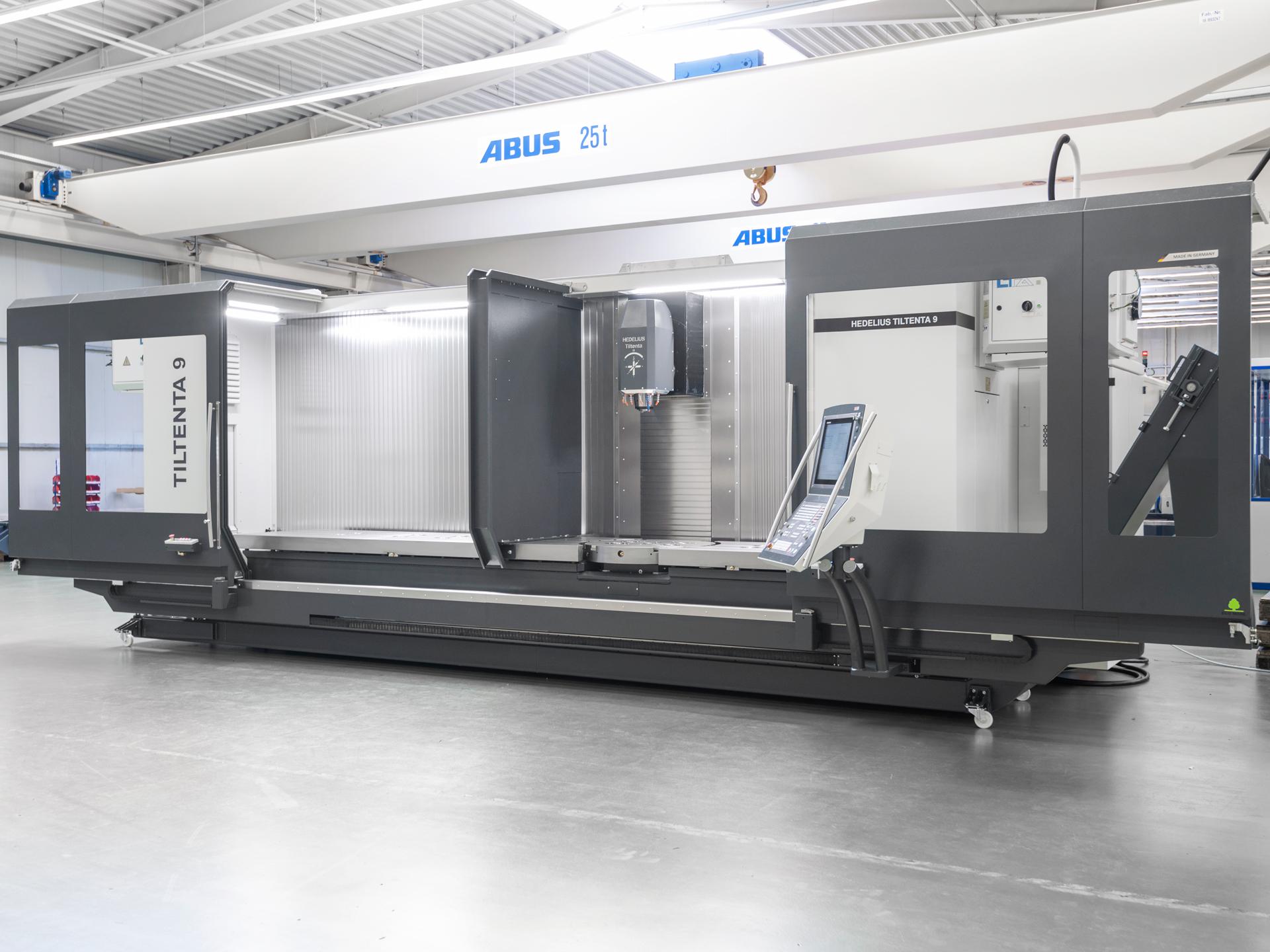

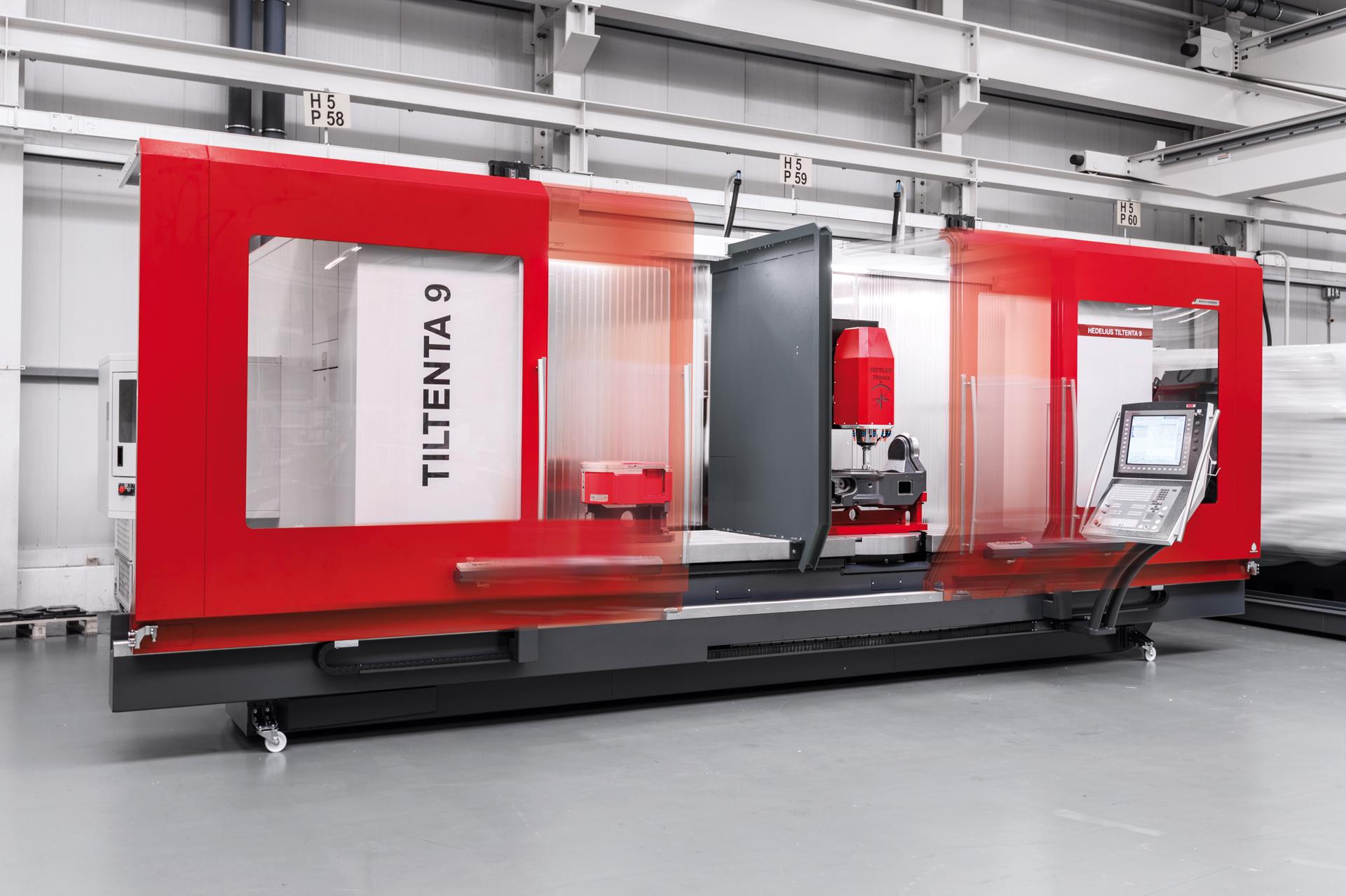

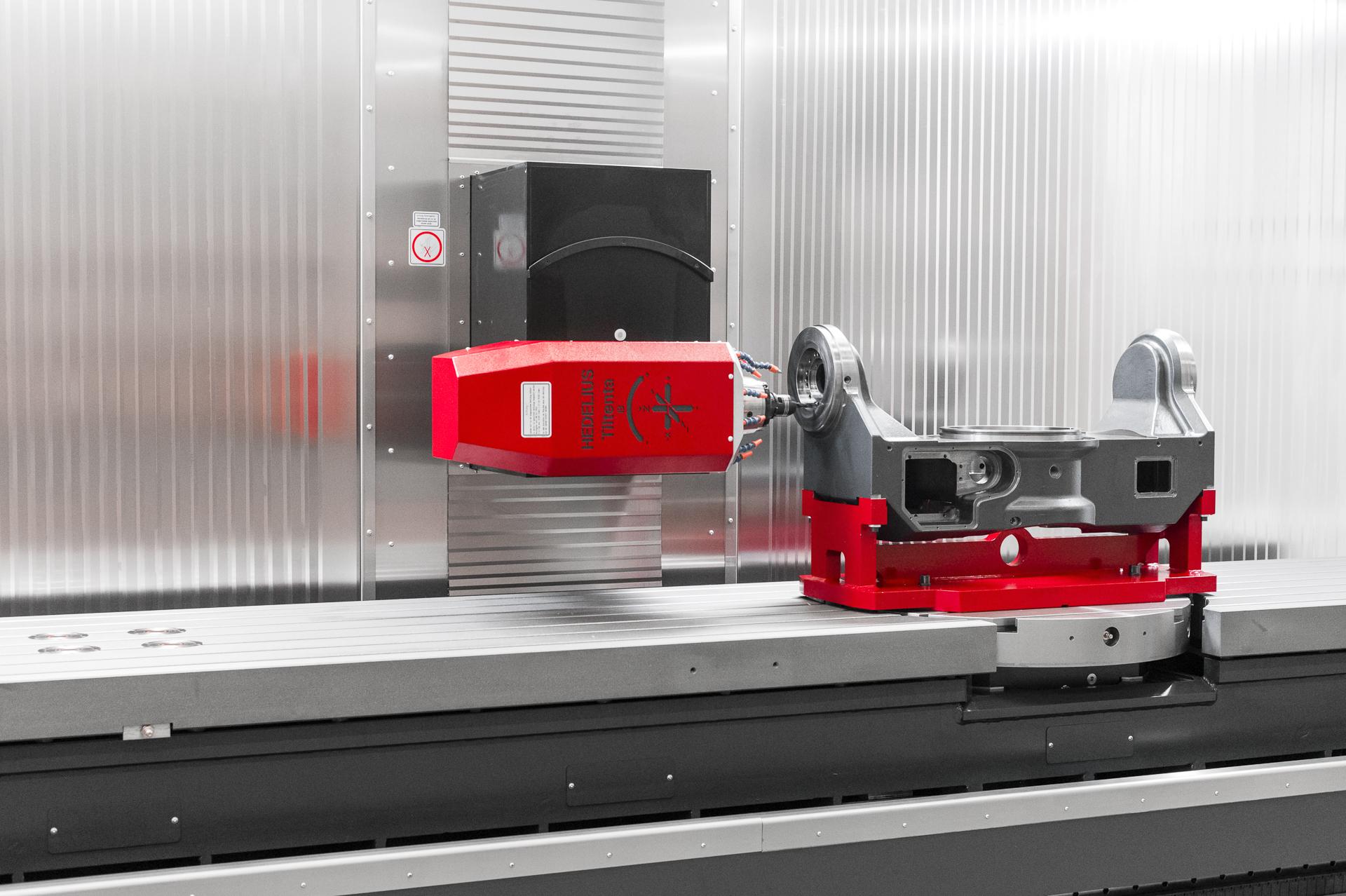

HEDELIUS TILTENTA 9-4600

HEDELIUS TILTENTA 9-4600

orCall +39 0522 1536494

Specifications

ManufacturerHEDELIUS
ModelTILTENTA 9-4600
ConditionNew

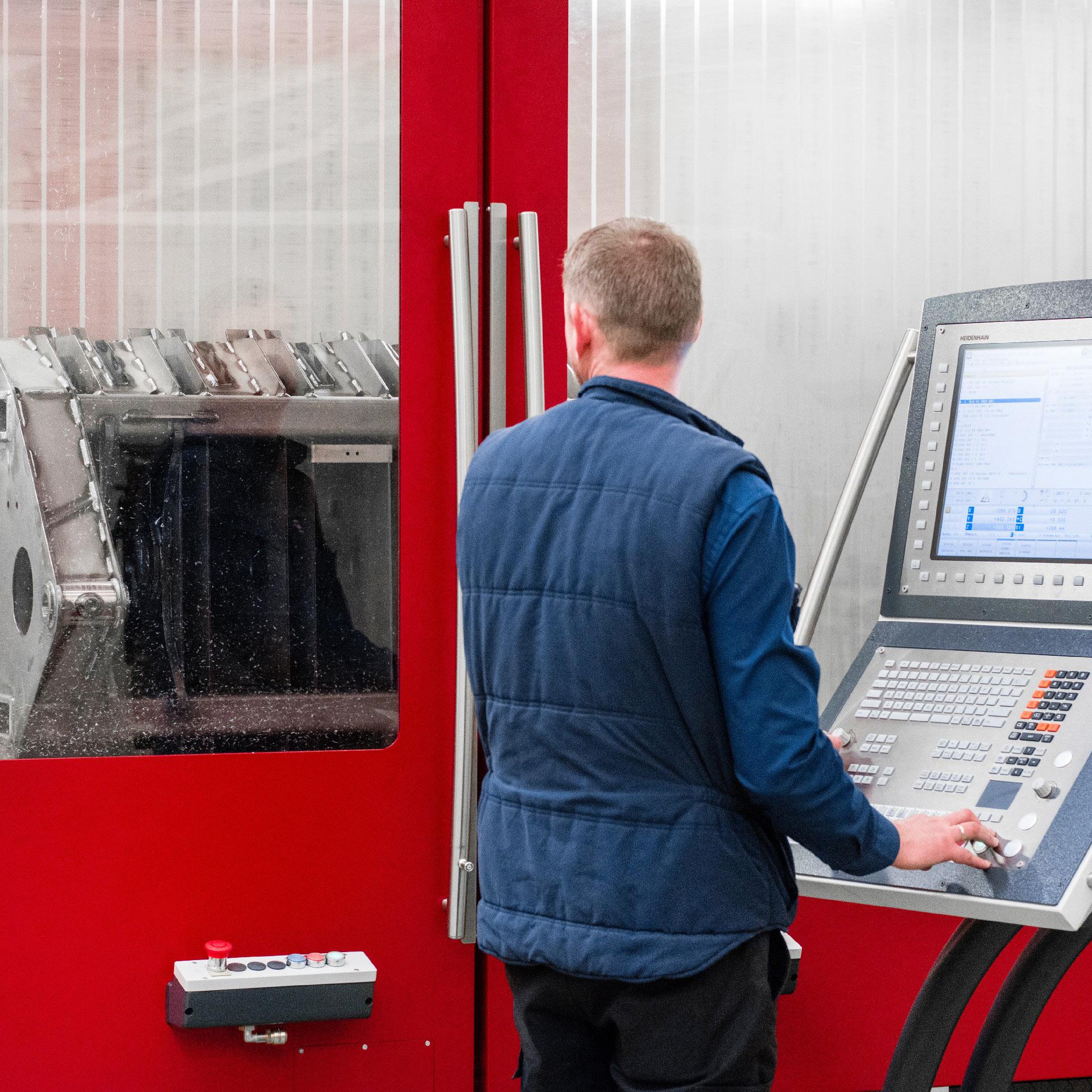

CNC ControlHEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE

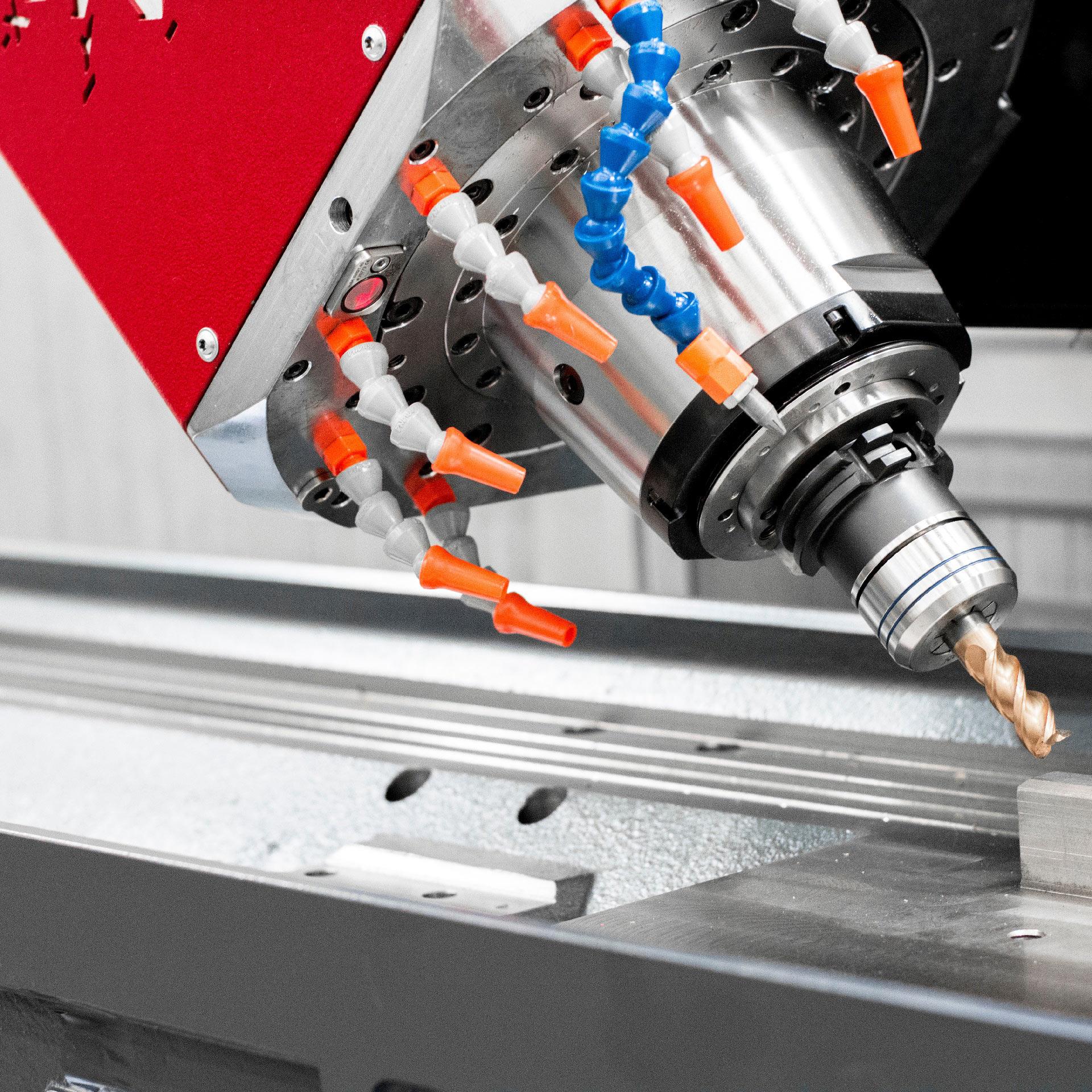

Spindle tool sizeISO-40
Spindle speed14.000 RPM (opt. 15000/18000)
Spindle motor power (cont/30 min)22 kW (opt. 22,00/35,00/37,00/50,00)
X axis4.600 mm
Y axis900 mm
Z axis900 mm
Table dimensions5080 x 900 mm
Max load allowed on table5000 kg

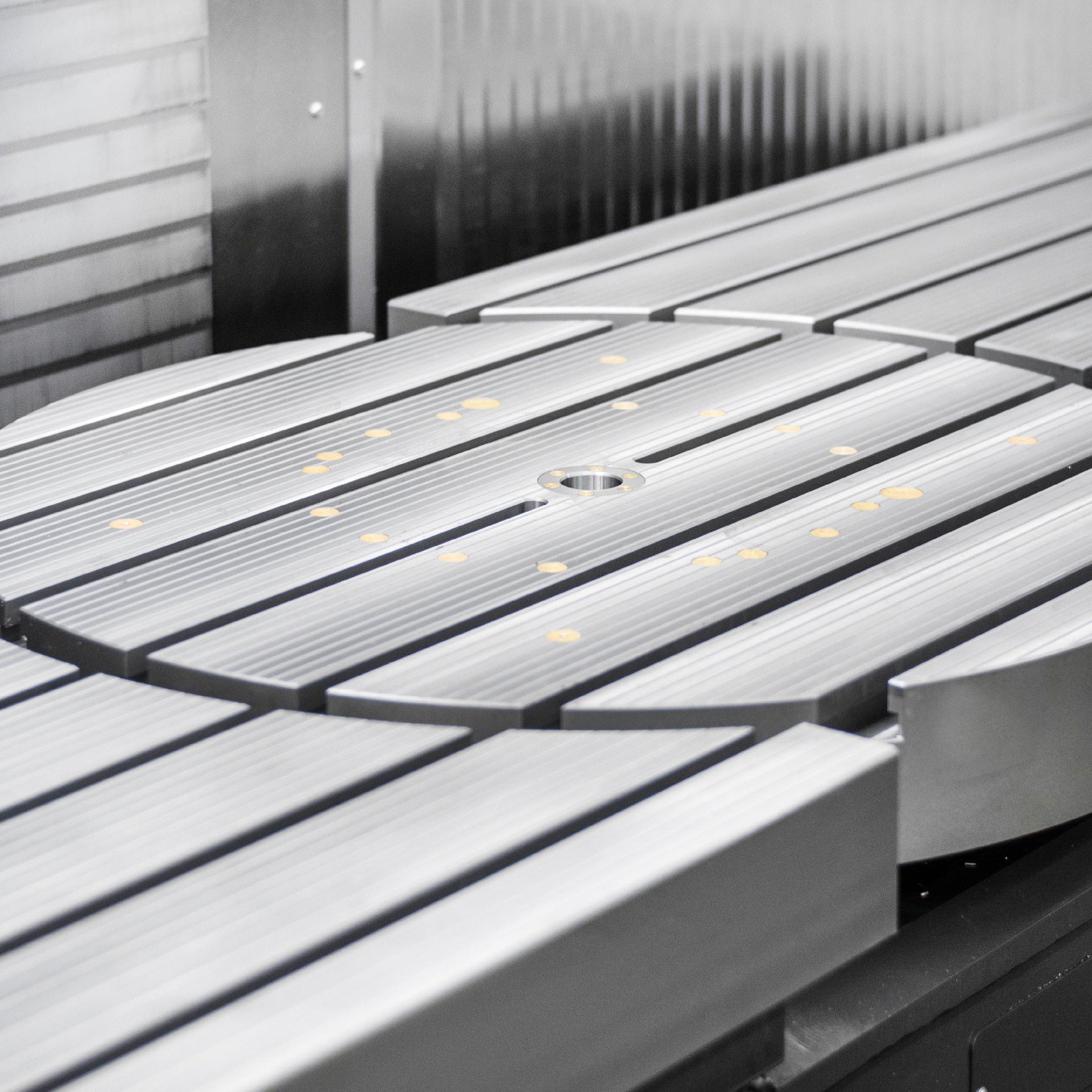

Rotary table diameter (1R opt)Ø 900 mm
Max weight on rotary table1200/1800 kg
Max diameter of the workpiece on rotary tableØ 1250 mm

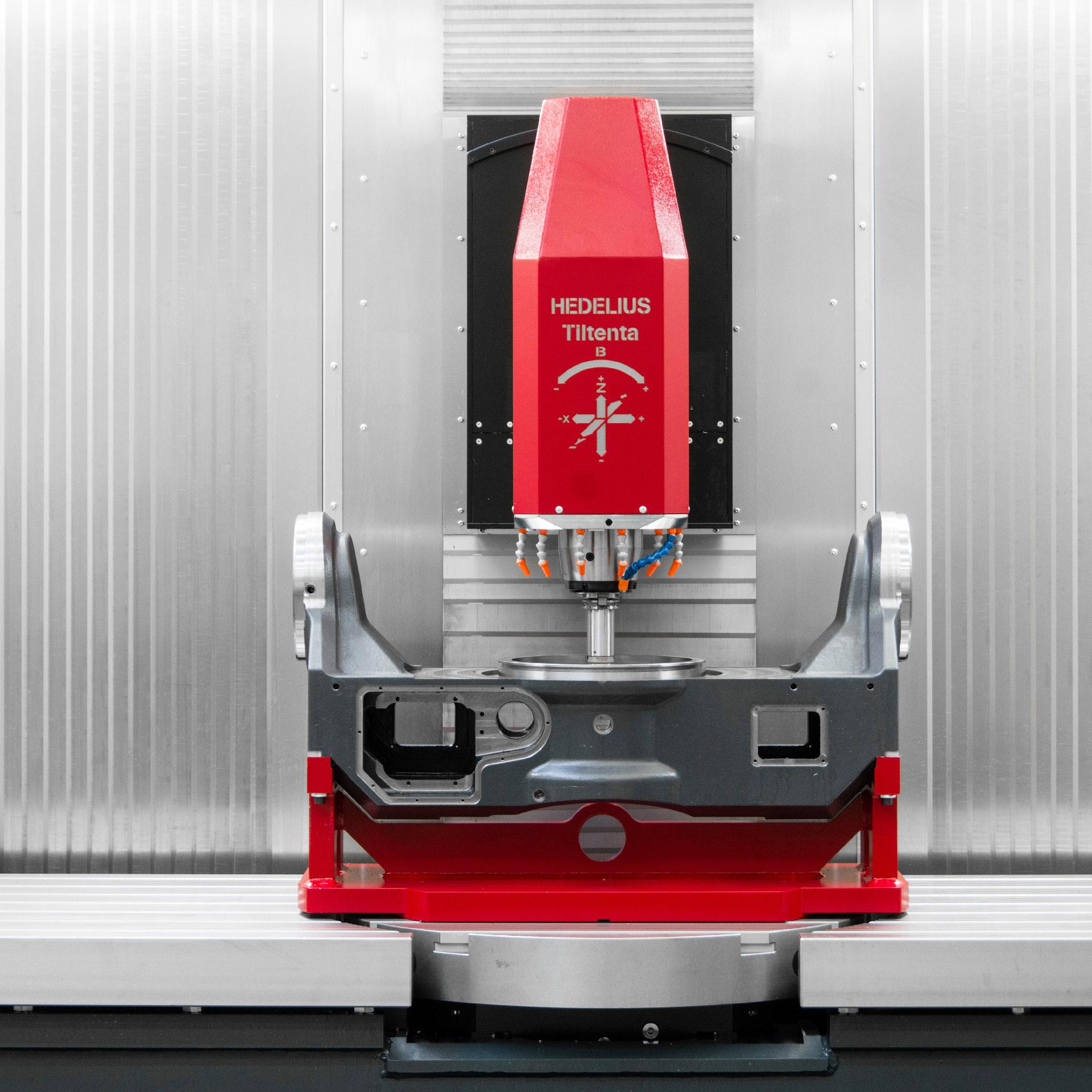

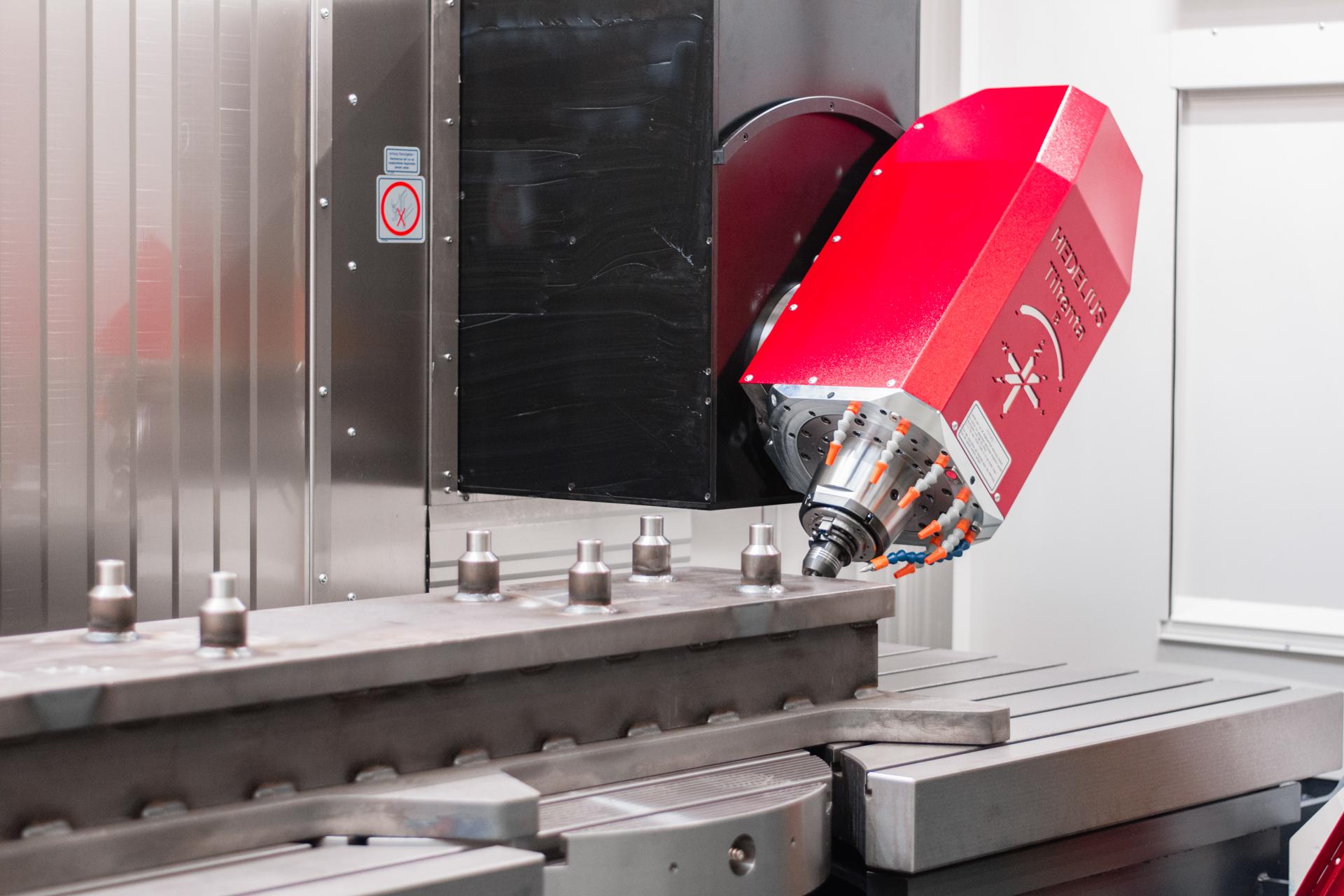

Tilting angle of the spindle head-5° – +98°/-98° – +98°
X / Y / Z axis rapid feedrates40/40/40 m/min
Tool typeSK40 / BT40 / HSK A63

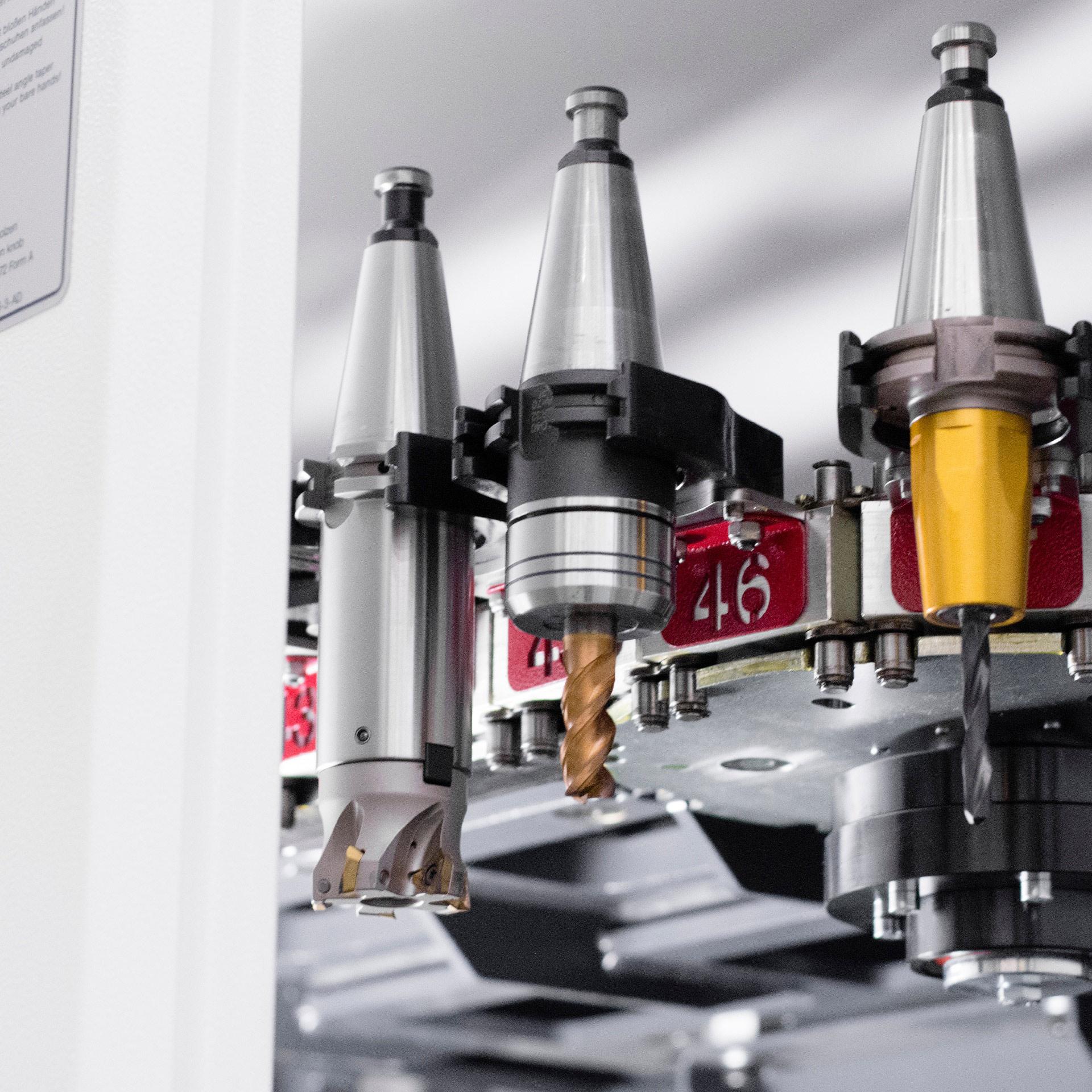

ATC capicity60 positions standard (opt. 240/324)
AccessoriesChip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration
