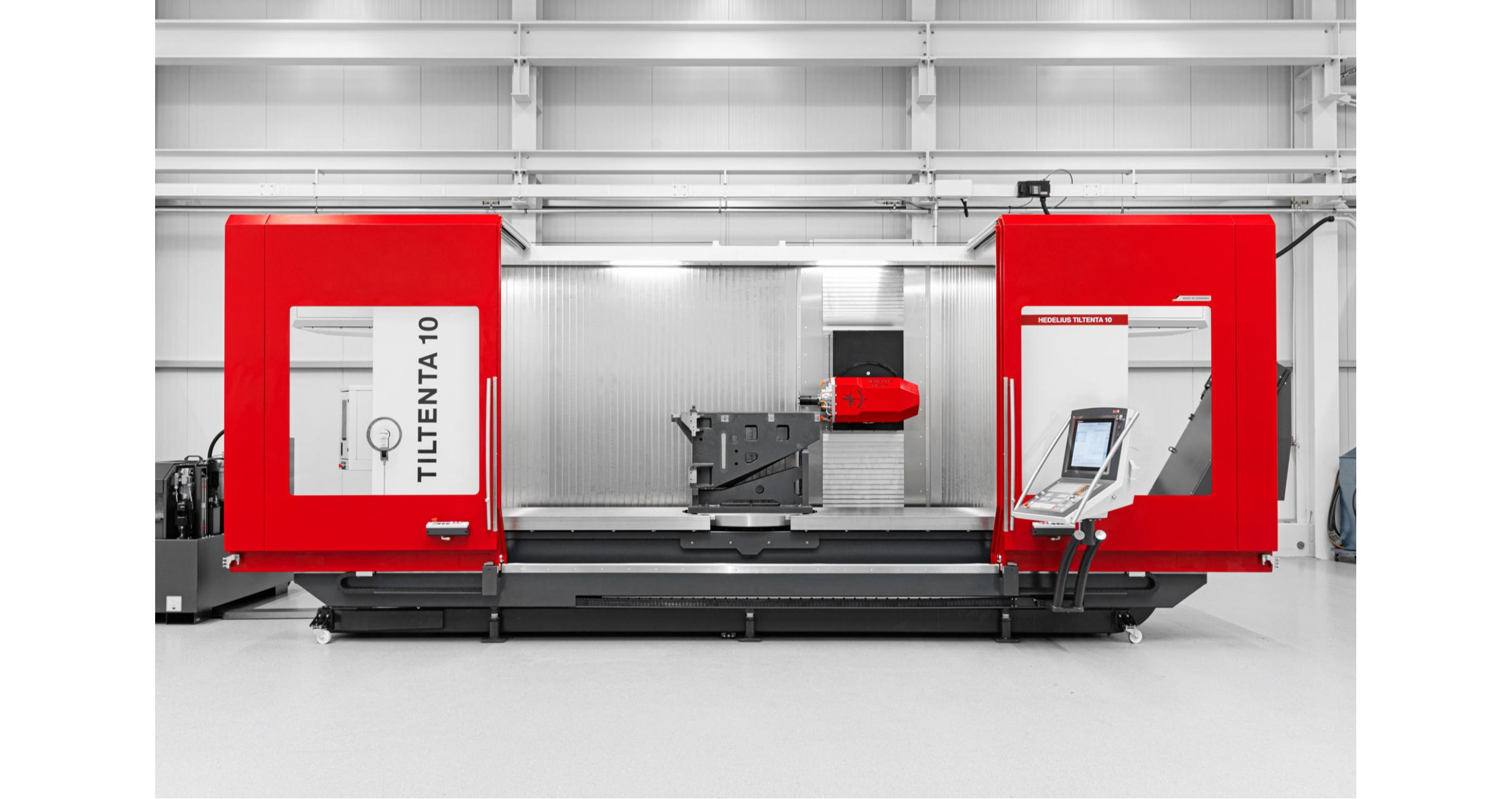

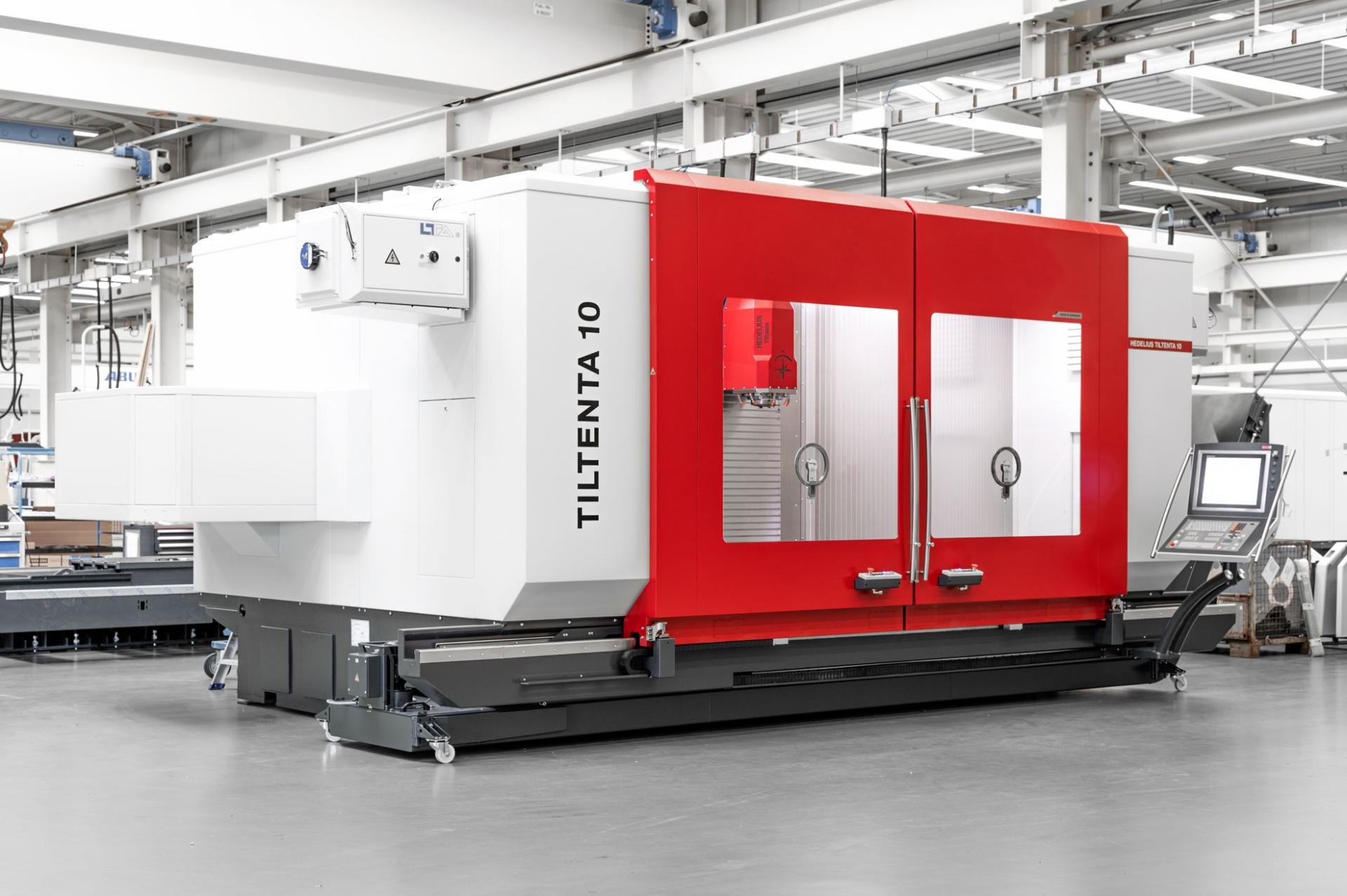

TILTENTA 10-3600

TILTENTA 10-3600

orCall +39 0522 1536494

Specifications

ManufacturerHEDELIUS
ModelTILTENTA 10-3600
ConditionNew
CNC ControlHEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE
Spindle tool sizeISO-50
Spindle speed8.000 RPM (opt. 12.000)
Spindle motor power (cont/30 min)50,00 kW
X axis3.600 mm
Y axis1.000 mm
Z axis1.000 mm
Table dimensions4.080 x 1.000 mm
Max load allowed on table5.500 kg
Rotary table diameter (1R opt)Ø 1.000 mm
Max weight on rotary table1.600/2.200 kg
Max diameter of the workpiece on rotary tableØ 1.450 mm
Tilting angle of the spindle head-5° – +98°/-98° – +98°
X / Y / Z axis rapid feedrates40/40/40 m/min
Tool typeSK50 / BT50 / HSK A100
ATC capicity40 positions standard (opt. 192)
AccessoriesChip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration
