| Manufacturer | HEDELIUS |

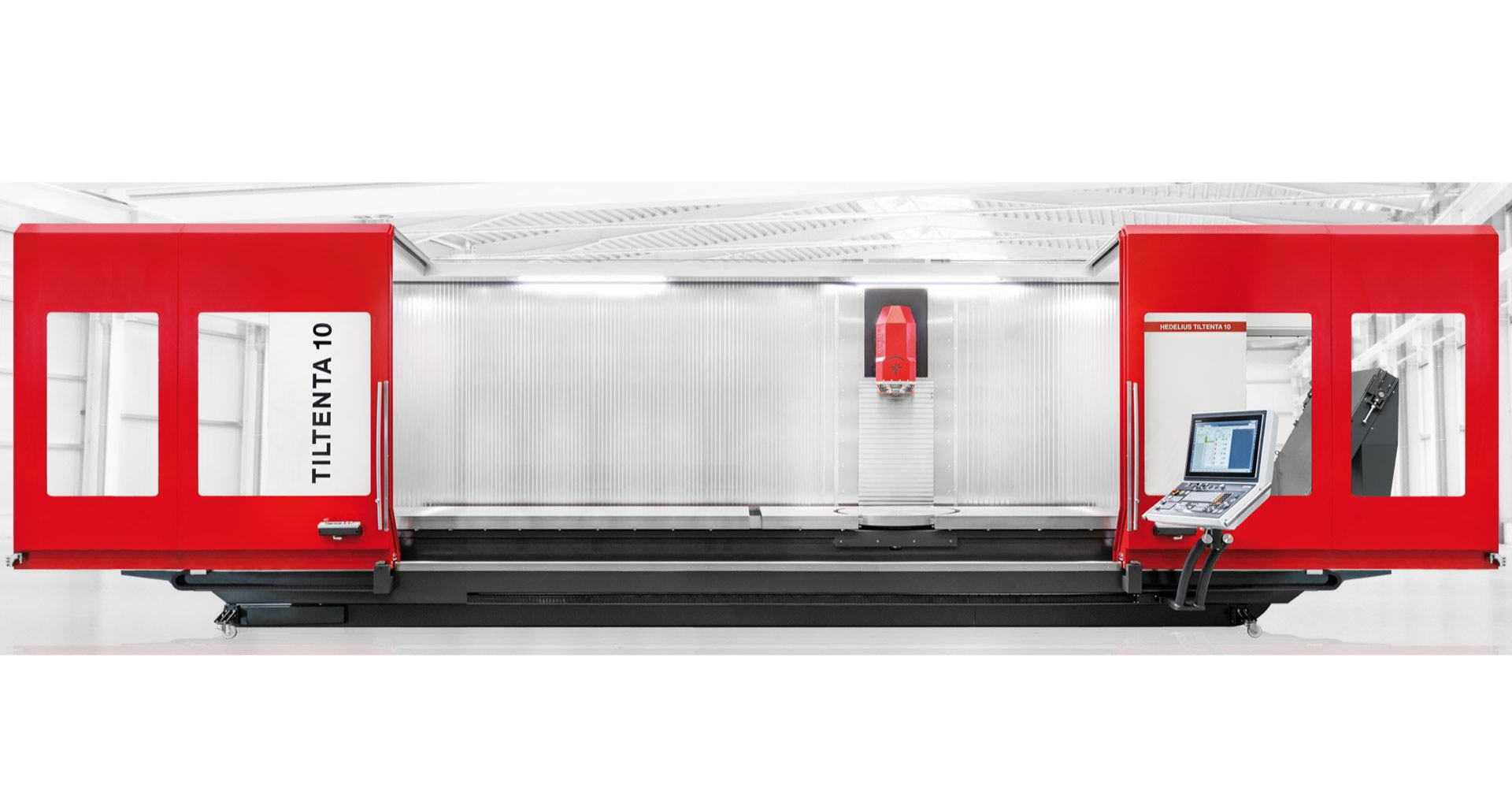

| Model | TILTENTA 10-6200 |
| Condition | New |
| CNC Control | HEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE |
| Spindle tool size | ISO-50 |
| Spindle speed | 8.000 RPM (opt. 12.000) |
| Spindle motor power (cont/30 min) | 50 kW |
| X axis | 6.200 mm |
| Y axis | 1.000 mm |
| Z axis | 1.000 mm |
| Table dimensions | 6.680 x 1.000 mm |
| Max load allowed on table | 8.000 kg |
| Rotary table diameter (1R opt) | Ø 1.000 mm |
| Max weight on rotary table | 1.600/2.200 kg |
| Max diameter of the workpiece on rotary table | Ø 1.450 mm |
| Tilting angle of the spindle head | -5° – +98°/-98° – +98° |
| X / Y / Z axis rapid feedrates | 40/40/40 m/min |
| Tool type | SK50 / BT50 / HSK A100 |
| ATC capicity | 40 positions standard (opt. 192) |
| Accessories | Chip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration |
