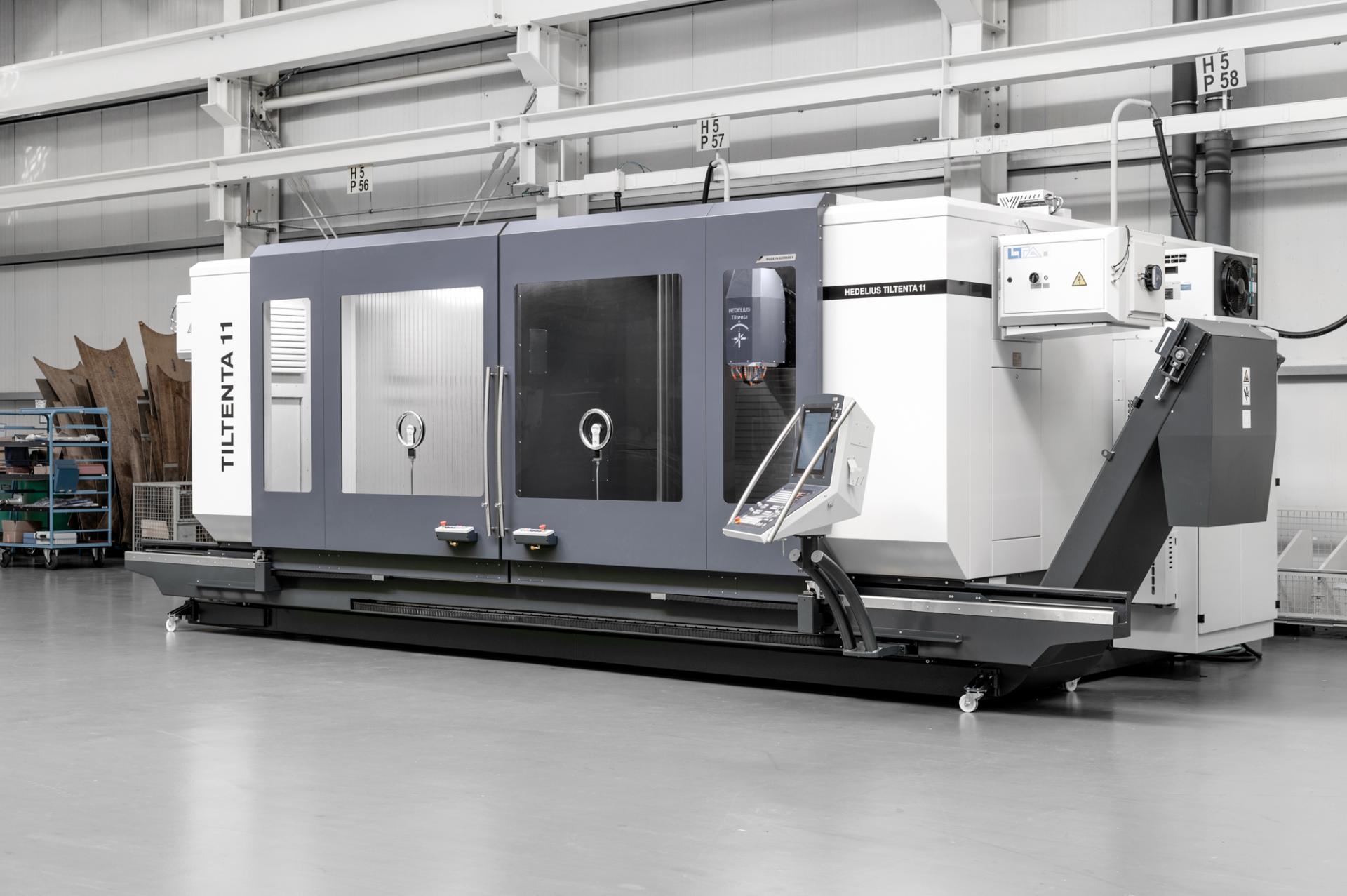

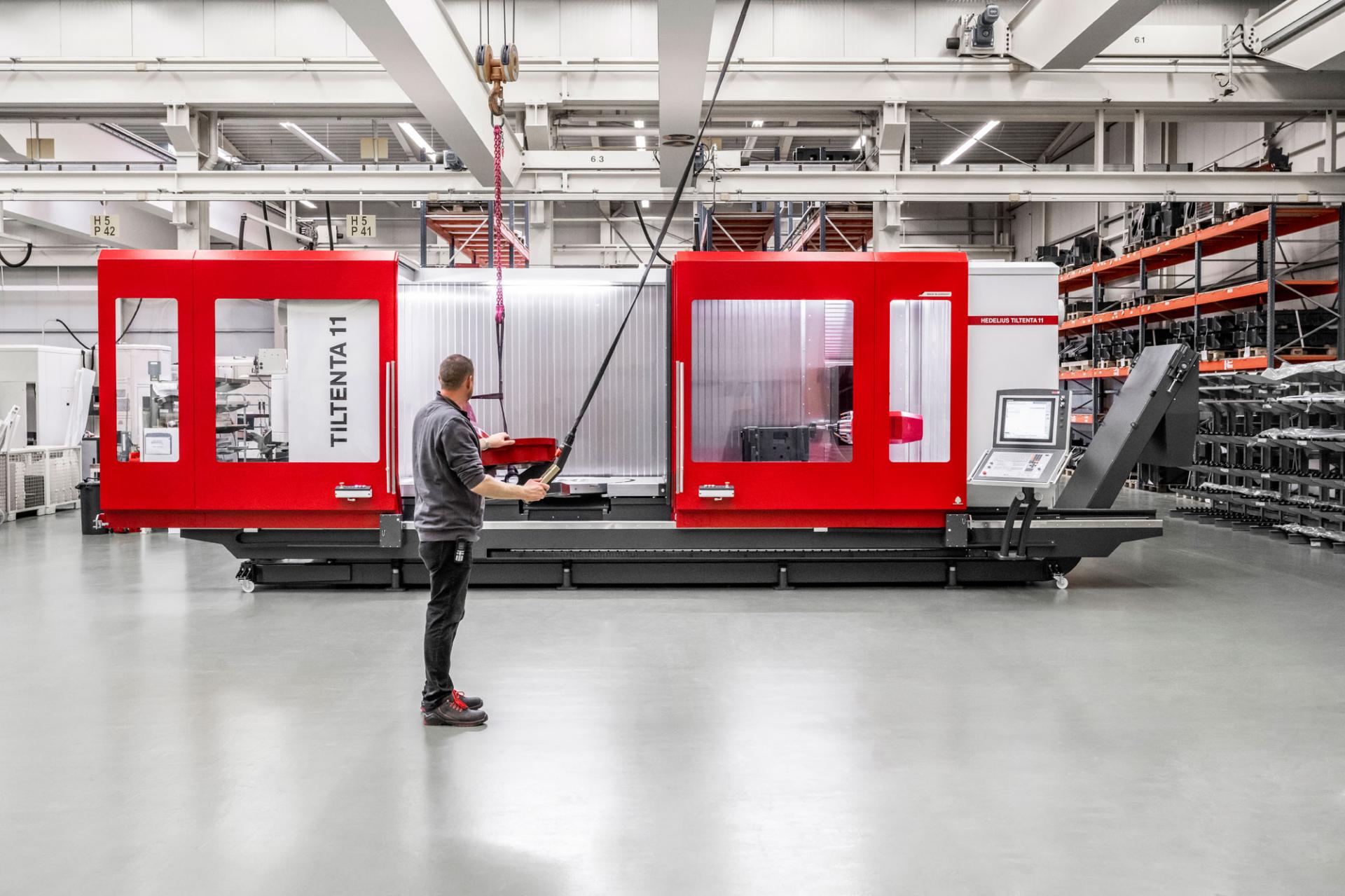

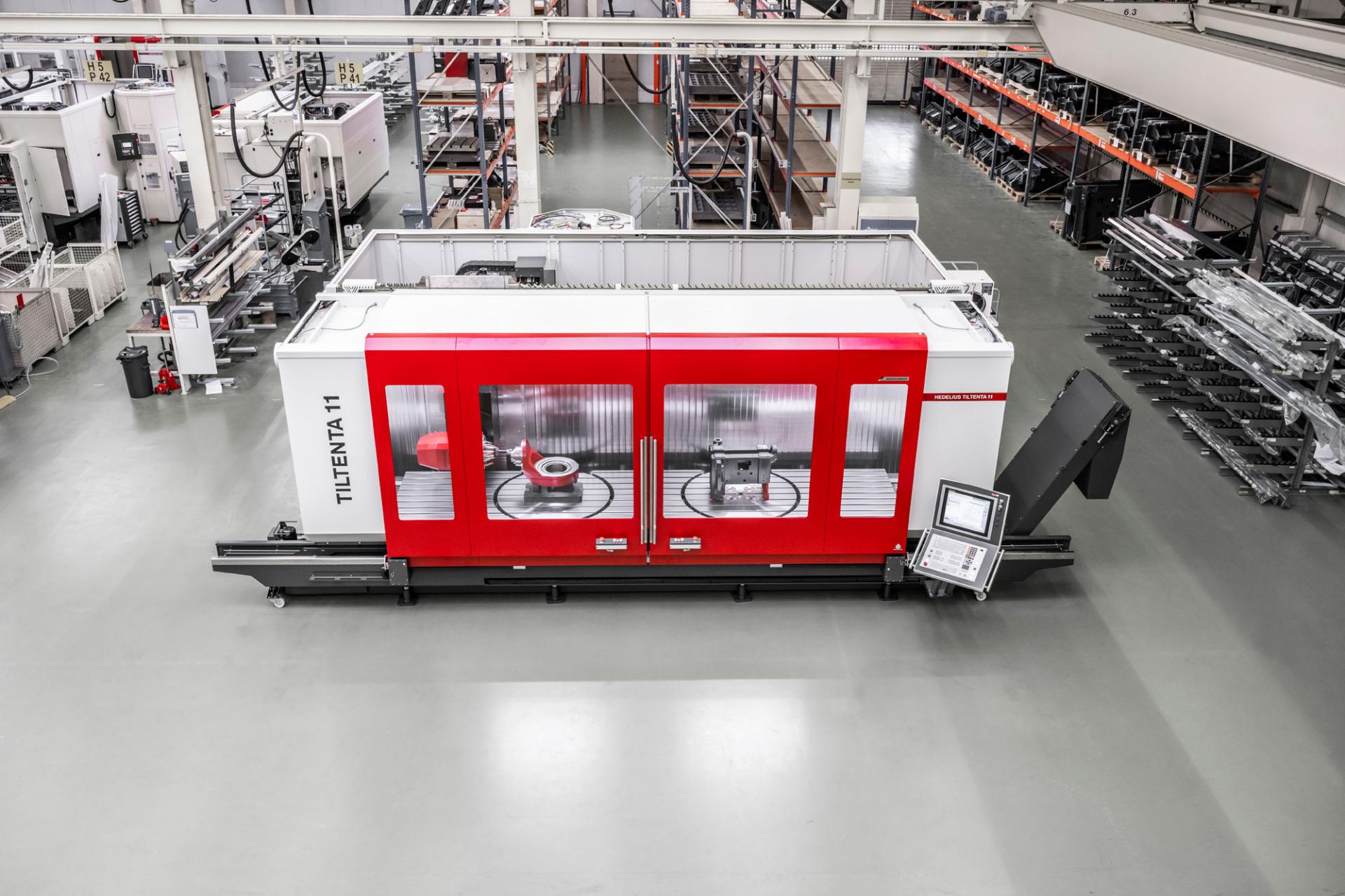

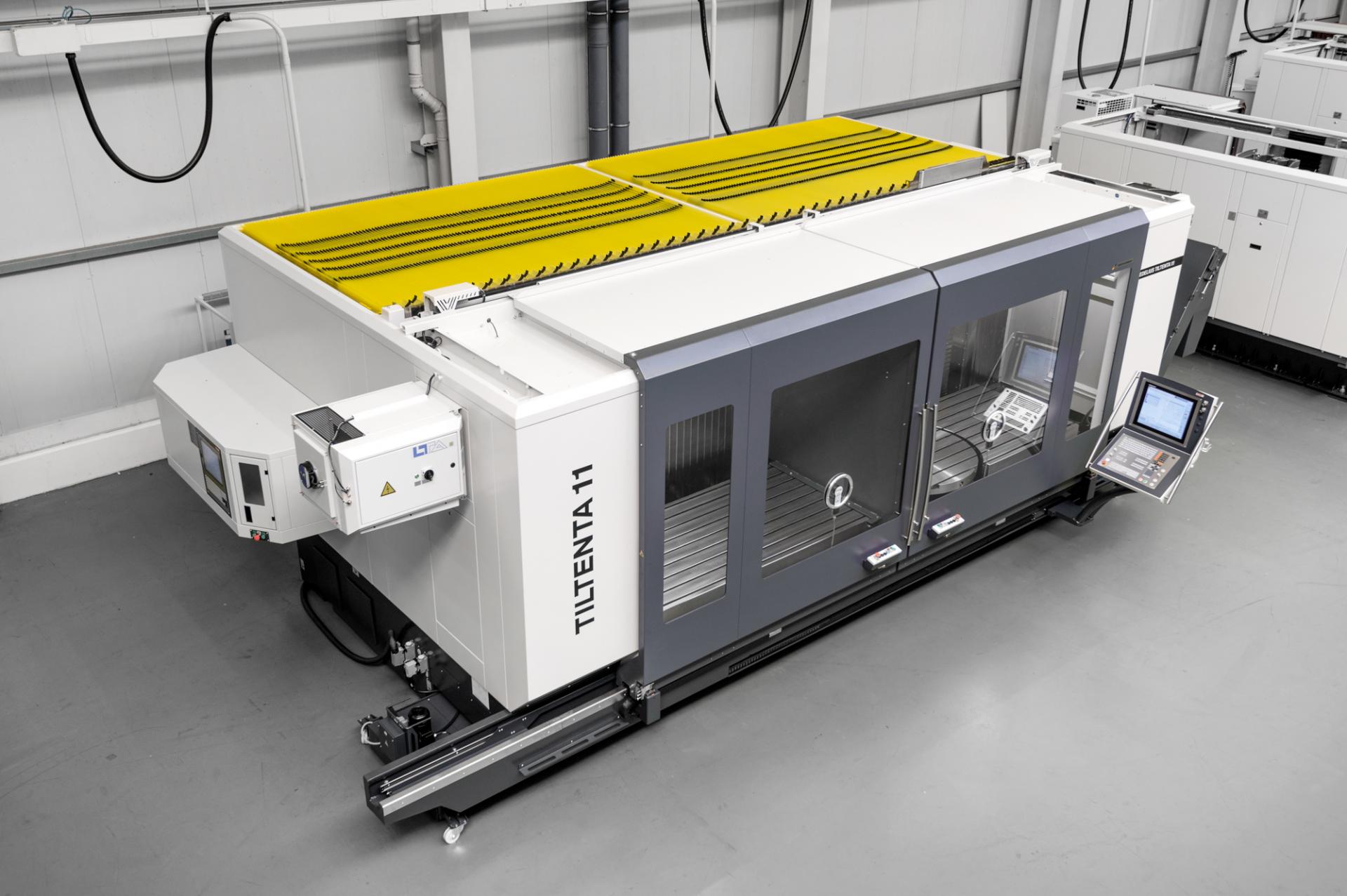

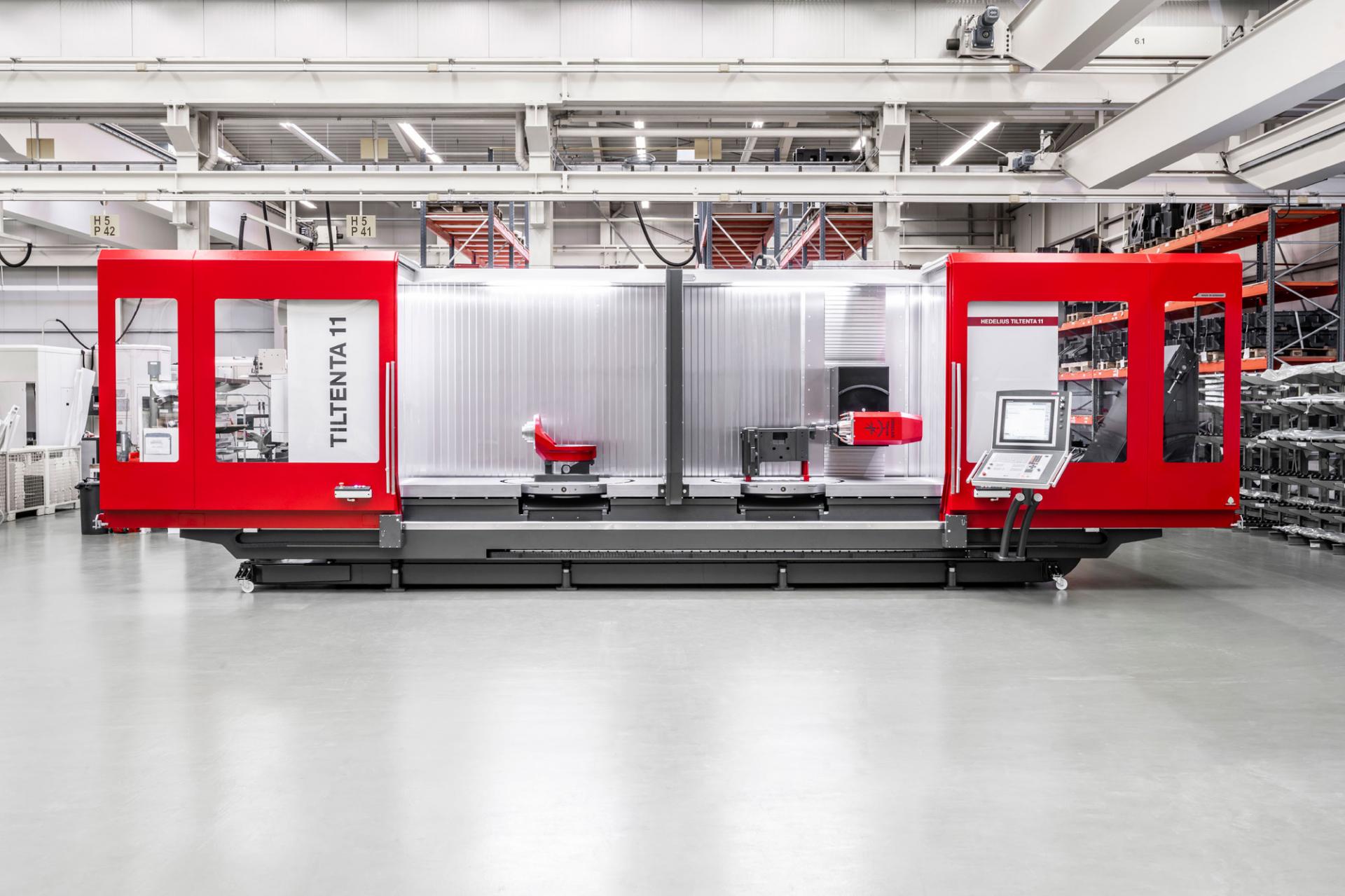

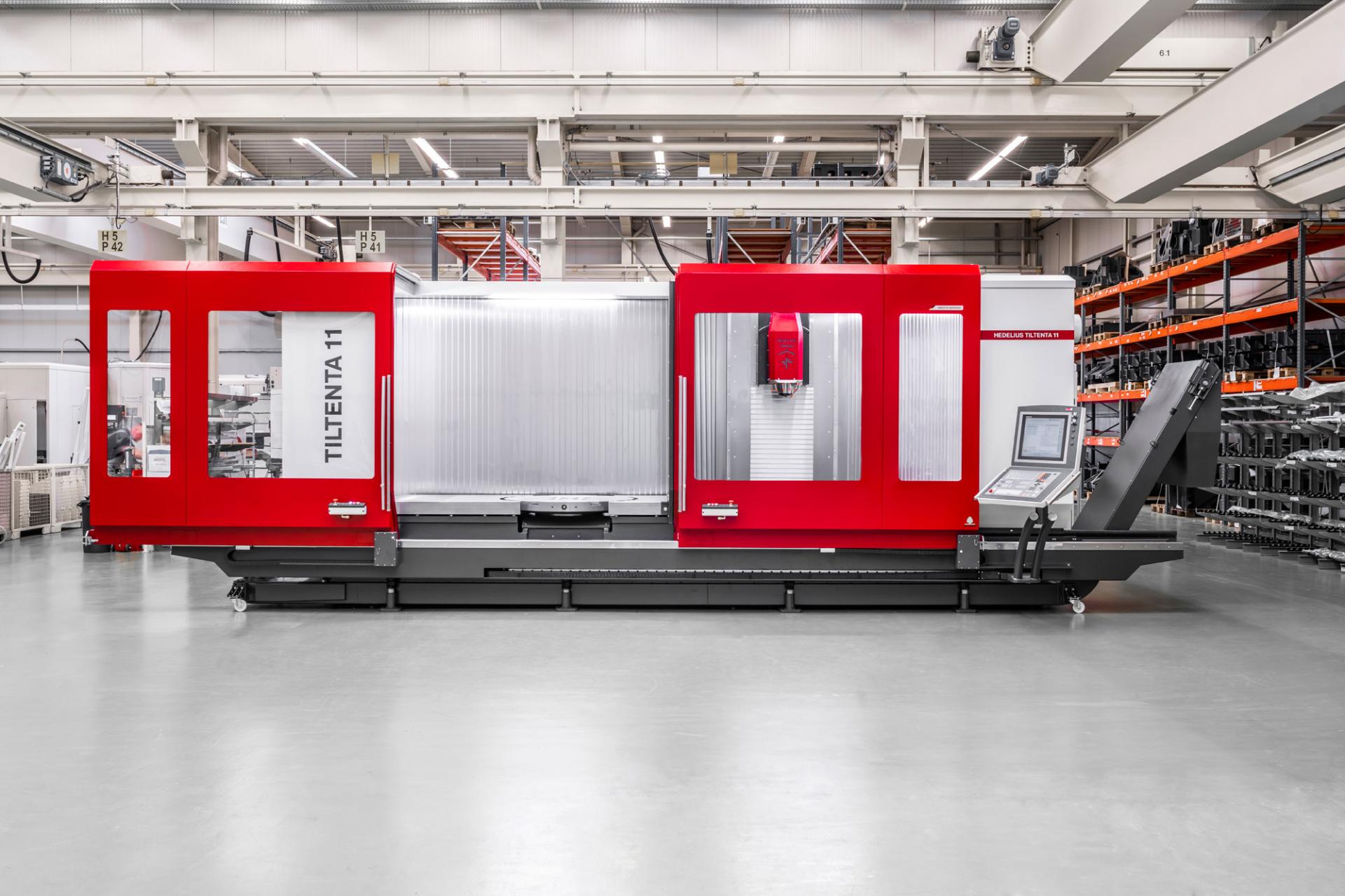

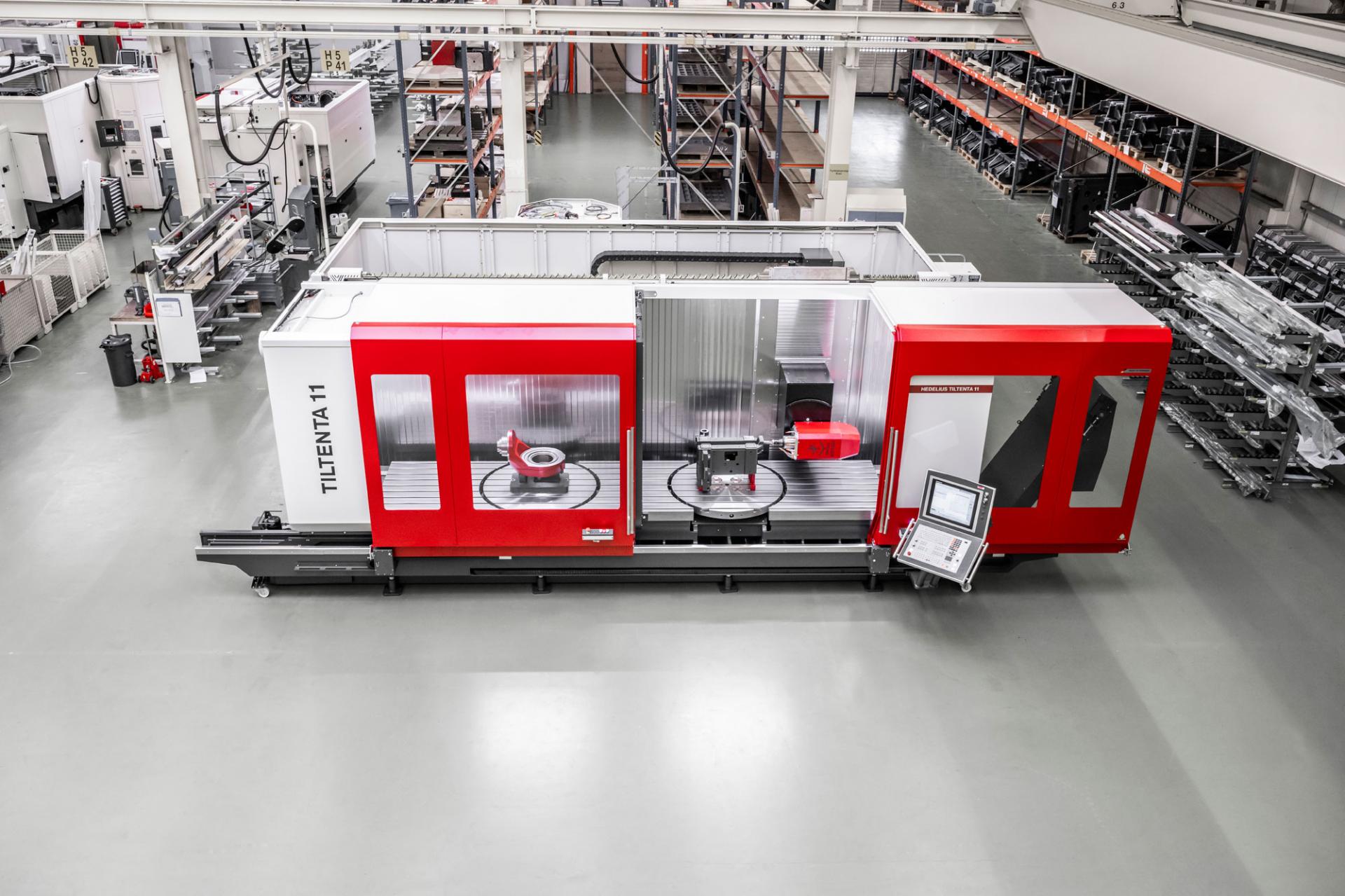

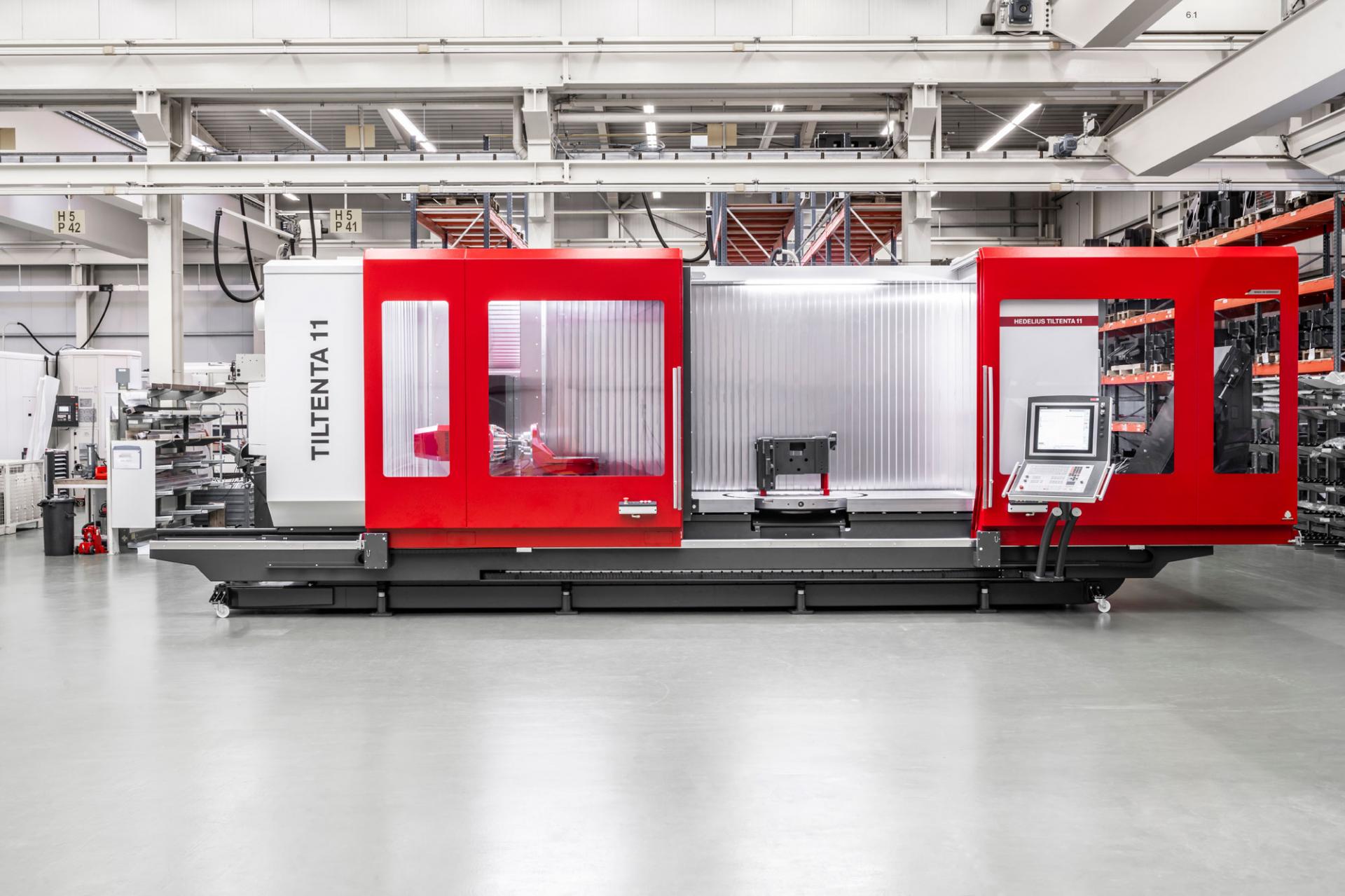

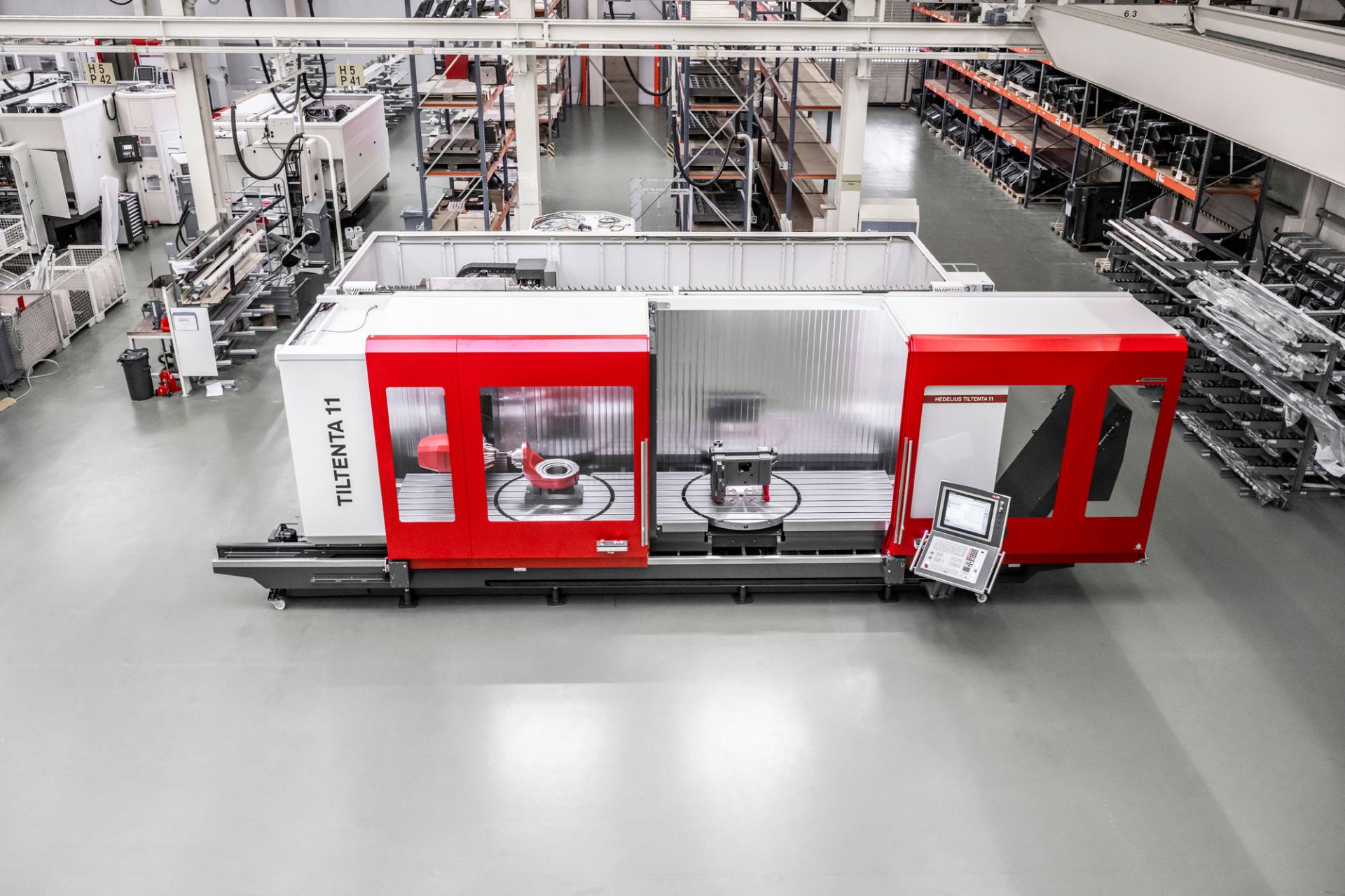

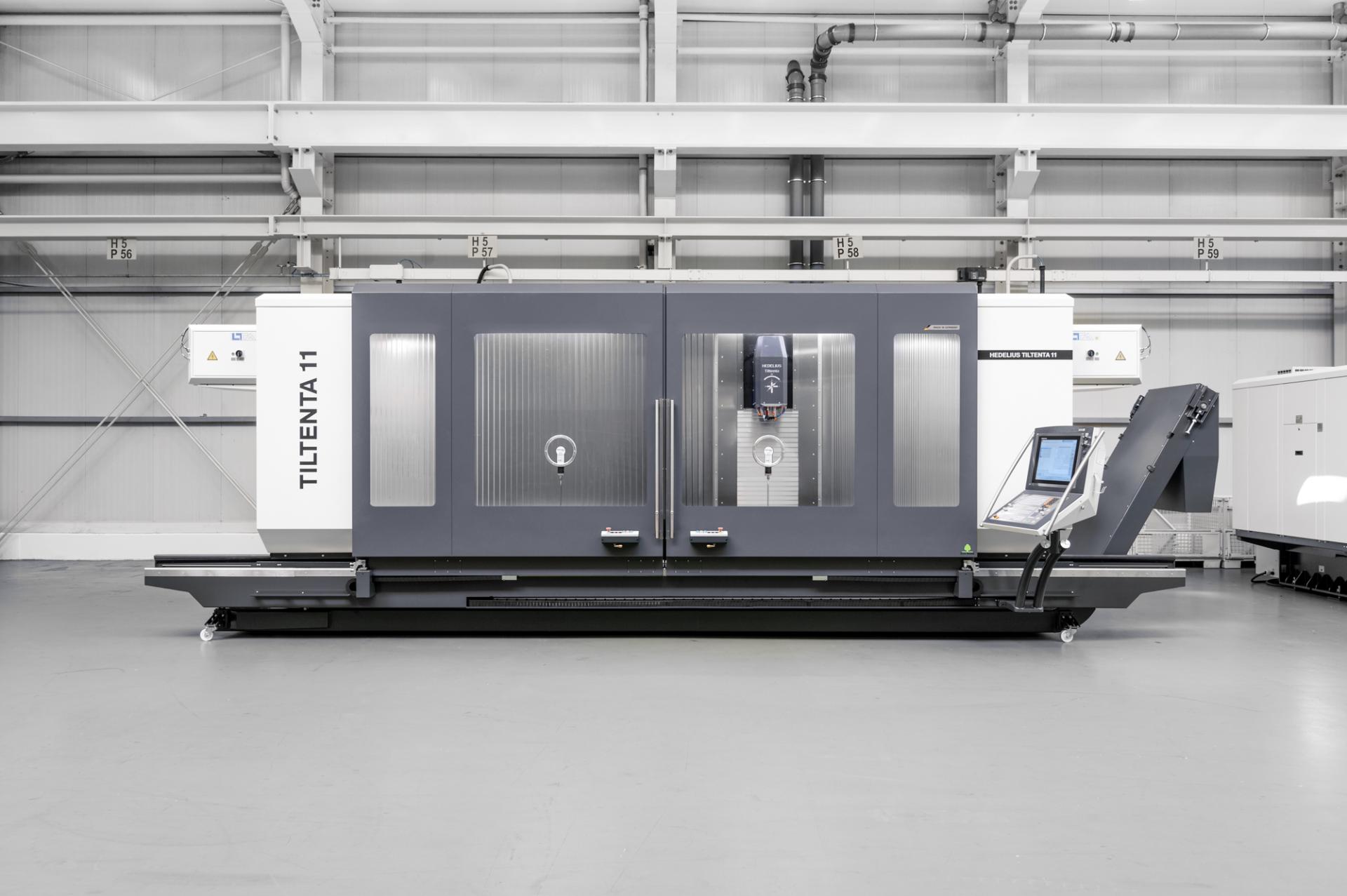

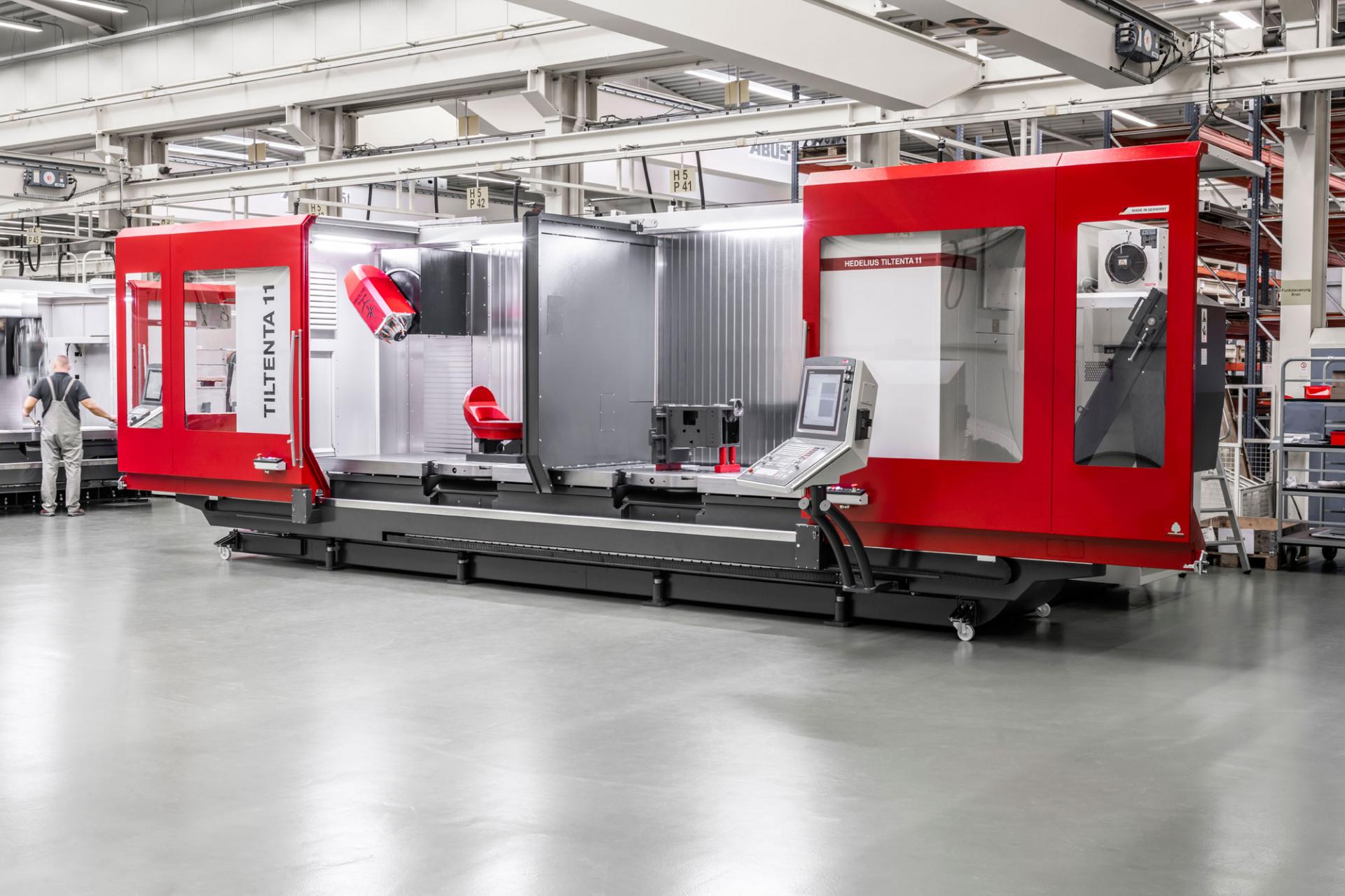

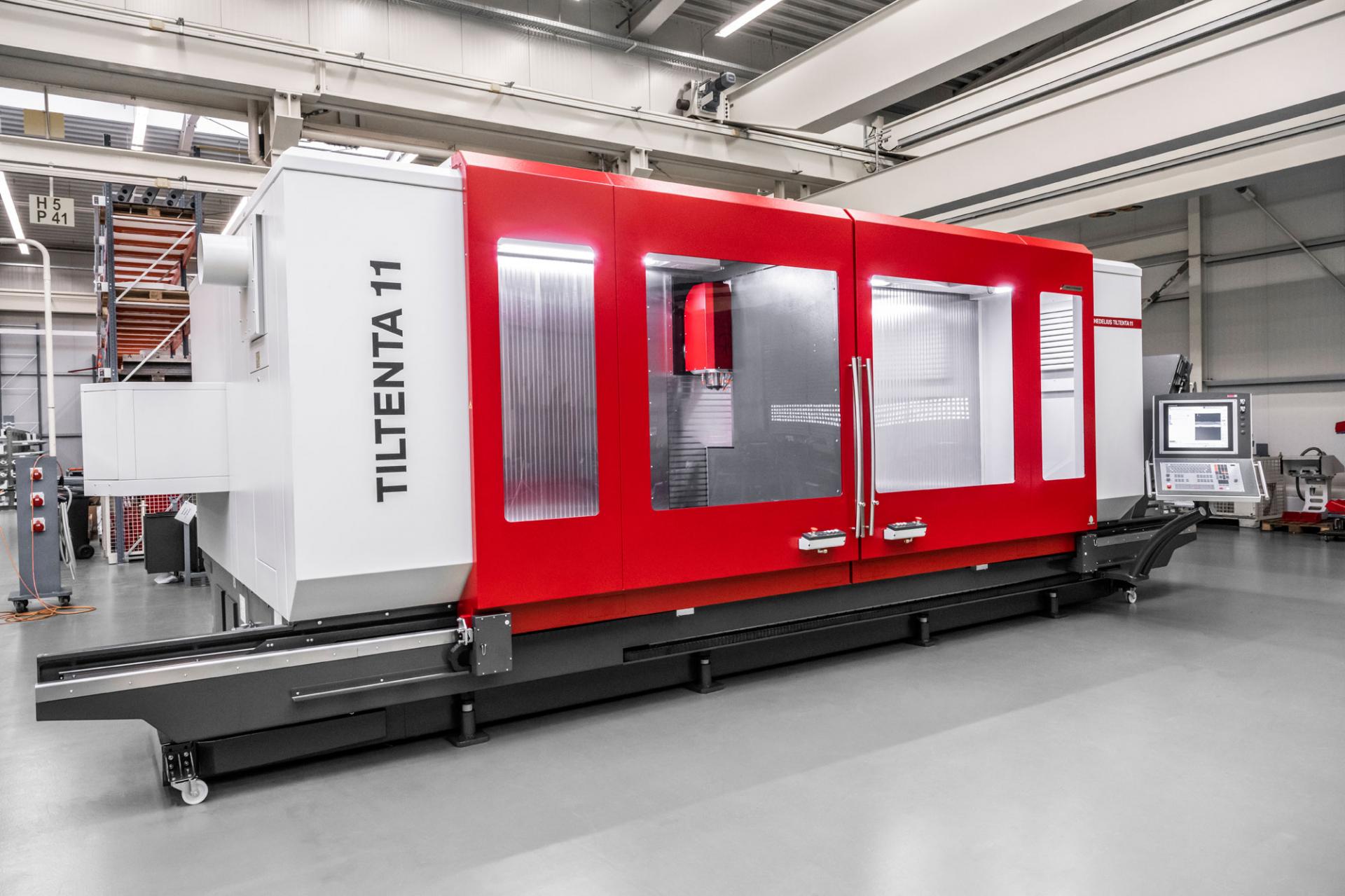

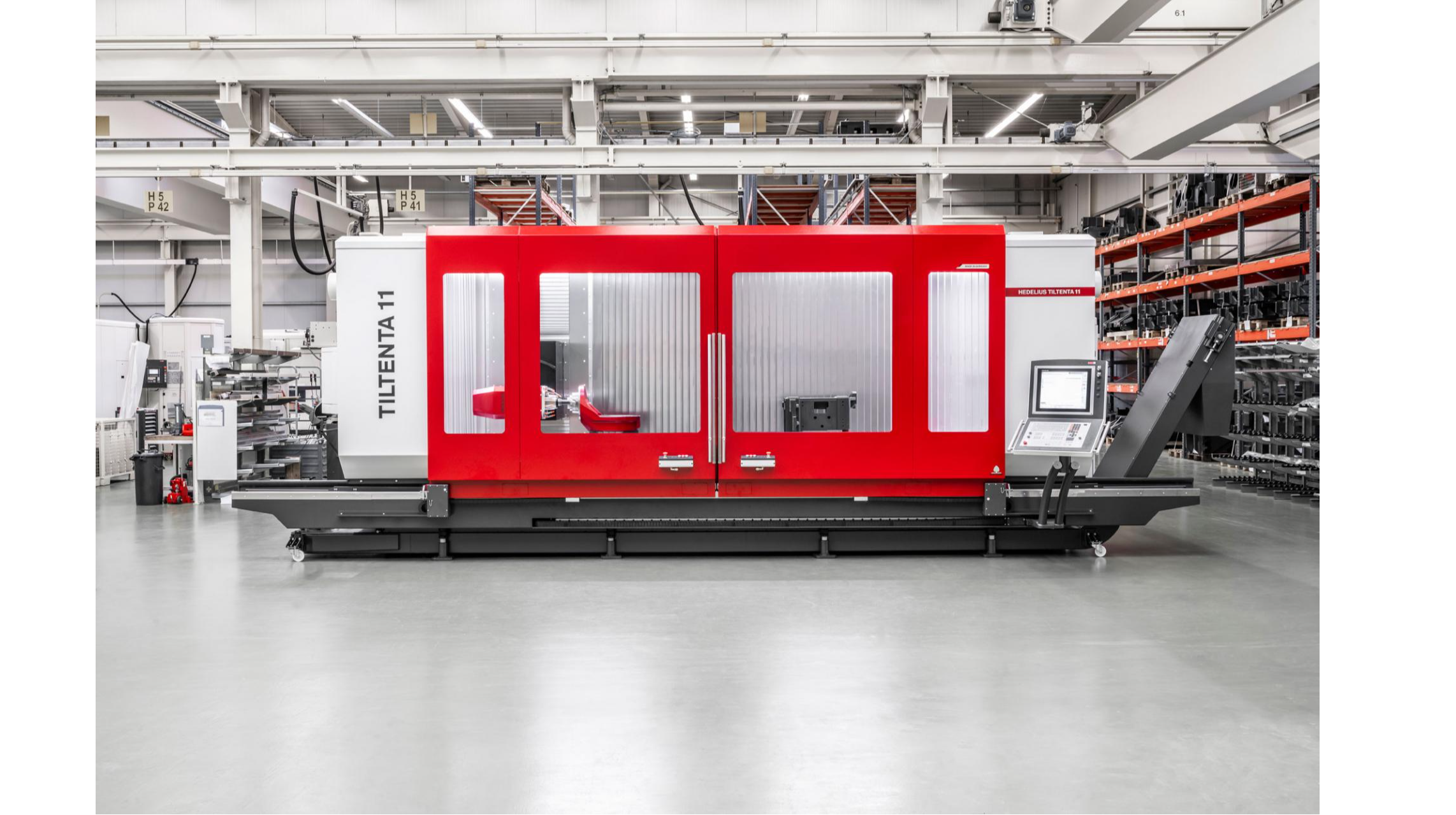

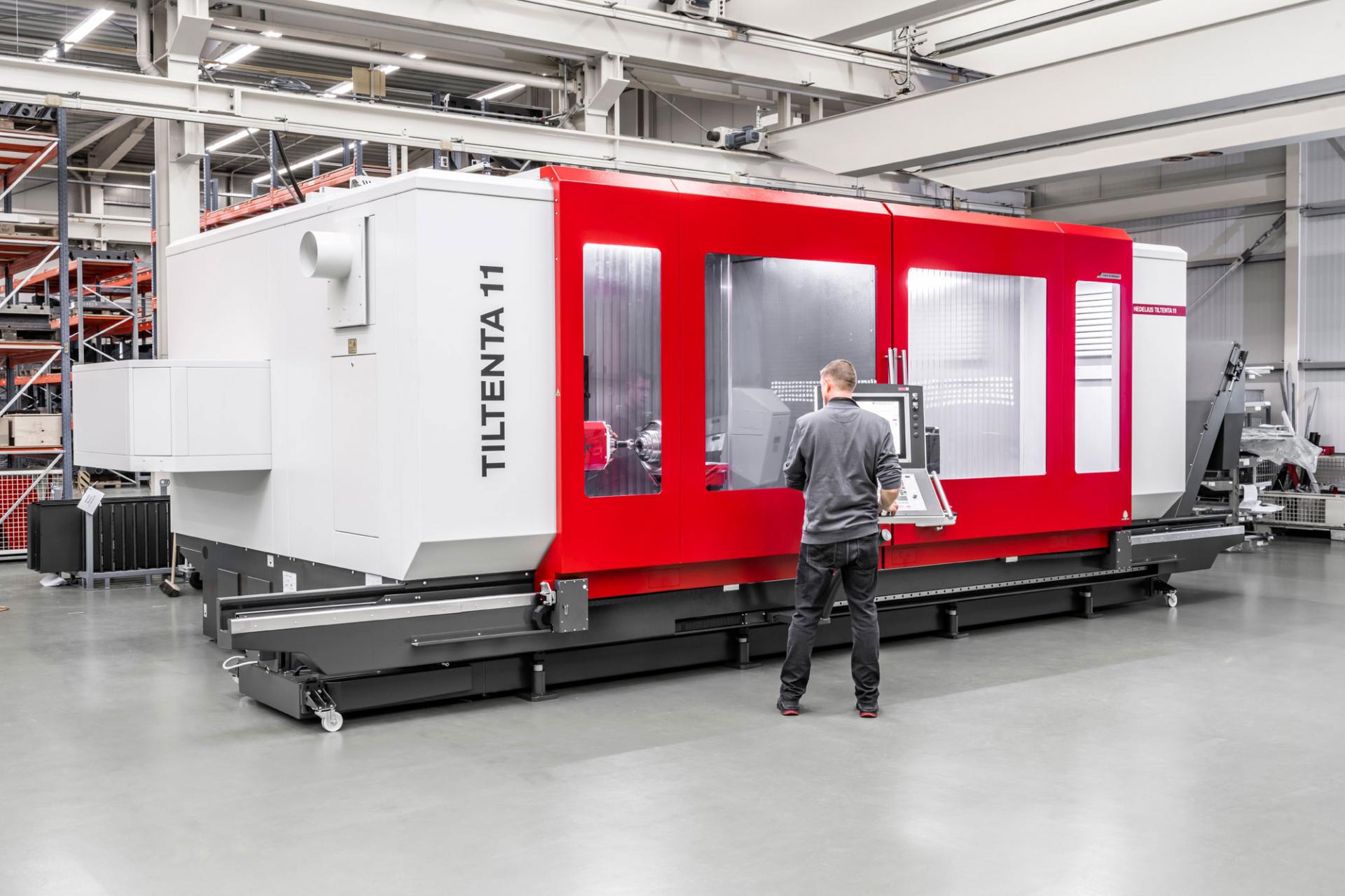

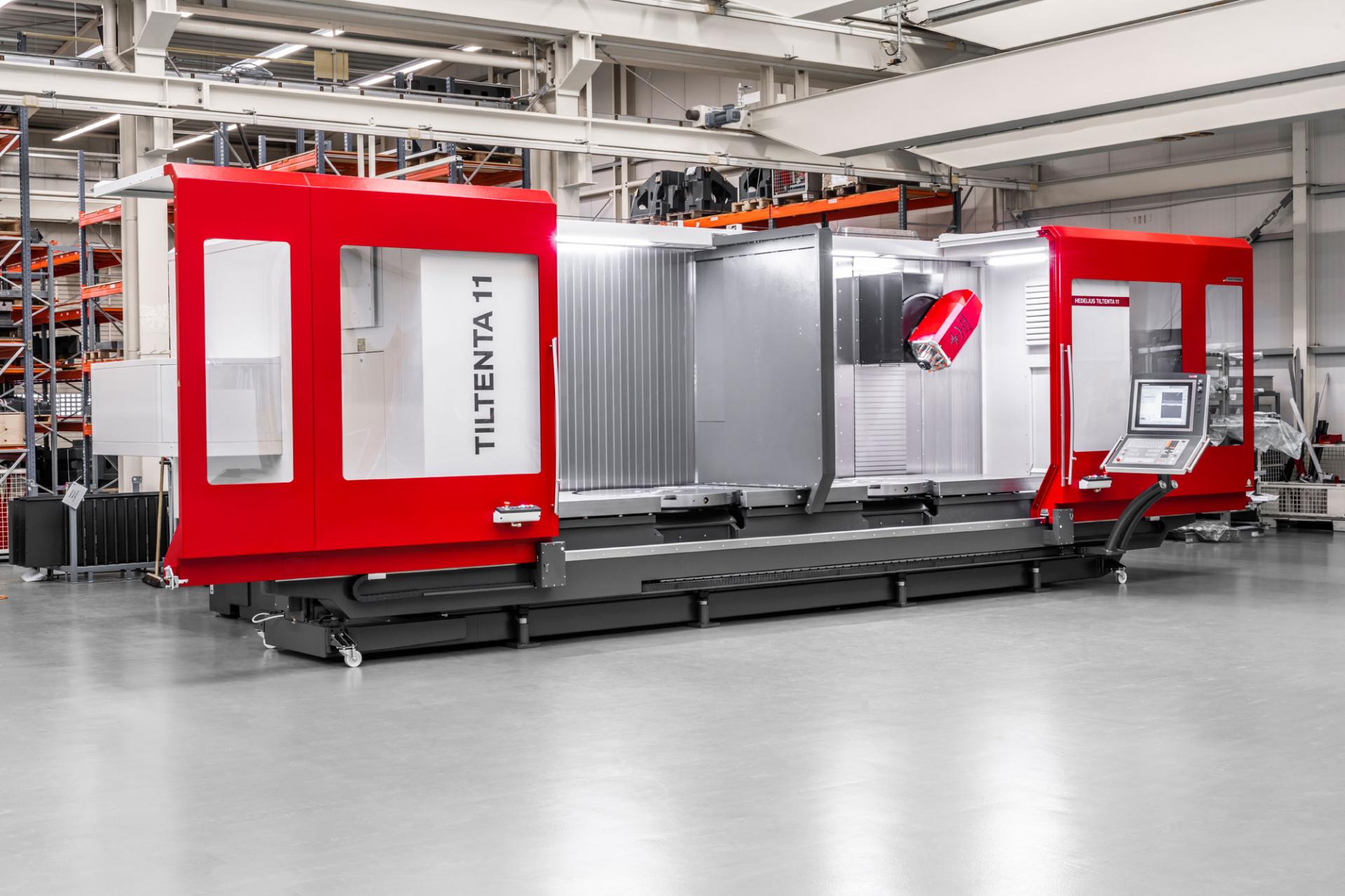

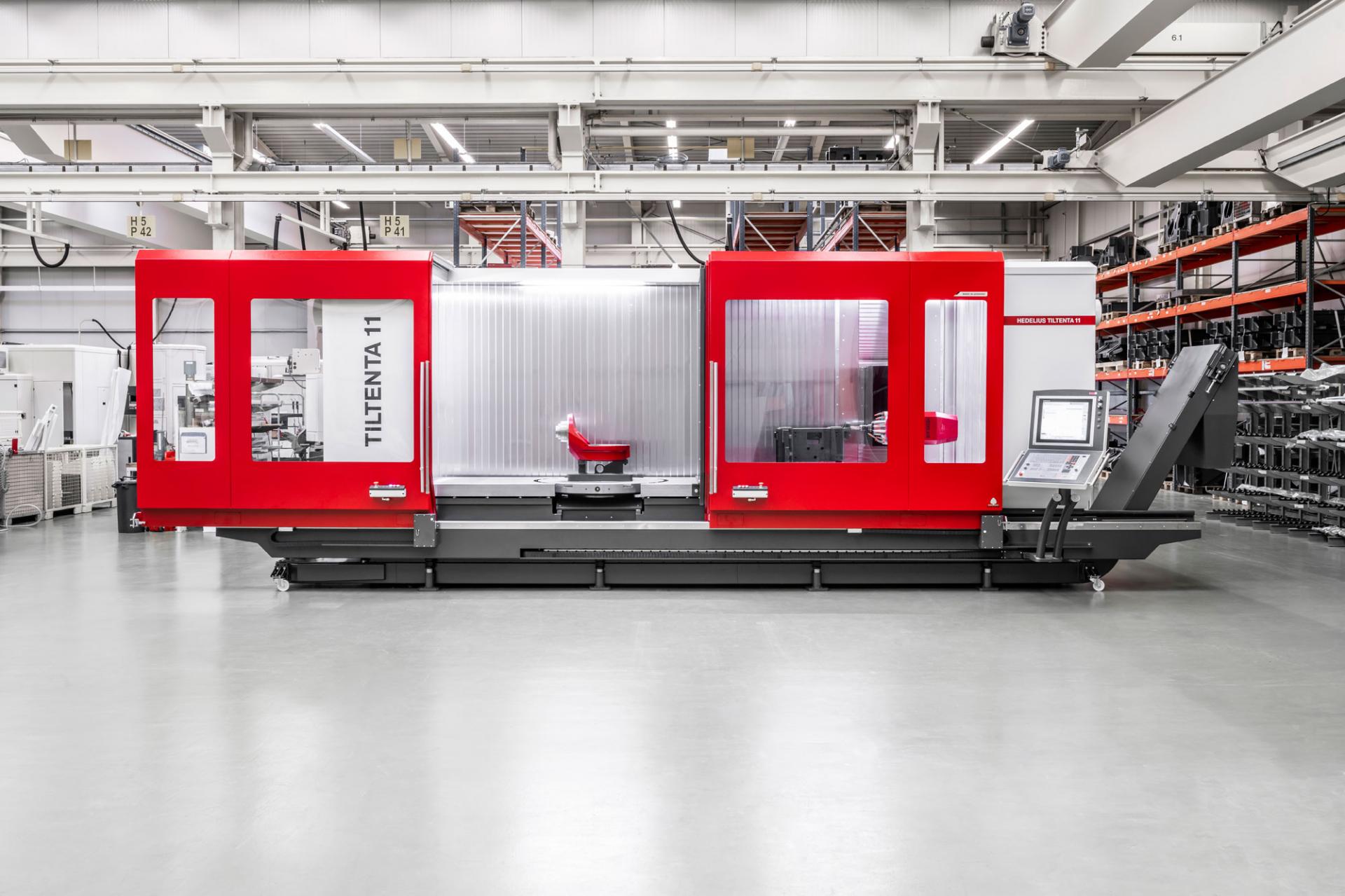

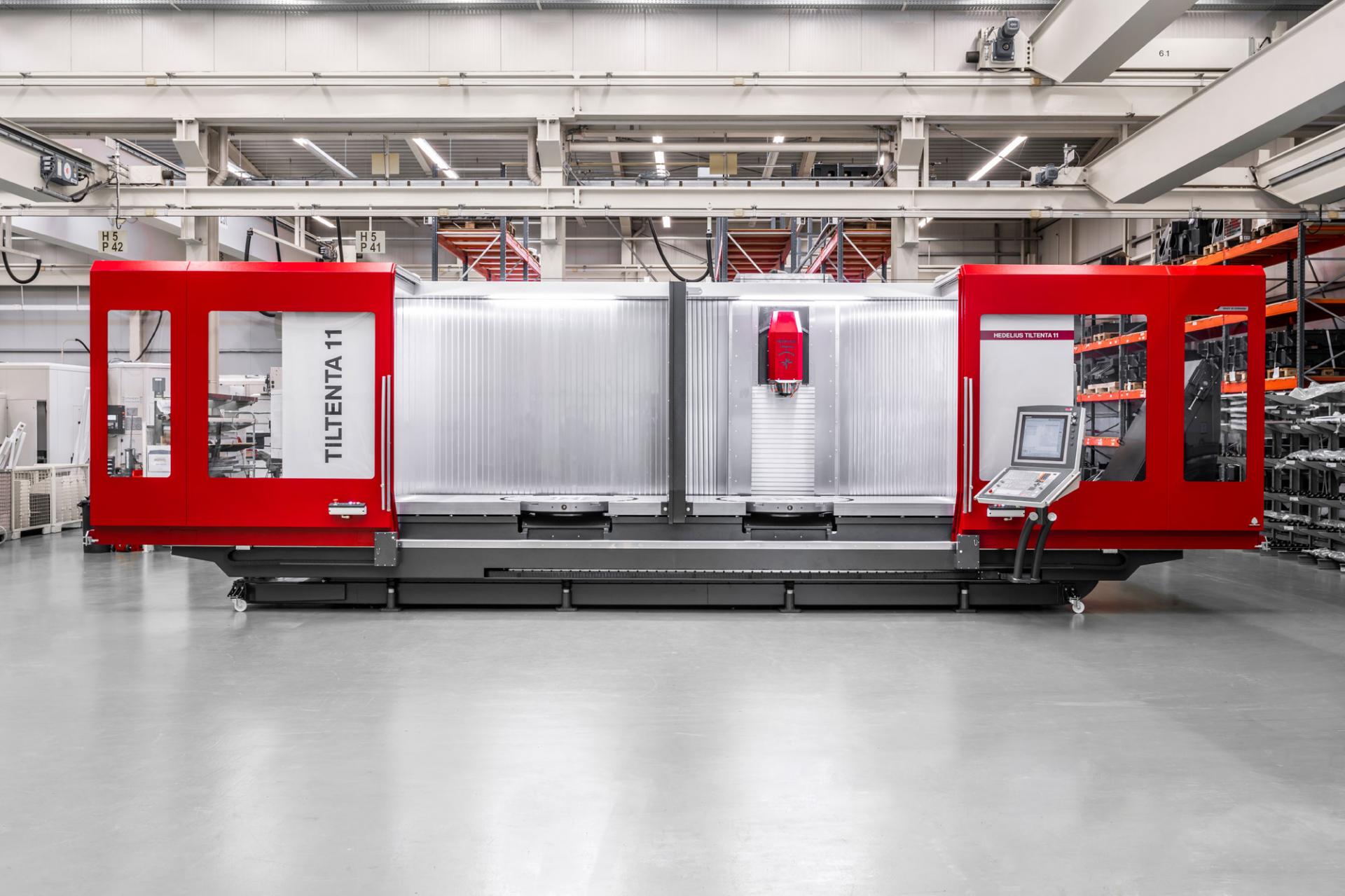

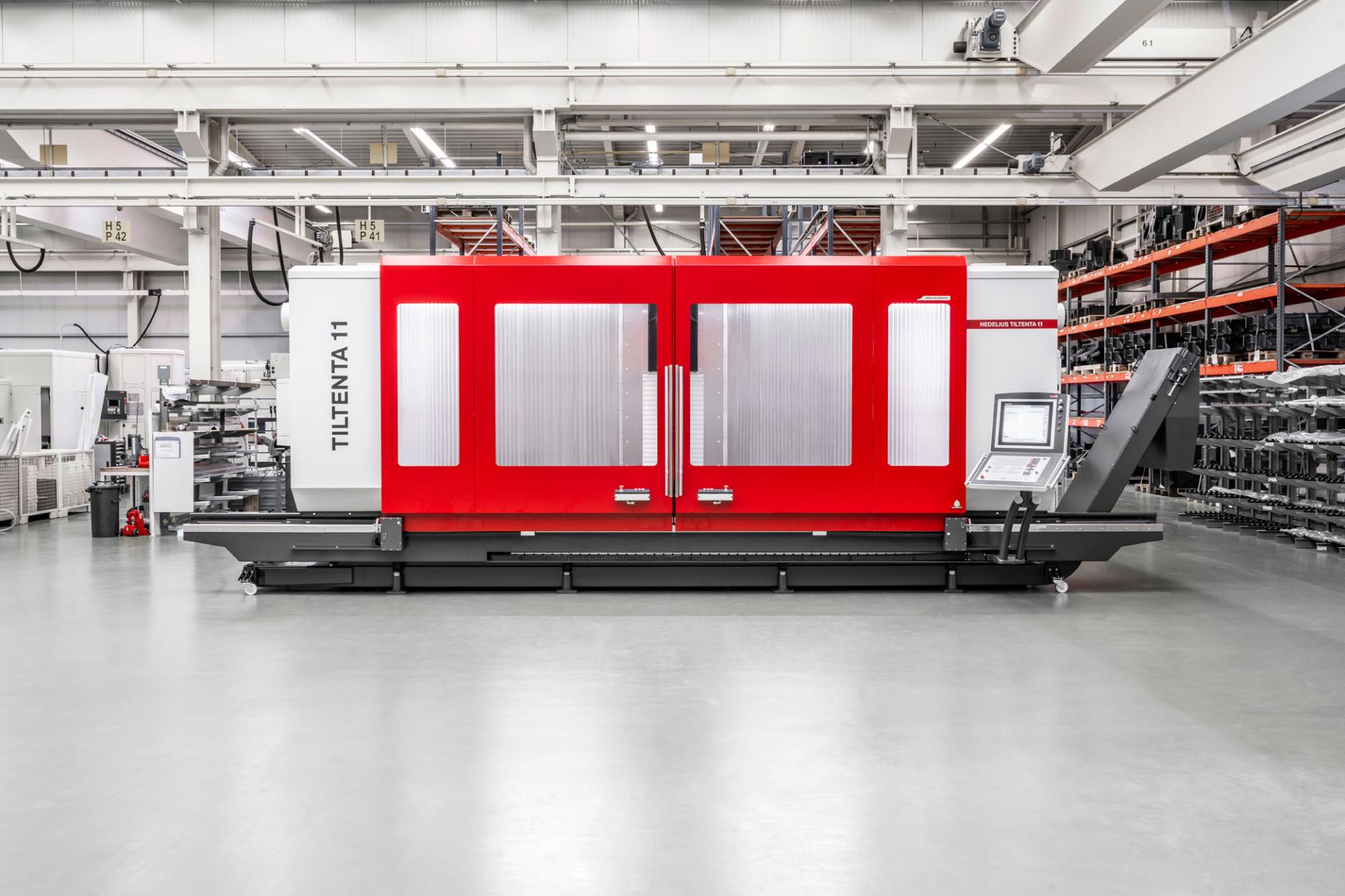

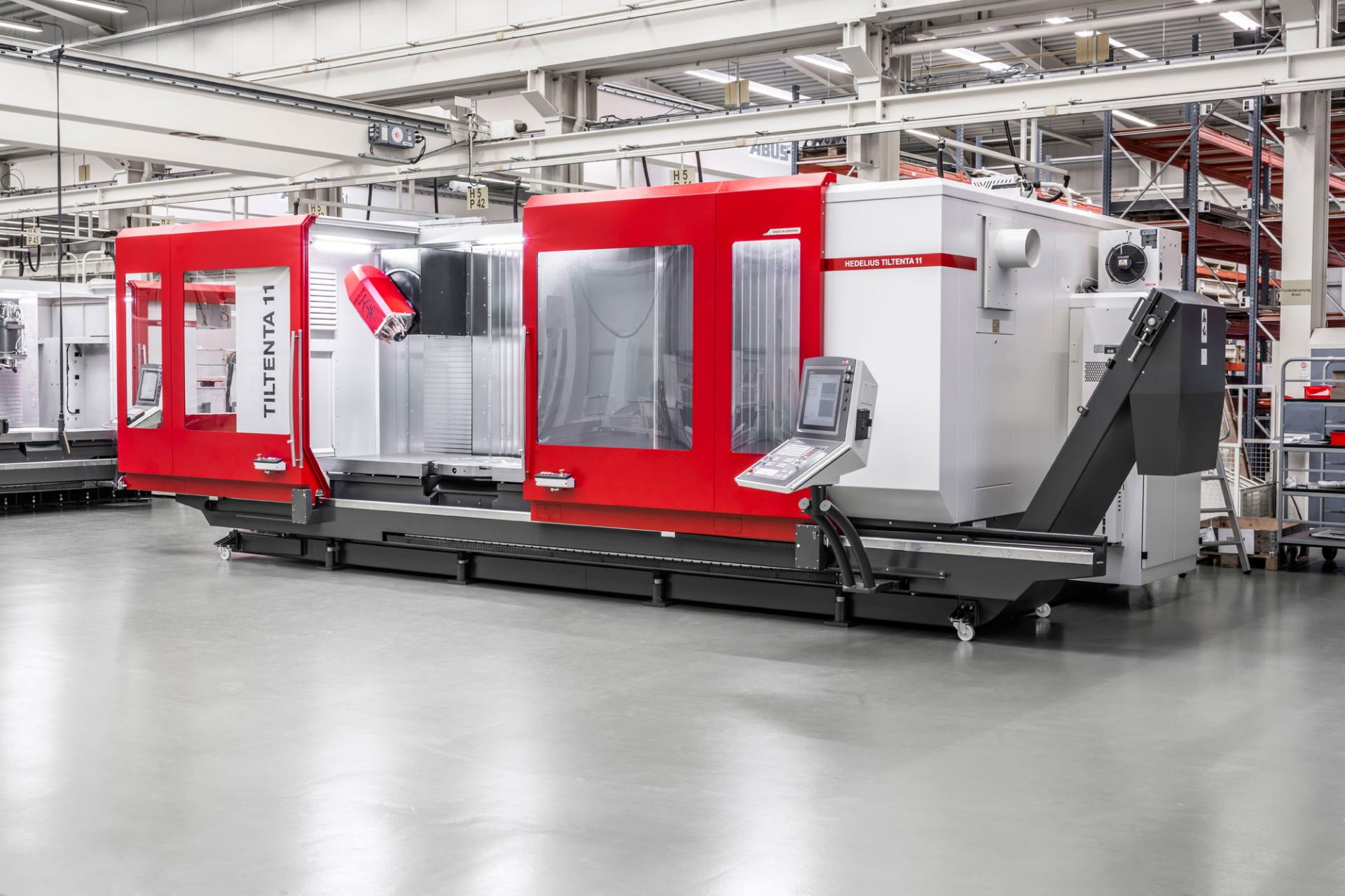

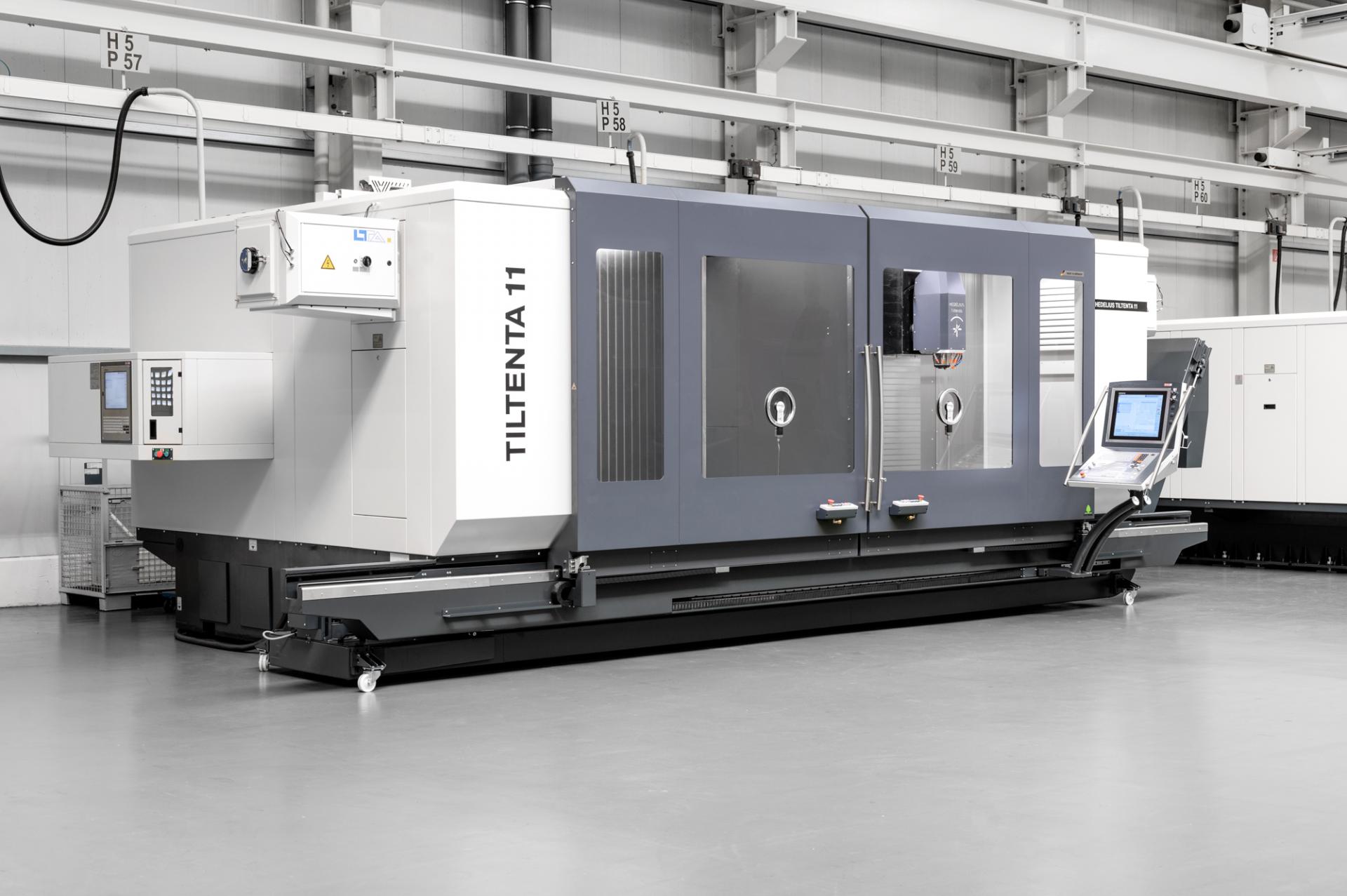

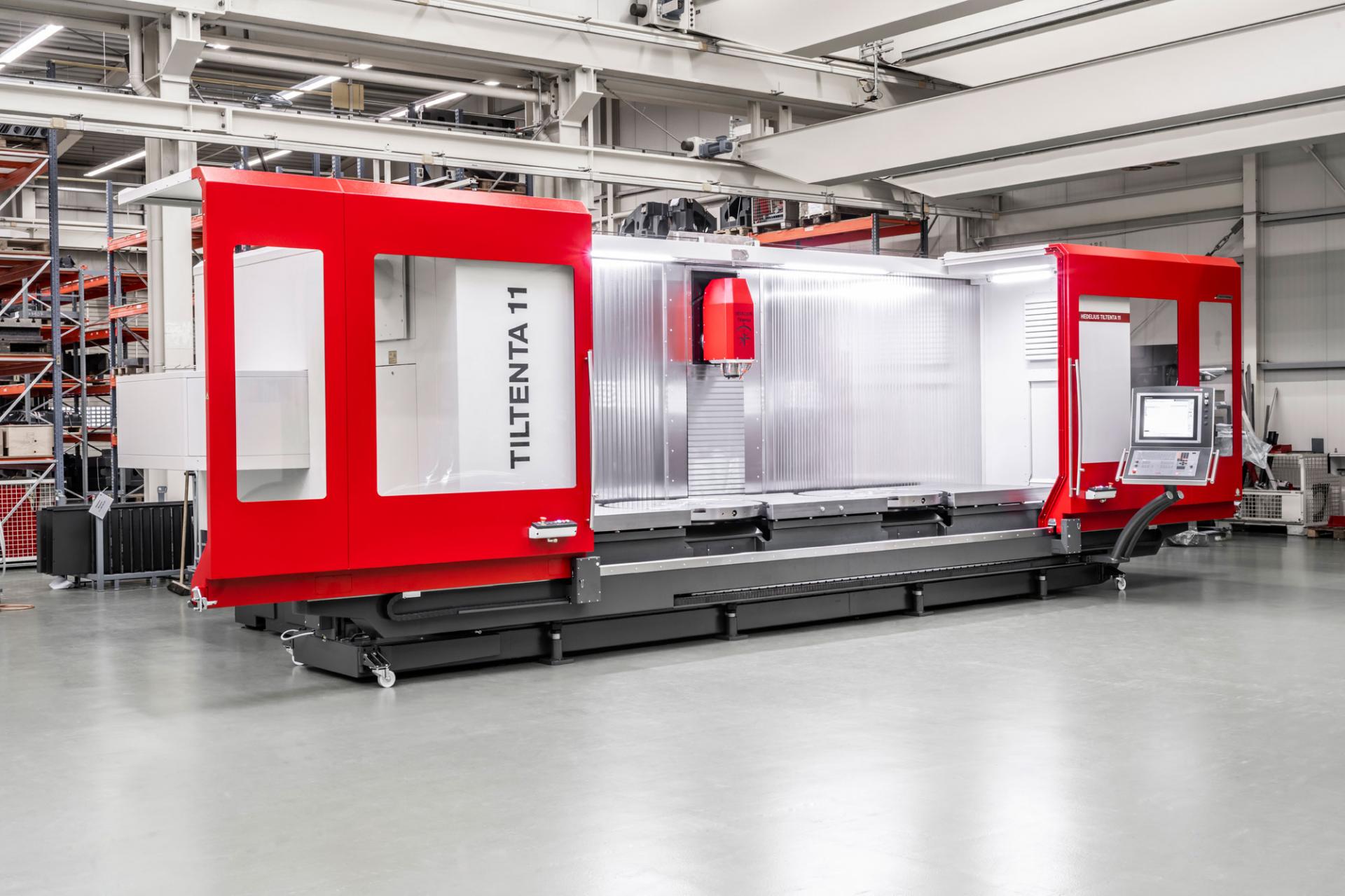

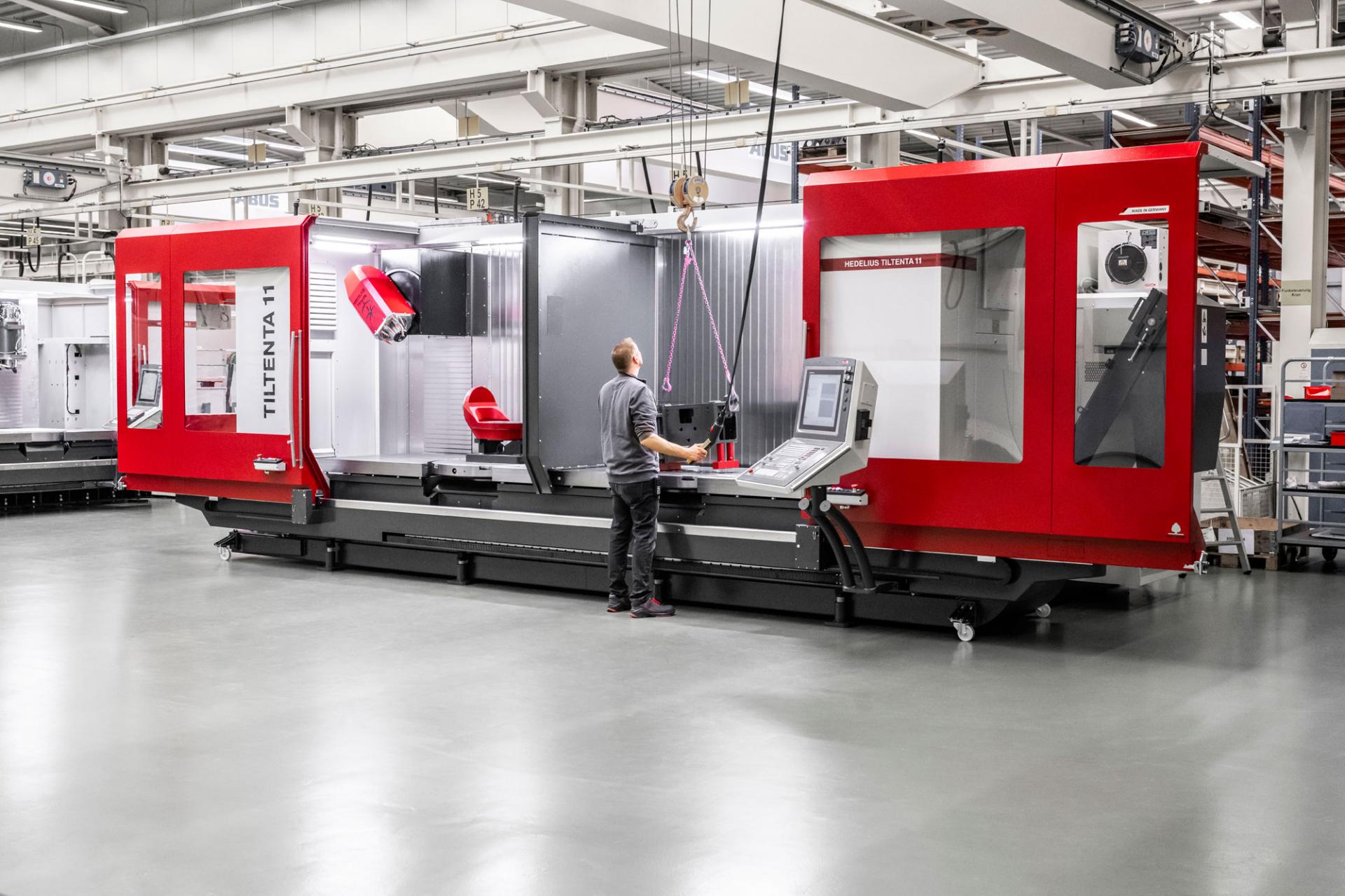

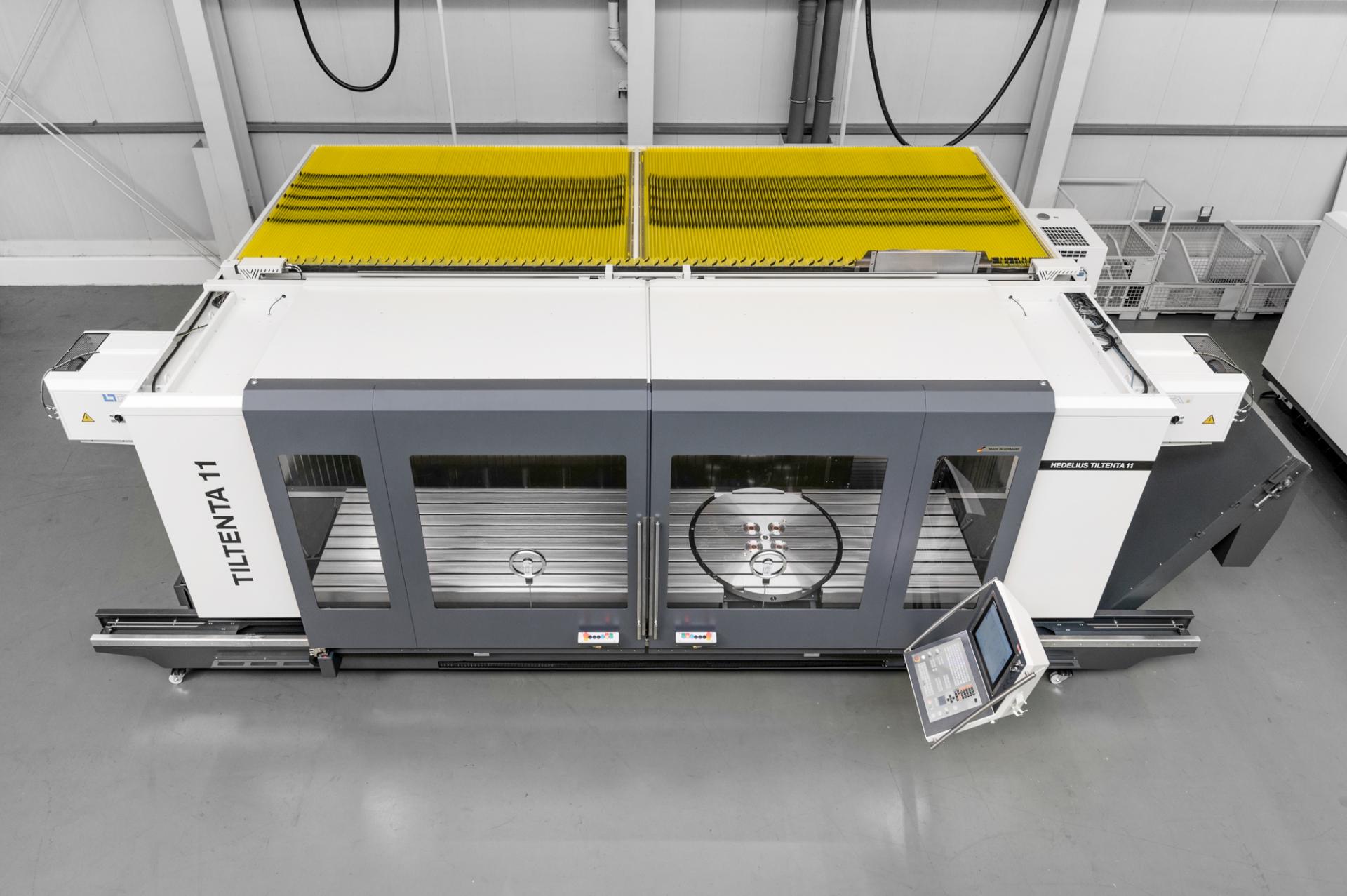

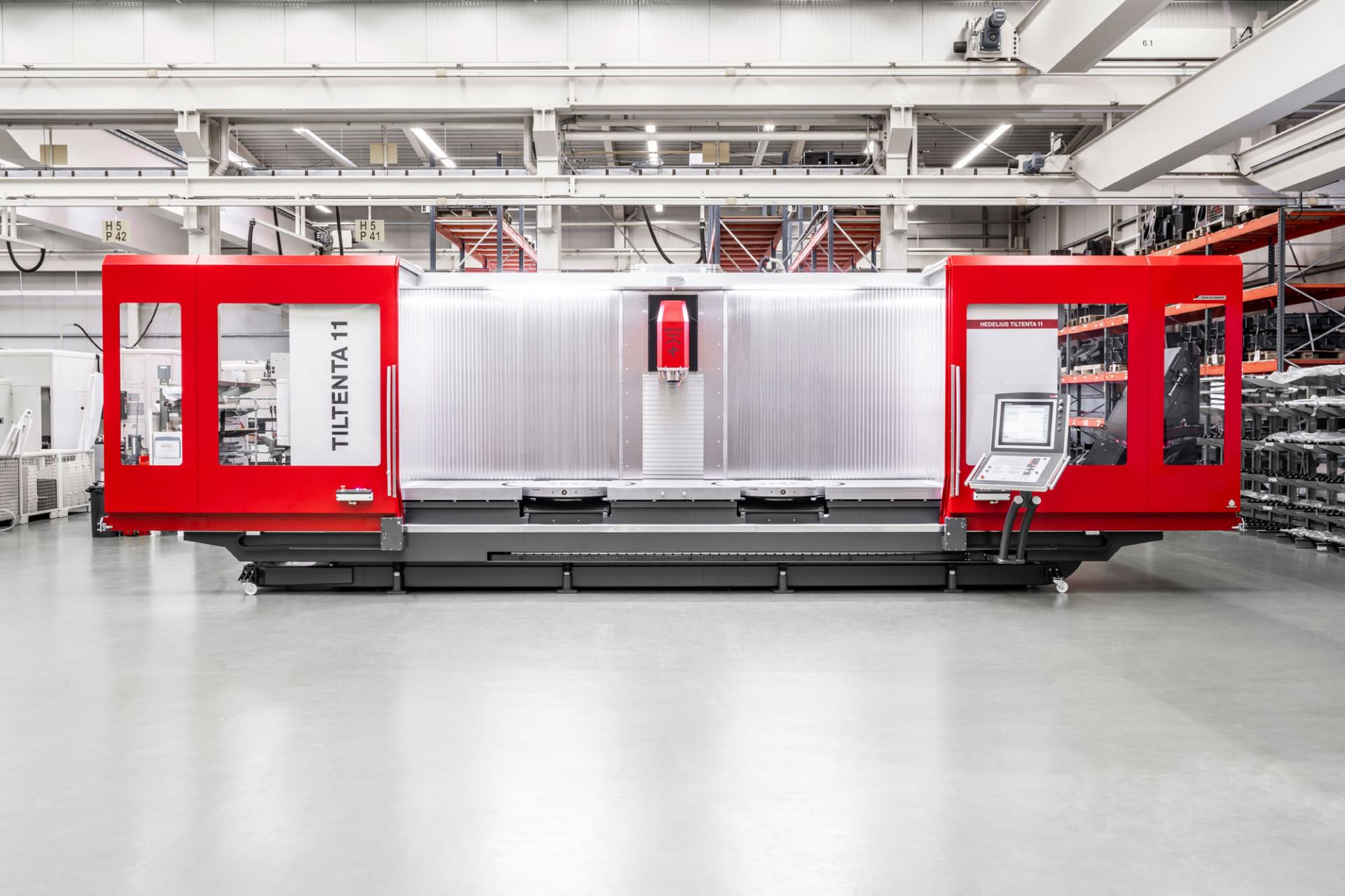

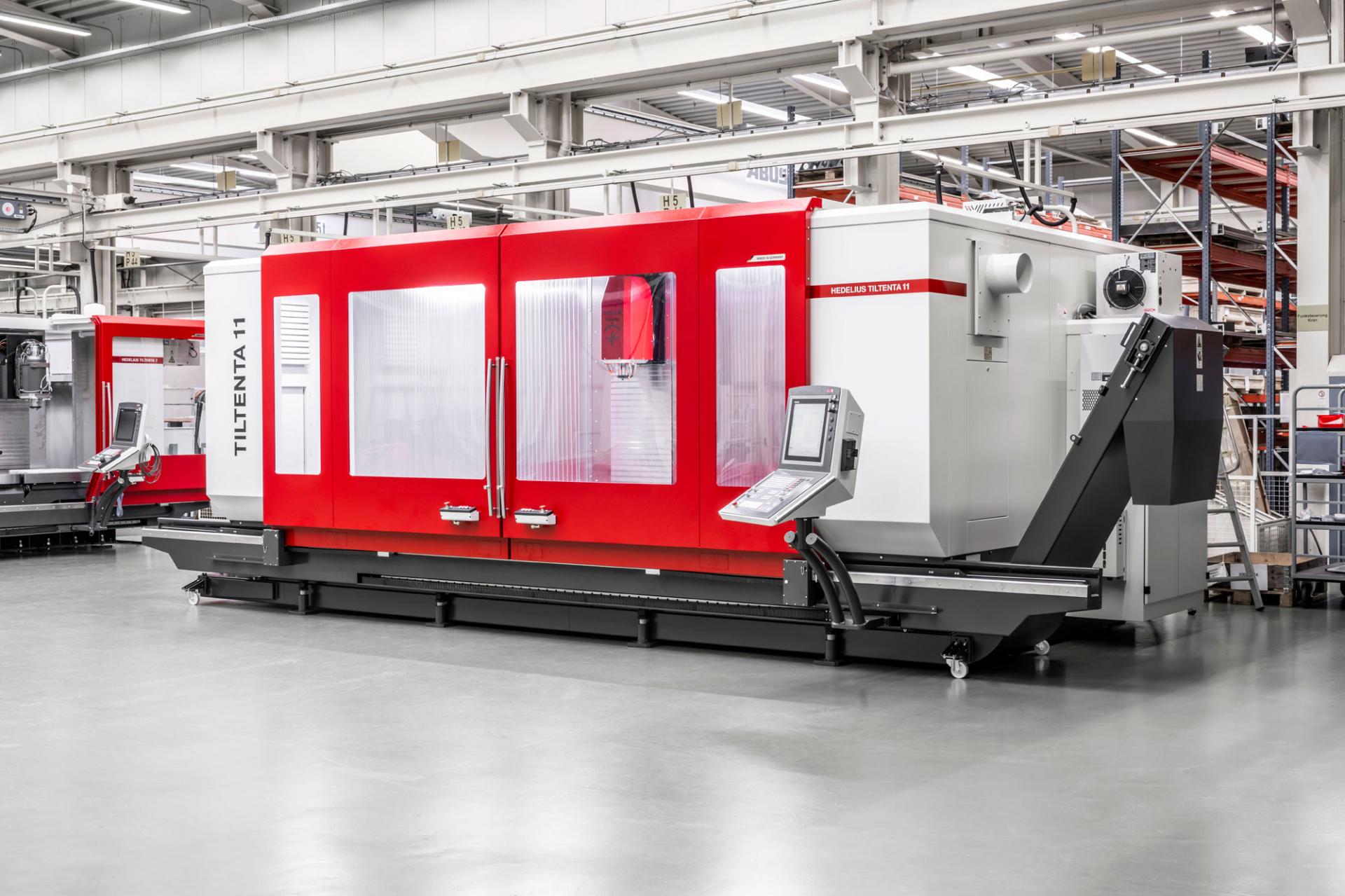

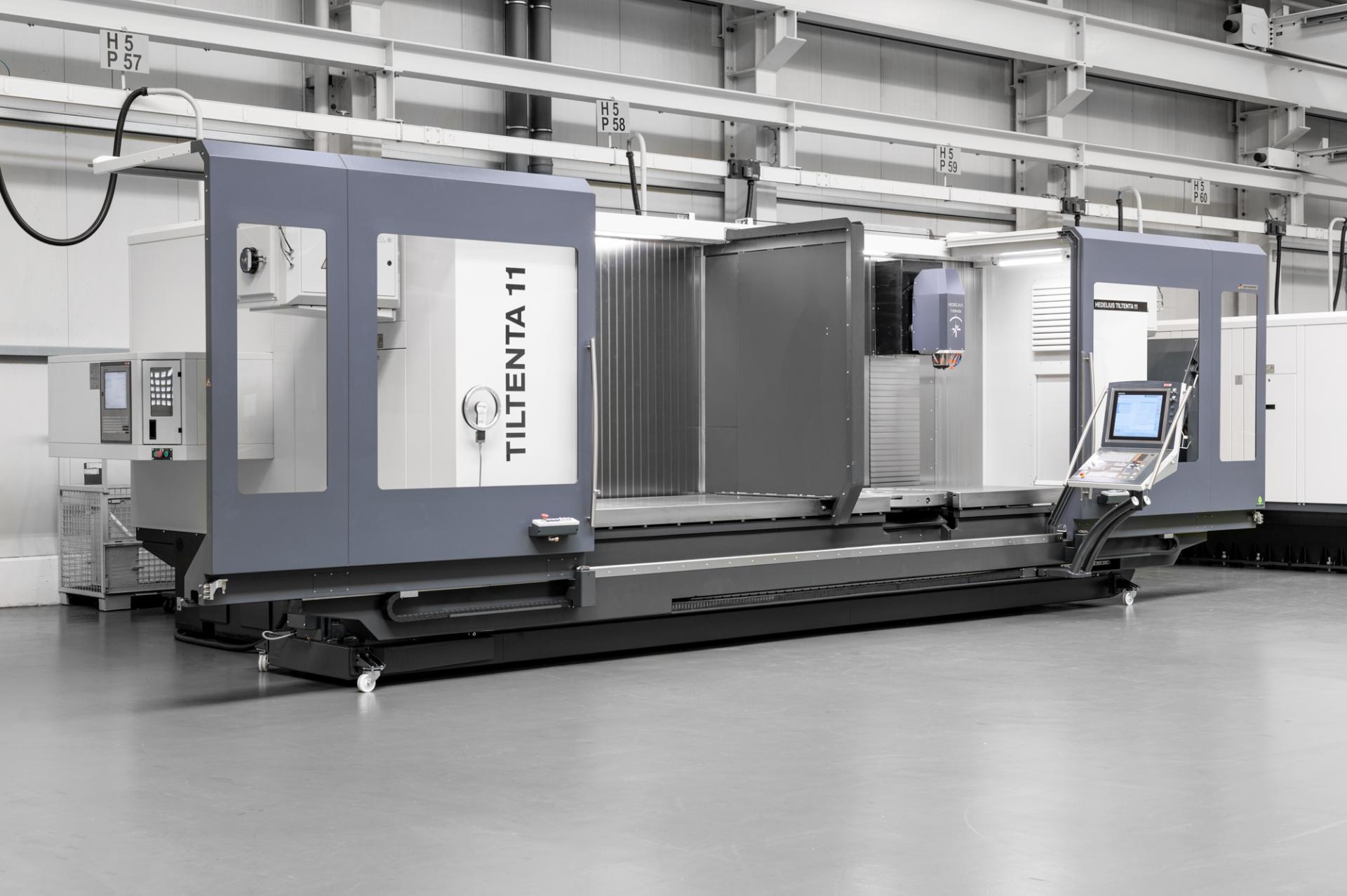

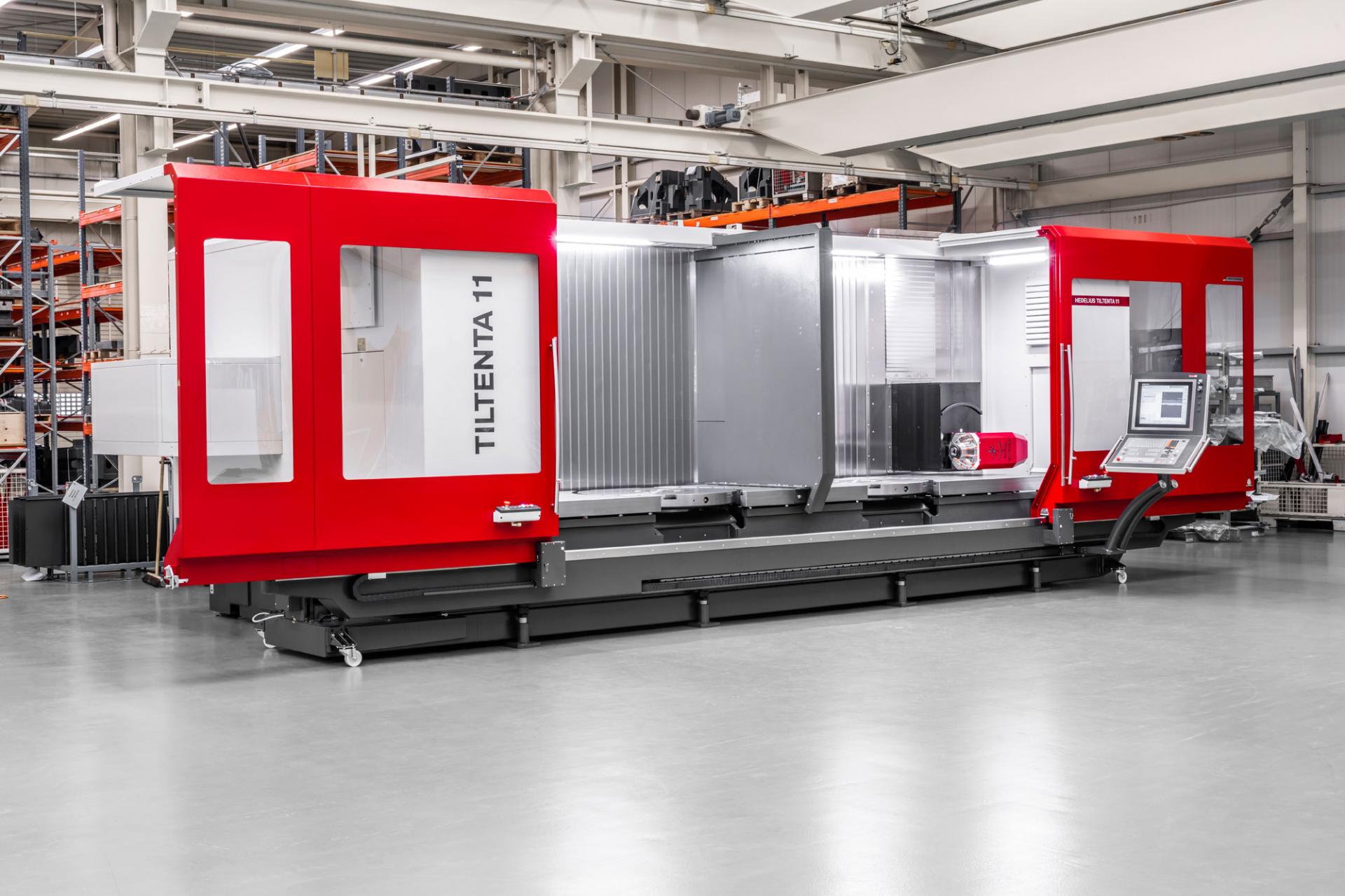

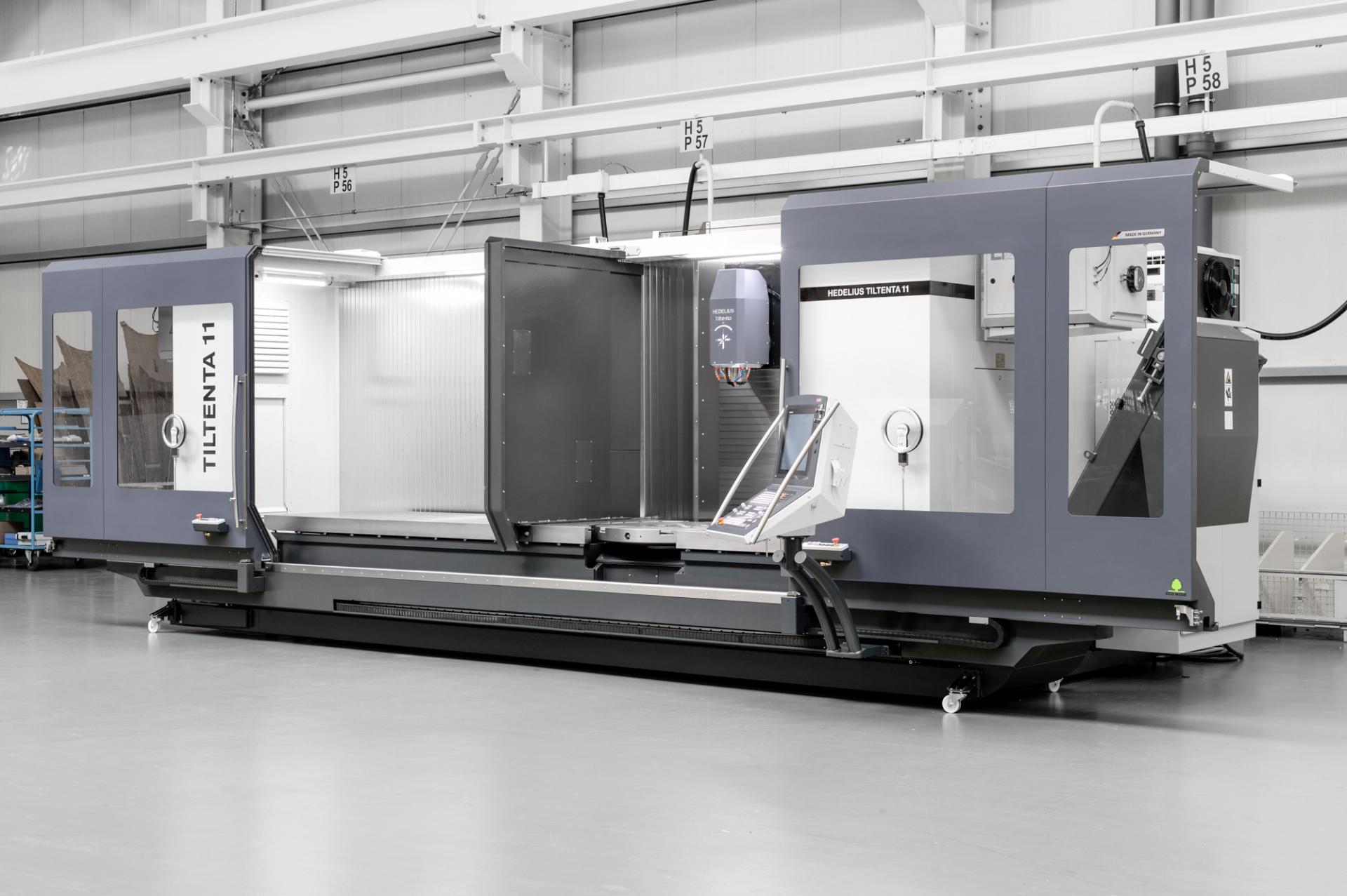

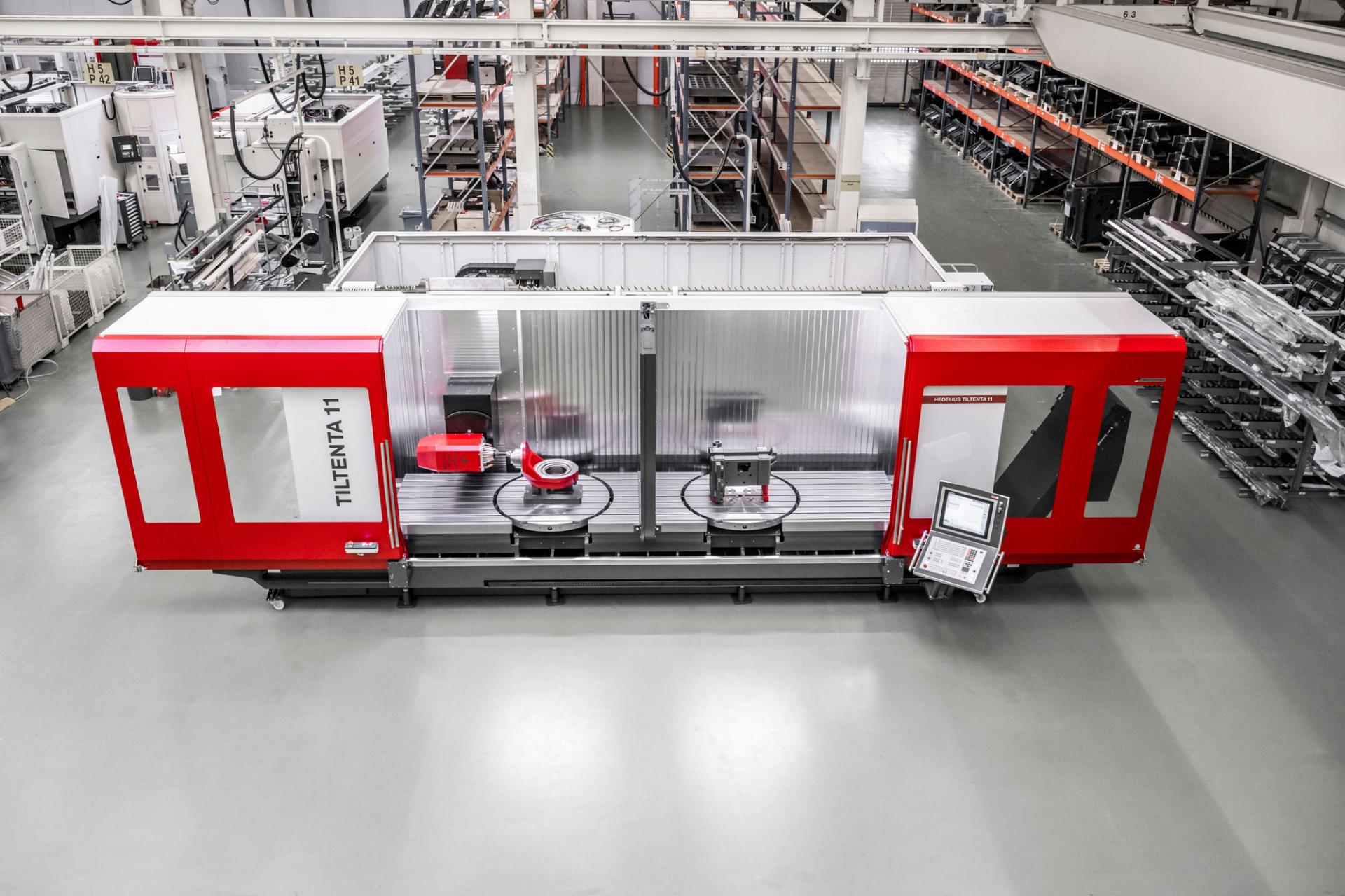

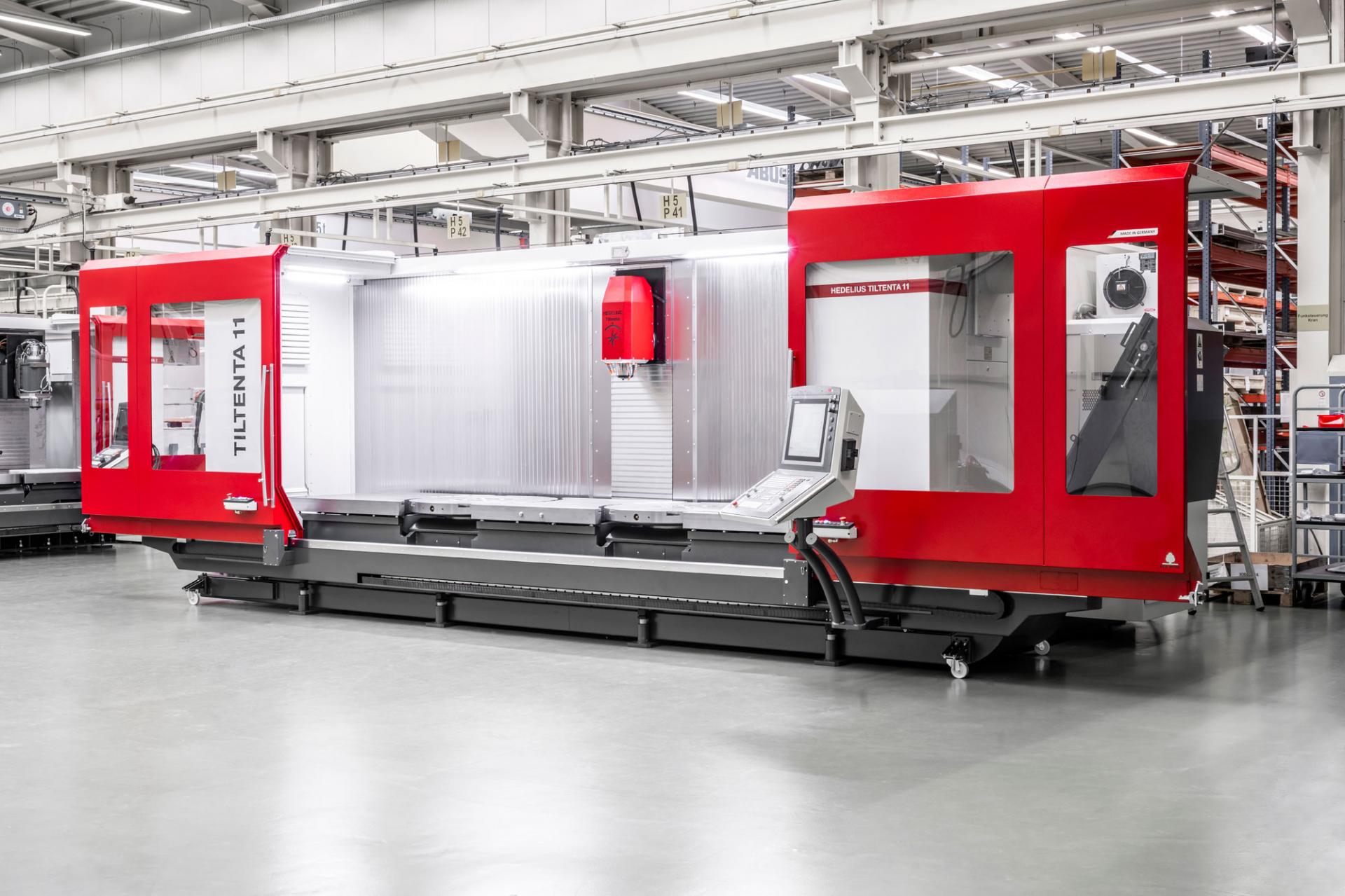

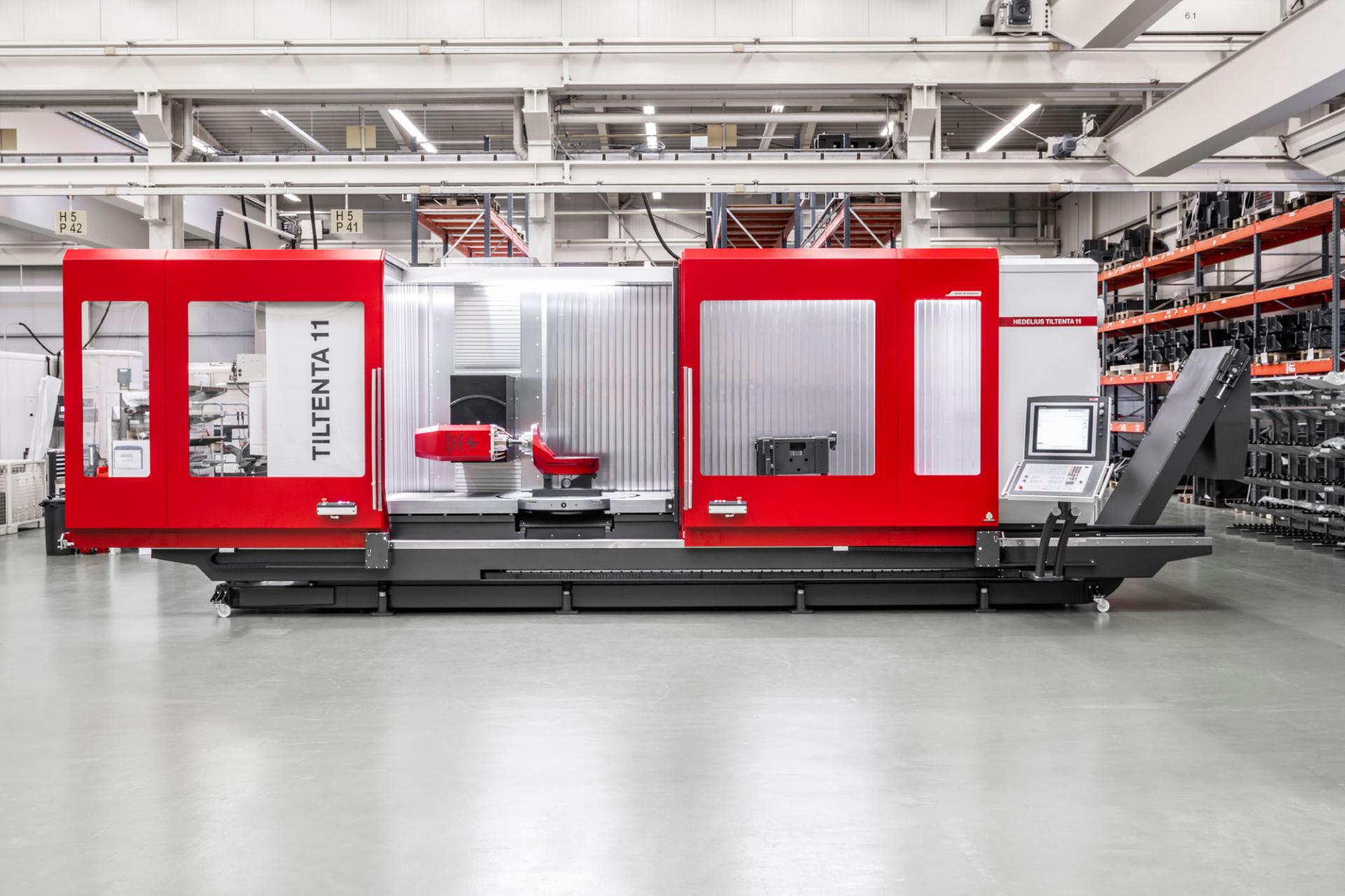

HEDELIUS TILTENTA 11-4600

HEDELIUS TILTENTA 11-4600

orCall +39 0522 1536494

Specifications

ManufacturerHEDELIUS
ModelTILTENTA 11-4600
ConditionNew
CNC ControlHEIDENHAIN TNC7 / SIEMENS SINUMERIK ONE
Spindle tool sizeISO-40
Spindle speed14.000 RPM (opt. 15.000/18.000)
Spindle motor power (cont/30 min)22 kW (opt. 35,00/37,00/50,00)
X axis4.600 mm
Y axis1.100 mm
Z axis900 mm

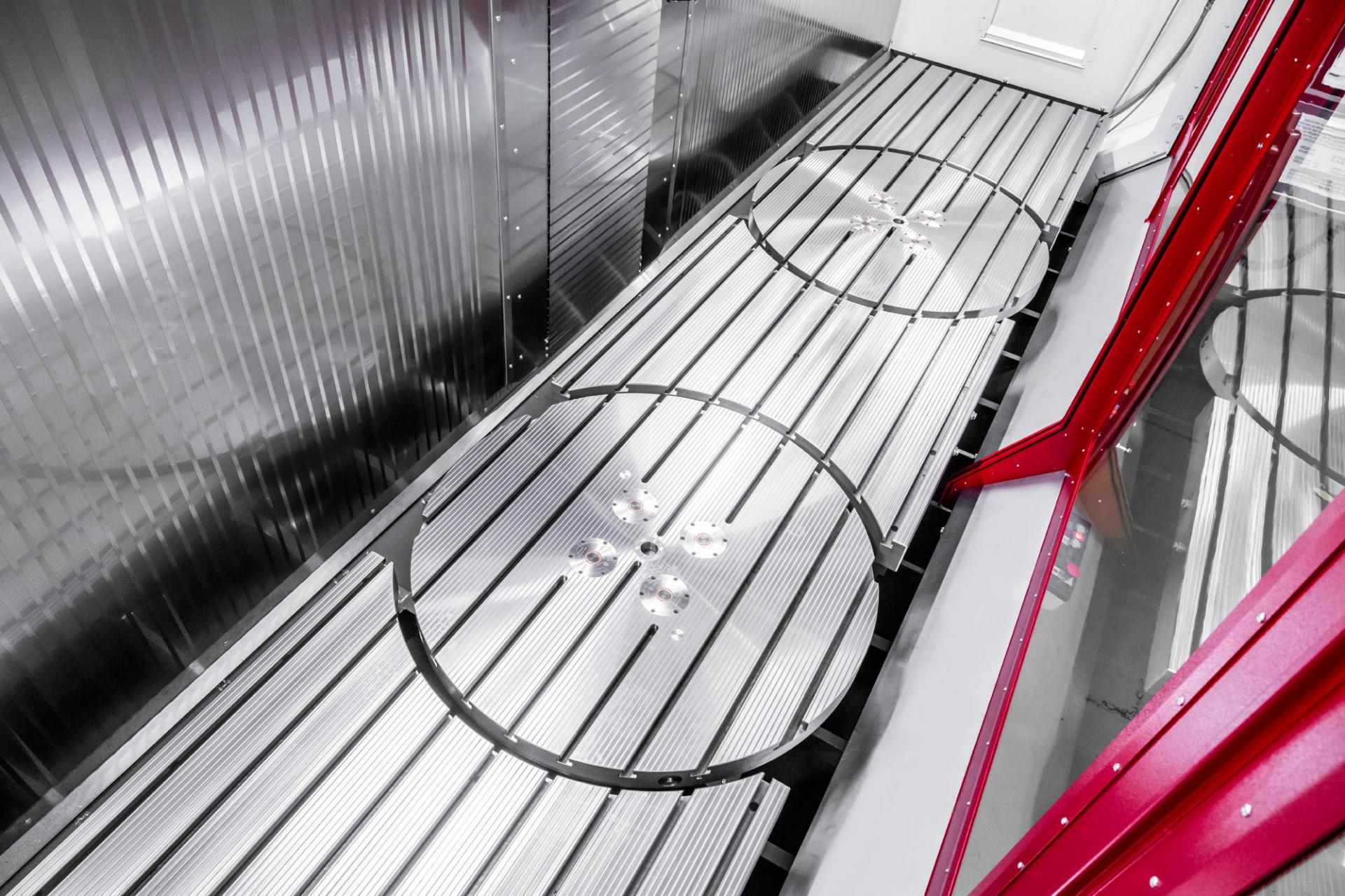

Table dimensions5.080 x 1.100 mm
Max load allowed on table6.000 kg

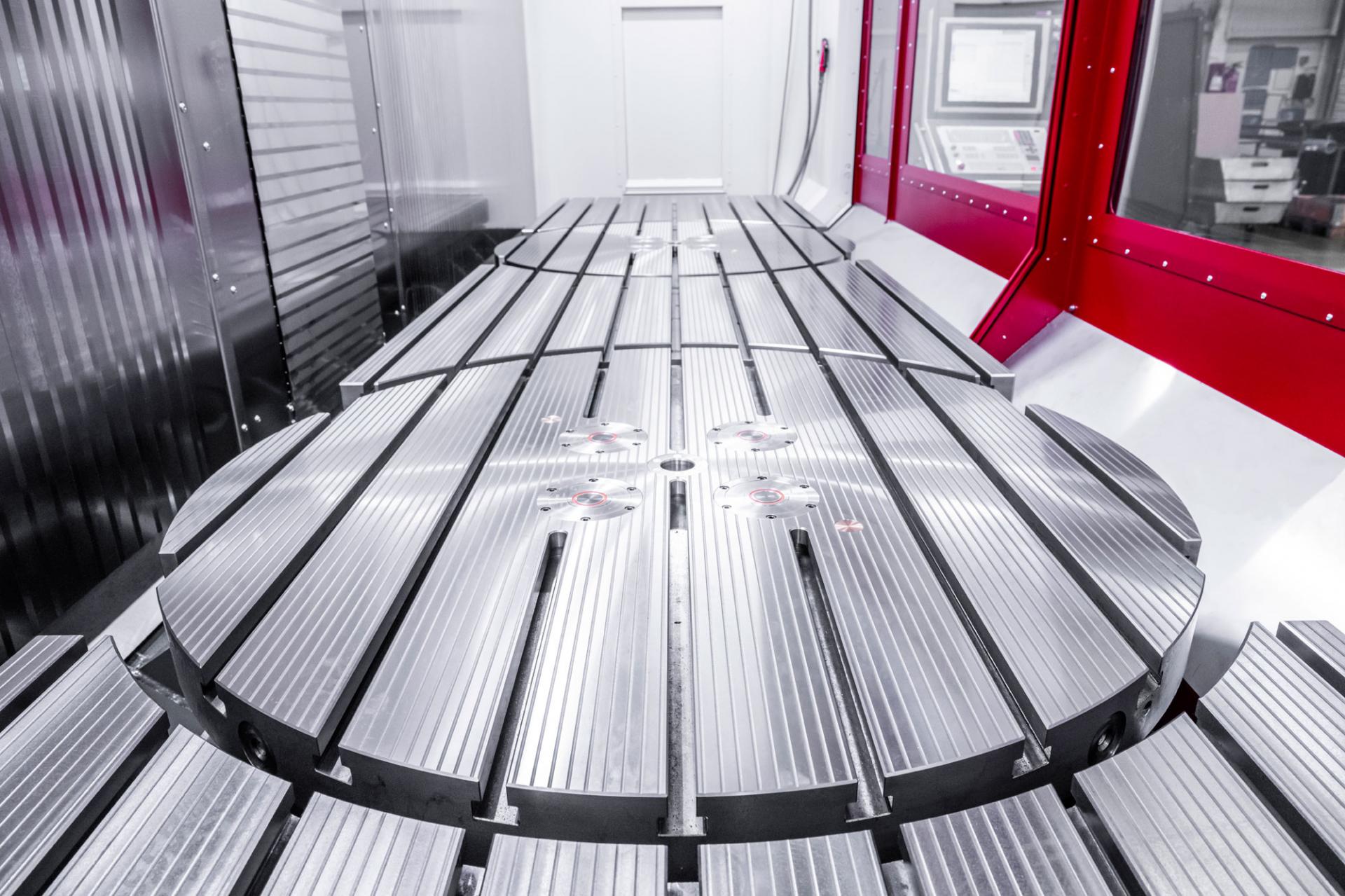

Rotary table diameter (1R opt)Ø 1.140 mm
Max weight on rotary table1.800 kg
Max diameter of the workpiece on rotary tableØ 1.450 mm
Tilting angle of the spindle head-5° – +98°/-98° – +98°
X / Y / Z axis rapid feedrates40/40/40 m/min
Tool typeSK40 / BT40 / HSK A63
ATC capicity65 positions standard (opt. 245/329)
AccessoriesChip-conveyor, coolant tank with washing pumps, Manuals, Electrical diagrams and CE Declaration
