2007 Doosan VT-900M
2007 Doosan VT-900M
or
Call +39 0522 1536494
Specifications
| Manufacturer | Doosan |
| Model | VT-900M |
| Year | 2007 |
| Condition | Used |

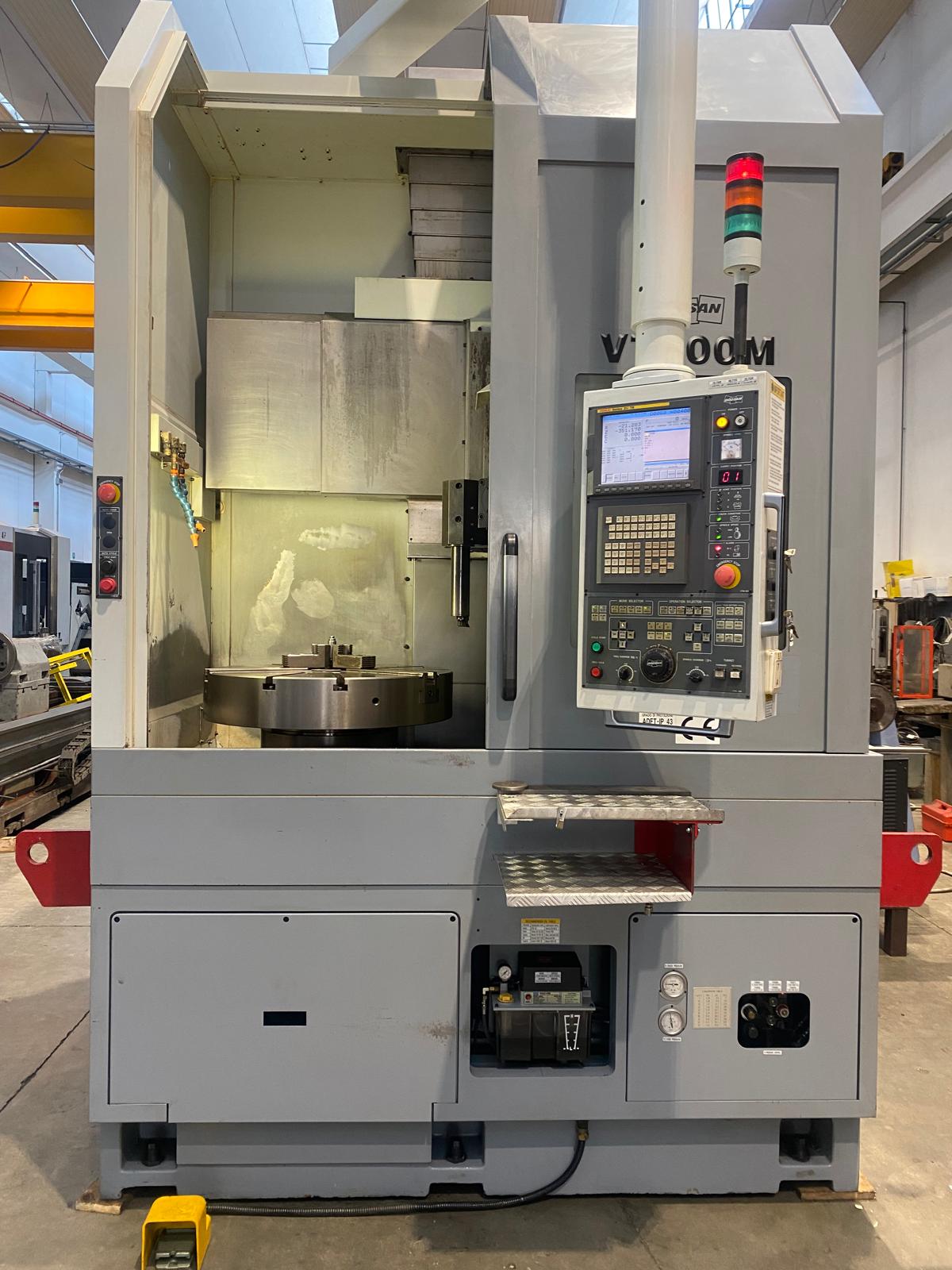

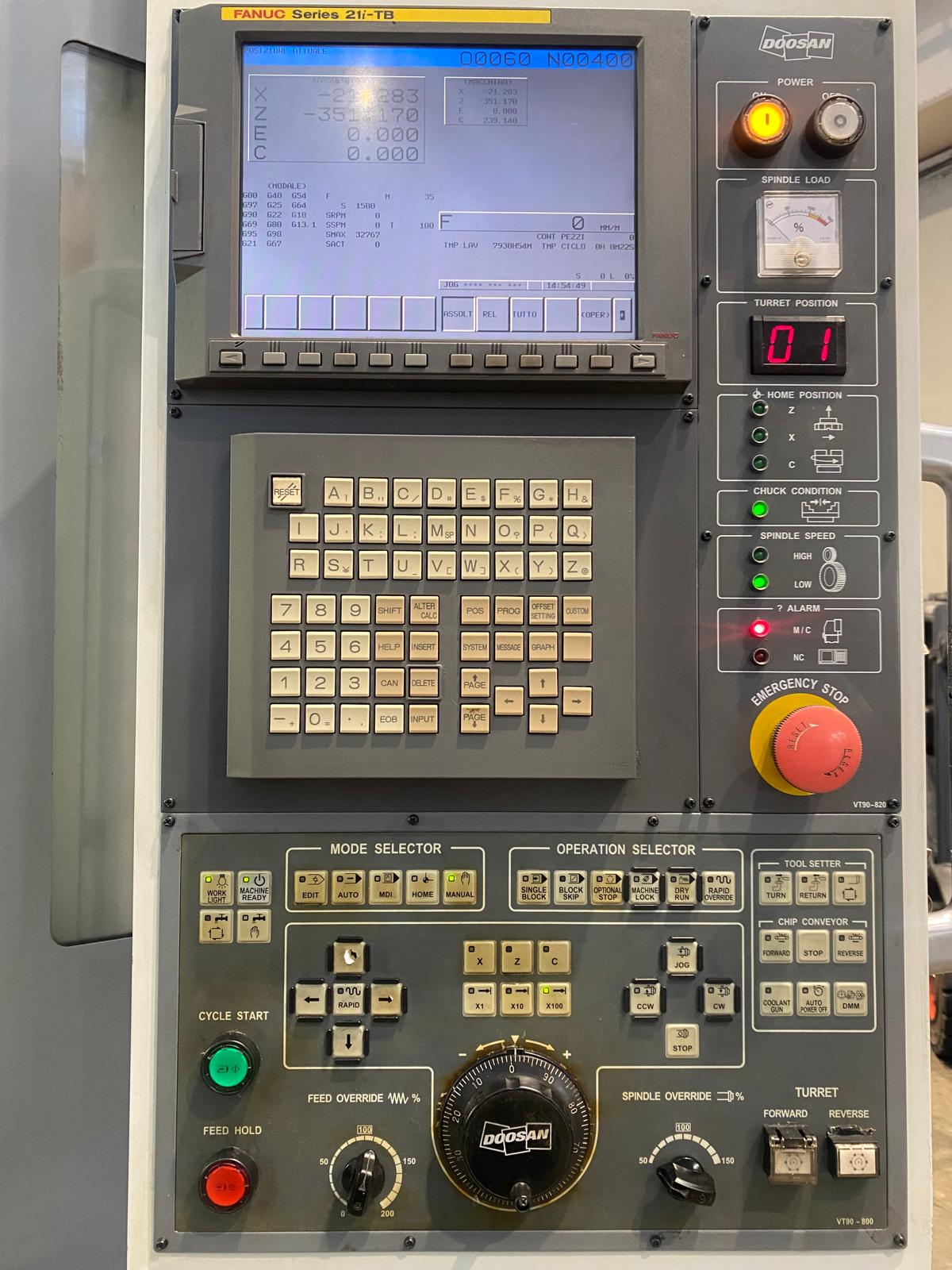

| CNC Control | FANUC Series 21i-TB |
| Max diameter swing over bed | Ø 1.000 mm |
| Max diameter swing over saddle | Ø 700 mm |
| Max turning diameter | Ø 900 mm |
| Max turning height | 850 mm |
| X axis travel | 470 mm |
| Z axis travel | 850 mm |
| C asix travel | 360° (Min. Angle 0,001°) |

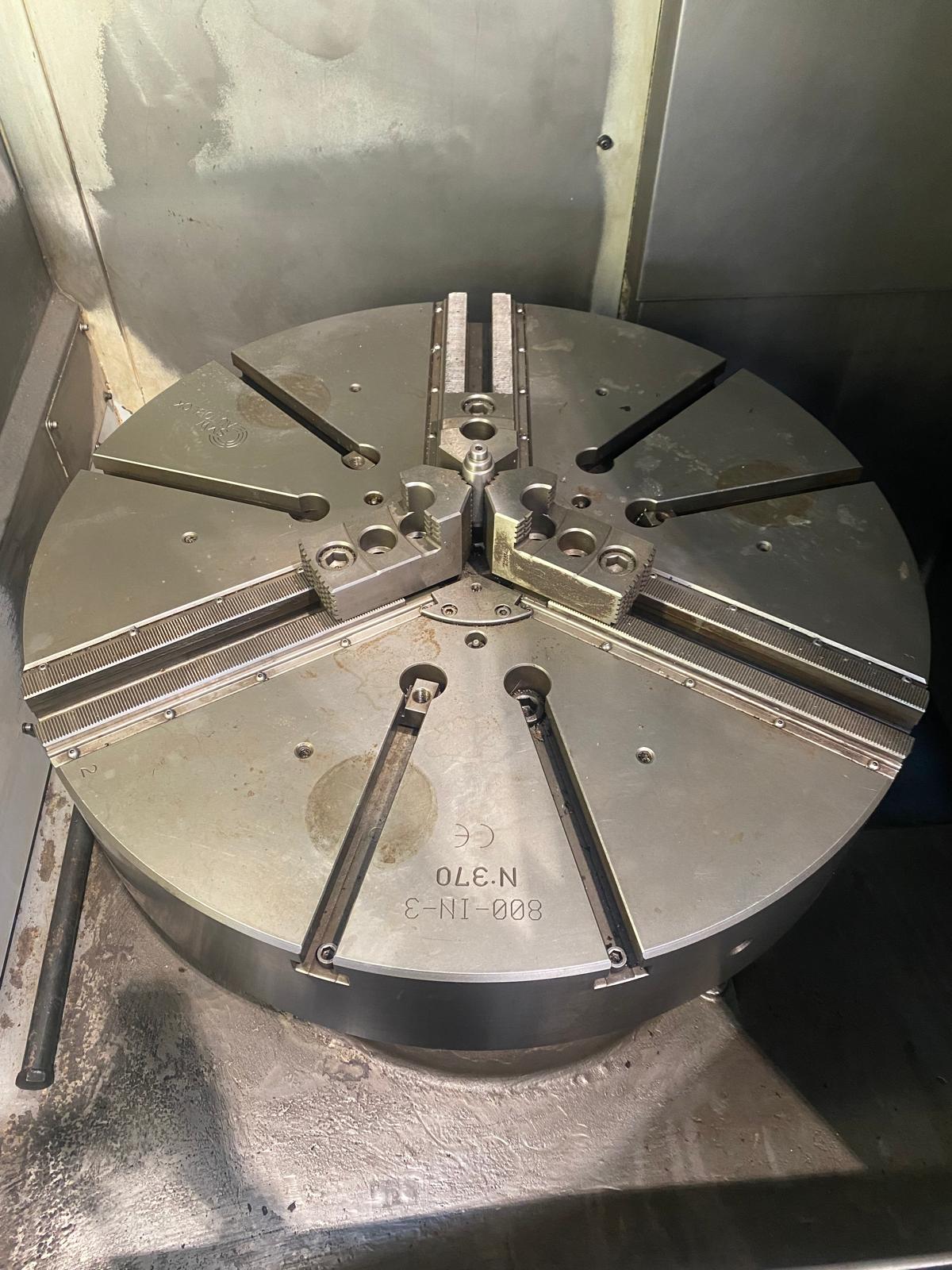

| Chuck diameter | Ø 800 mm |
| Spindle nose | ASA A2-15 |
| Spindle speed | 1.800 Rpm |
| Spindle speed steps | 2 Steps |
| Spindle motor power (cont/30 min) | 37/45 kW |

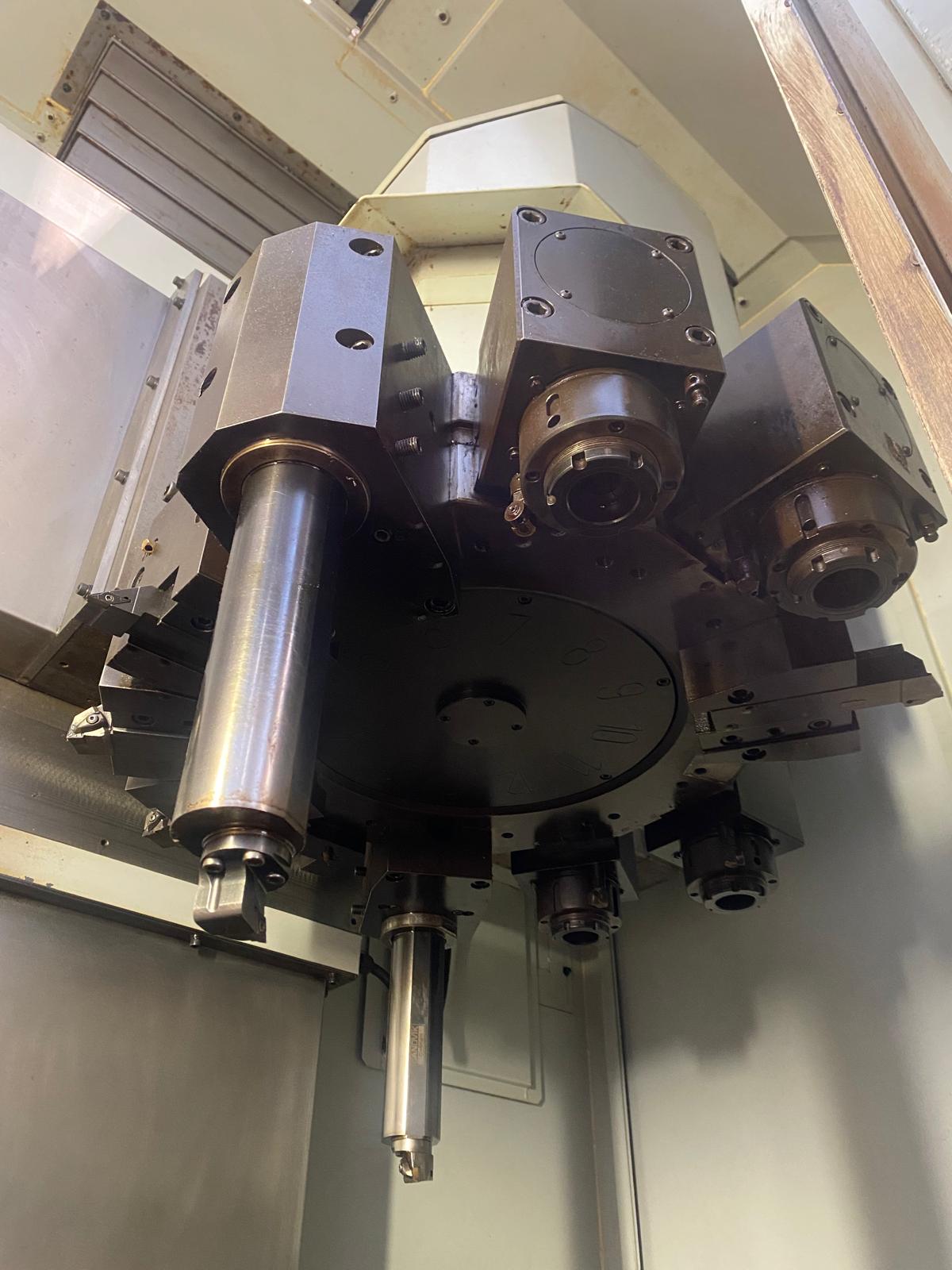

| Turret positions | 12 stations (Live-tool also) |
| Tools dimensions / boring bar diameter | 32x32 / Ø80 mm |
| Live tool motor power | 7 kW |
| Rapid feedrates X Axis | 20.000 mm/min |
| Rapid feedrates Z Axis | 20.000 mm/min |

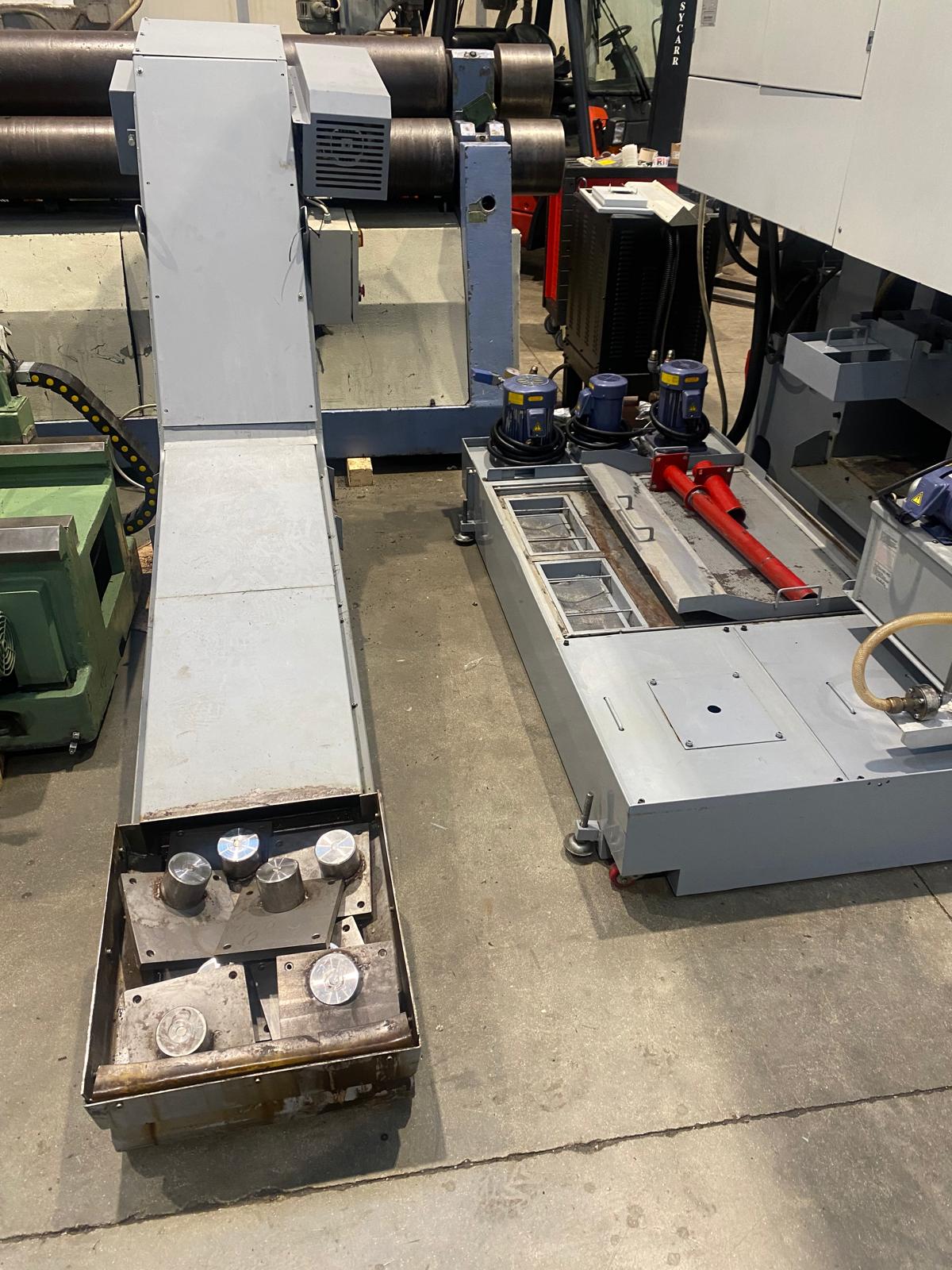

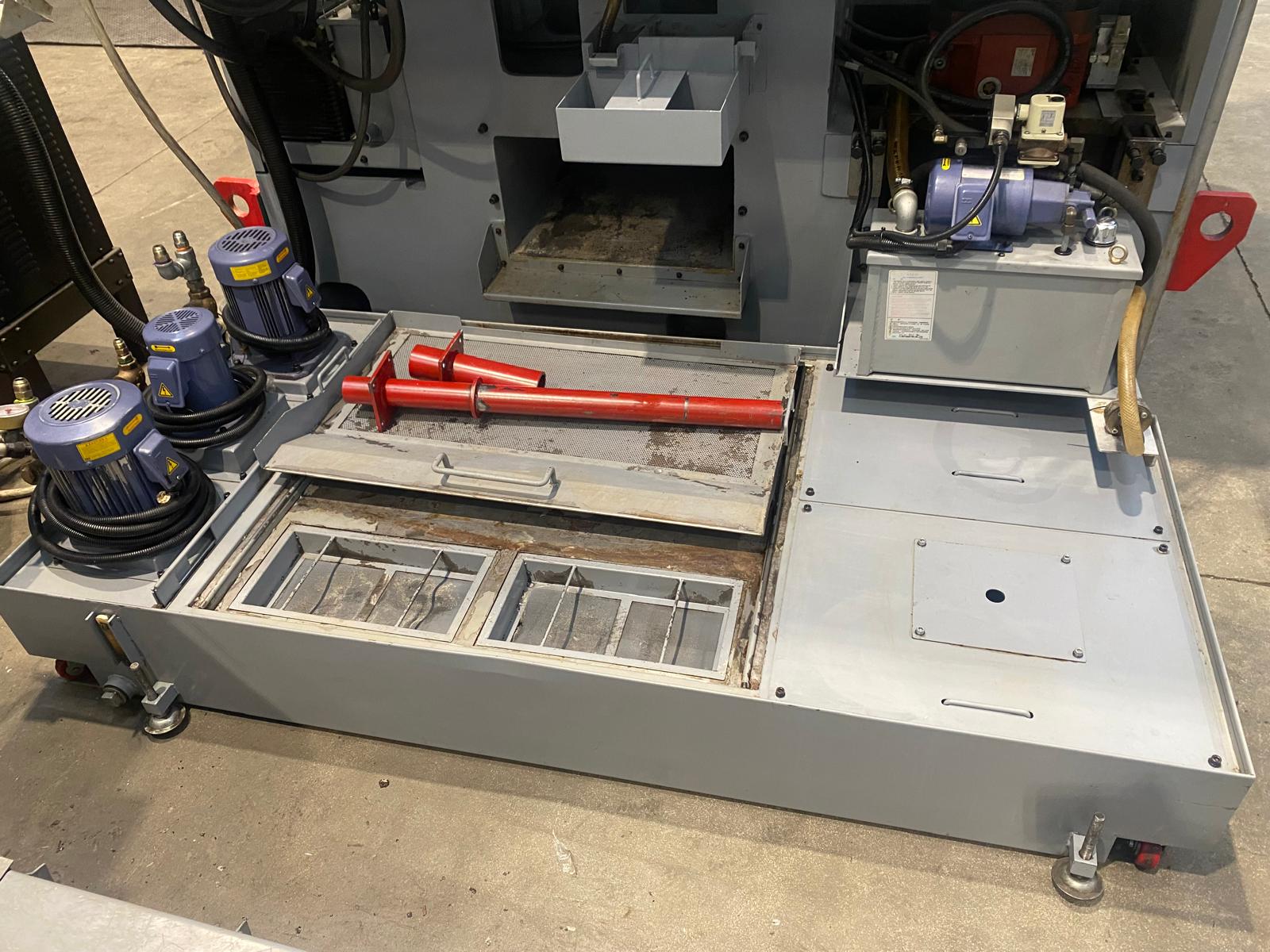

| Accessories | Chip conveyor - Coolant tank with pumps - Chiller for spindel head - Various live tool / fix holders - Manuals - Electrical diagrams - EC CE Decleration |
