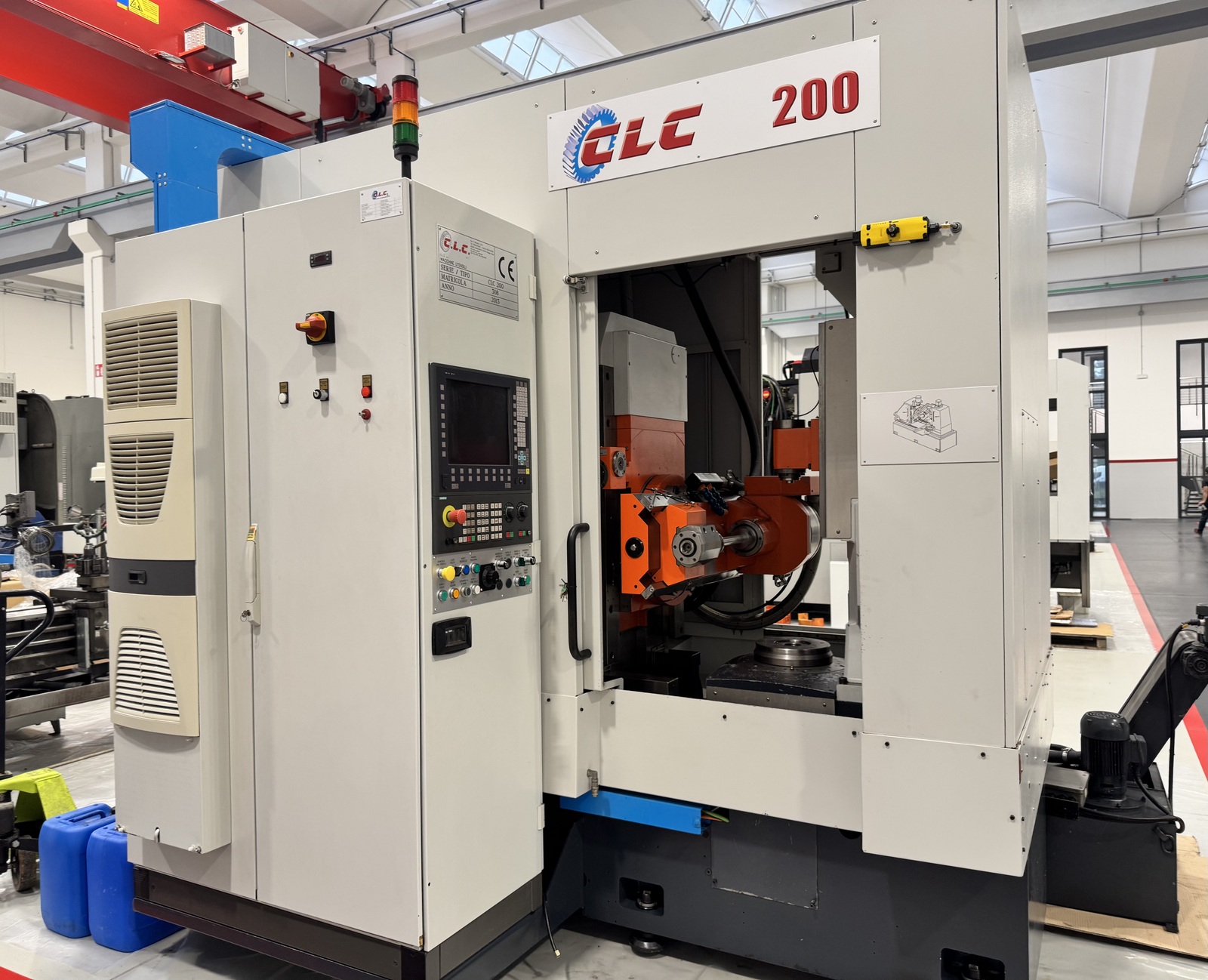

CLC-200 C.L.C
CLC-200 C.L.C
Specifications
| Manufacturer | C.L.C. |
| Year | 2013 |
| Condition | Used |
| CNC CONTROL | SIEMENS 840D |
| MACHINE DIMENSIONS | Length: 3.500 mm Width: 2.500 mm Height: 2.700 mm |
| TOTAL POWER REQUIRED | 41 kW |
| Spindle type | ISO-40 |
| Max workable diameter | Ø 200 mm |
| Max module | 6 |
| Max vertical travel | 300 mm |
| Table diameter | Ø 210 mm |
| Table rotational speed | 240 Rpm |
| Distance between hob cutter axis and table axis | Minimum: 10 mm Maximum: 270 mm |
| Max head inclination | ± 45° |
| Tangential head travel | 205 mm |
| Max diameter of hob cutter | Ø 135 mm |
| Axial rapid feed | 4.000 mm/min |
| Radial rapid feed | 4.000 mm/min |
| Tangential rapid feed | 6.000 mm/min |
| Spindle motor power | 12 kW |
| Accessories | Magnetic chip conveyor, Coolant tank with pumps Manuals, Electrical diagrams and EC CE Declaration |
