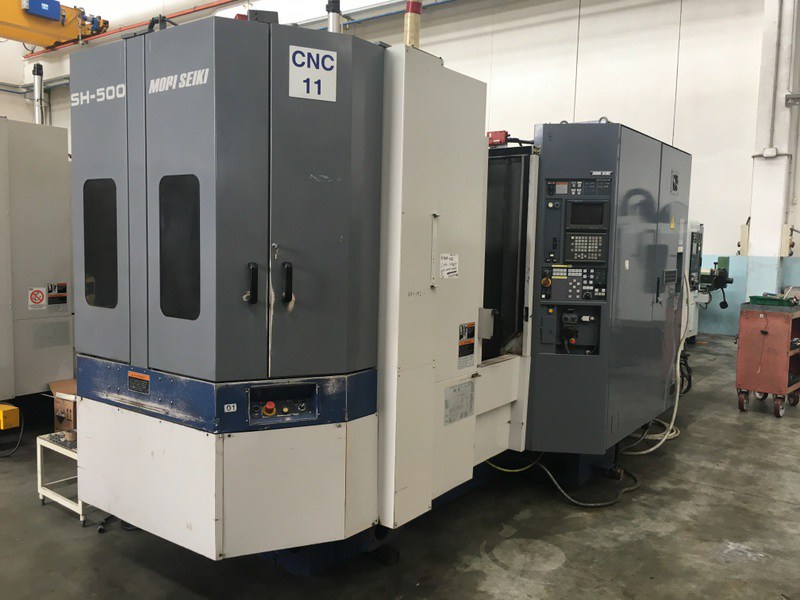

1998 Mori Seiki SH-500 (Horizontal Machining Center – 3 Pallets)
Sold
1998 Mori Seiki SH-500 (Horizontal Machining Center – 3 Pallets)
Description
spindle Travels Table Feed rates ATC APC
Specifications
| Manufacturer | MORI SEIKI |
| Model | SH-500 (3 pallet) |
| Year | 1998 |
| Condition | Used |
| Nose | MAS BT-40 (CAT 40) |
| Other | Manuals, conveyor chips |
| Shank | 90 ° for Mori Seiki |
| Axis x | 630 mm |
| Axis y | 600 mm |
| Axis z | 650 mm |
| Feed rates | 1-16,000 mm / min |
| Attachments | N ° 40 |

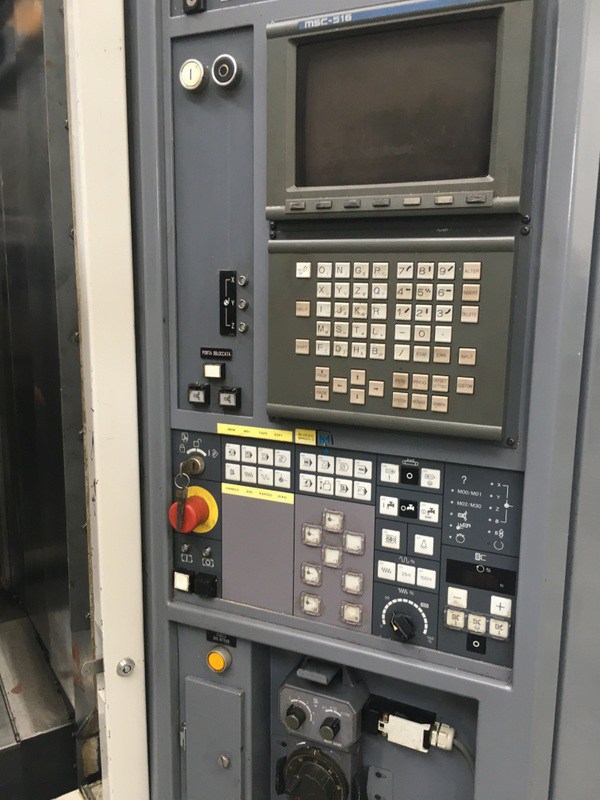

| Cnc control | FANUC MSC-516 |
| Spindle speed | 12,000 RPM |
| Machine weight | 14,000 Kg |
| Max tool length | 360 mm |
| Max piece weight | 700 Kg |

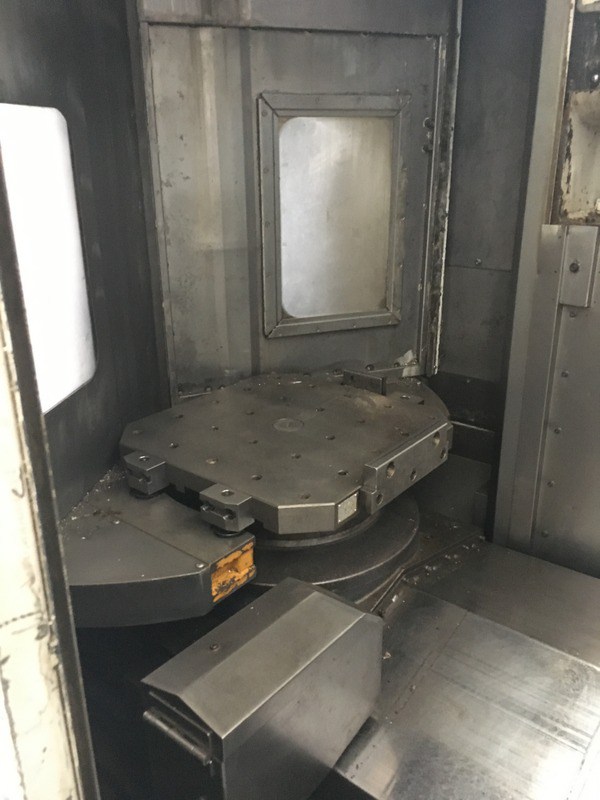

| Table dimensions | 500 x 500 mm |
| Number of pallets | 3 |
| Maximum tool weight | 12 Kg |
| Table load capacity | 500 Kg |
| Feed rates in manual | 0-1,260 mm / min <15 steps> |
| Machine's dimensions | Width 2,900 mm Depth 4,500 mm Height 3.430 mm |
| Tool storage capacity | Station No. 60 |
| Pallet changing method | Swivel type |
| Fast feed rates x, y, z | 32,000 mm / min |
| Front bearing's inner diameter | 85 mm |
| Configuration of the table surface | 24 - M16 // P = 100 |
| Max tool diameter (with adjacent tools) | 100 mm |
| Table's center and spindle nose distance | 150 -800 mm |
| Max tool diameter (without adjacent tools) | 150 mm |
| Table's surface and spindle's center distance | 50 to 650 mm |
