PUMA 230-MSB
PUMA 230-MSB
or
Call +39 0522 1536494
Specifications
| Manufacturer | Daewoo Doosan |
| Model | PUMA 230-MSB |
| Year | 2003 |
| Condition | Used |

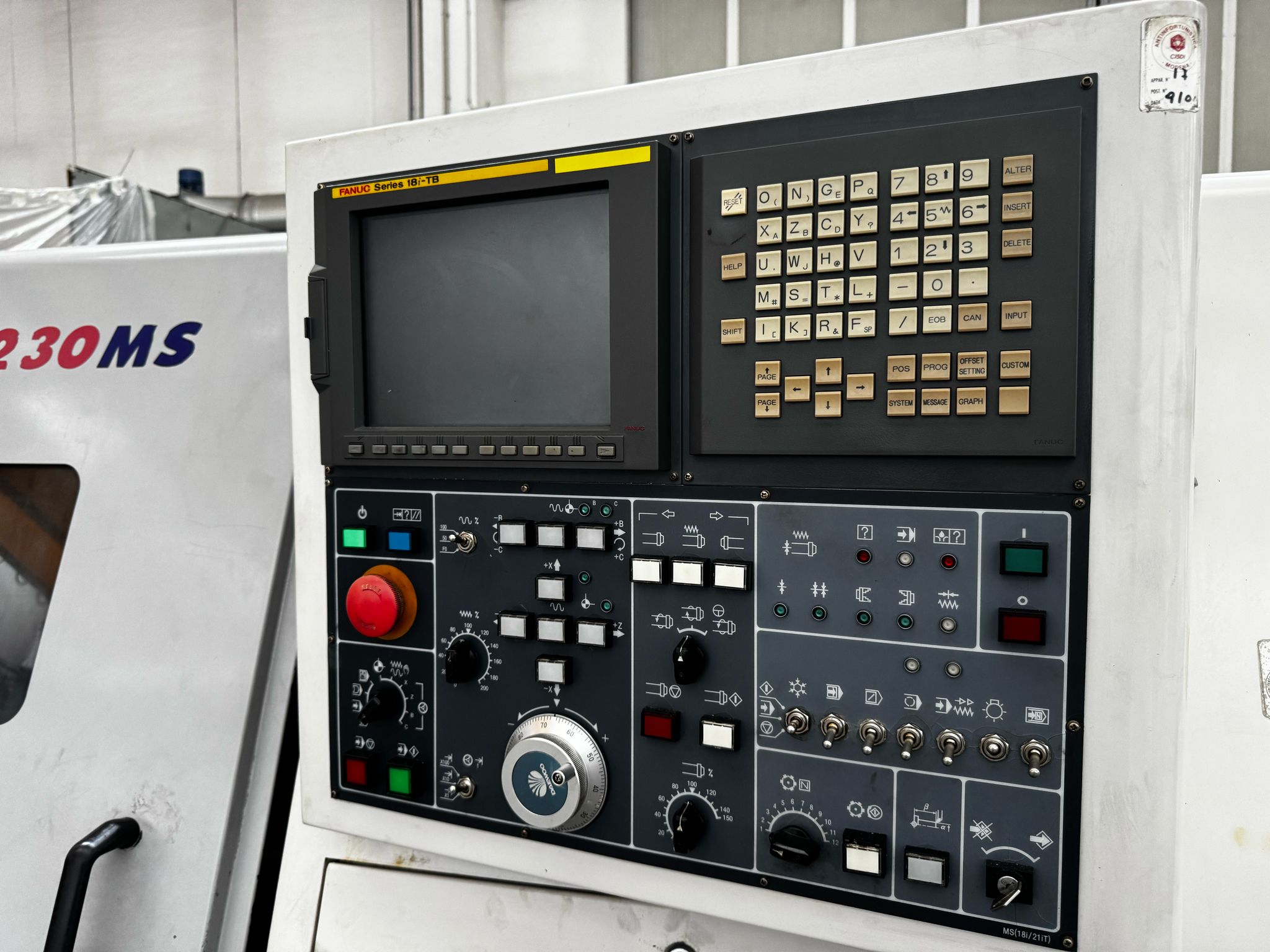

| CNC Control | FANUC |
| Max swing over the bench | Ø 550 mm |
| Max turning diameter | Ø 300 mm |
| Max turning length | 513 mm |
| Draw bar diameter main spindle | Ø 65 mm |
| Draw bar diameter sub-spindle | Ø 32 mm |
| X axis travel | 205 mm |
| Z axis travel | 580 mm |
| B axis travel | 580 mm |
| Collet chuck Bellegrandi | Type-MSCTN70-A6 |
| Spindle speed | 4.500 RPM |
| Spindle nose | ASA 6 |
| Spindle motor power (cont/30 min) | 9 / 11 kW |
| C Axis angolar positioning | 0,001° |

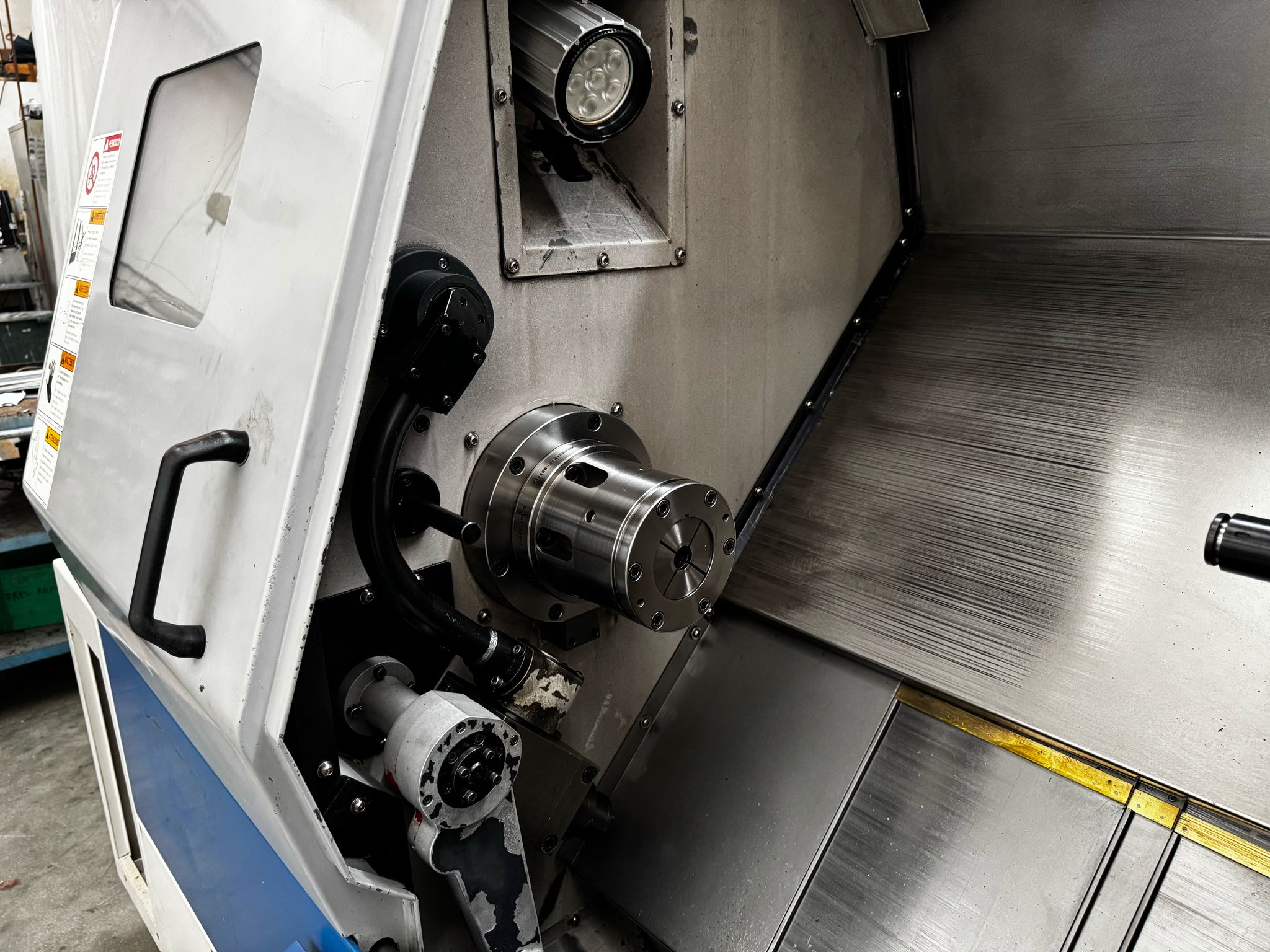

| Sub-spindle Collet chuck Bellegrandi | Type-MSCTNR42-AF110-S |
| Sub-spindle speed | 6.000 RPM |
| Sub-spindle nose | ASA 5 |
| Sub-spindle motor power (cont/30 min) | 5.5 kW |
| Sub-spindle C Axis angolar positioning | 0,001° |

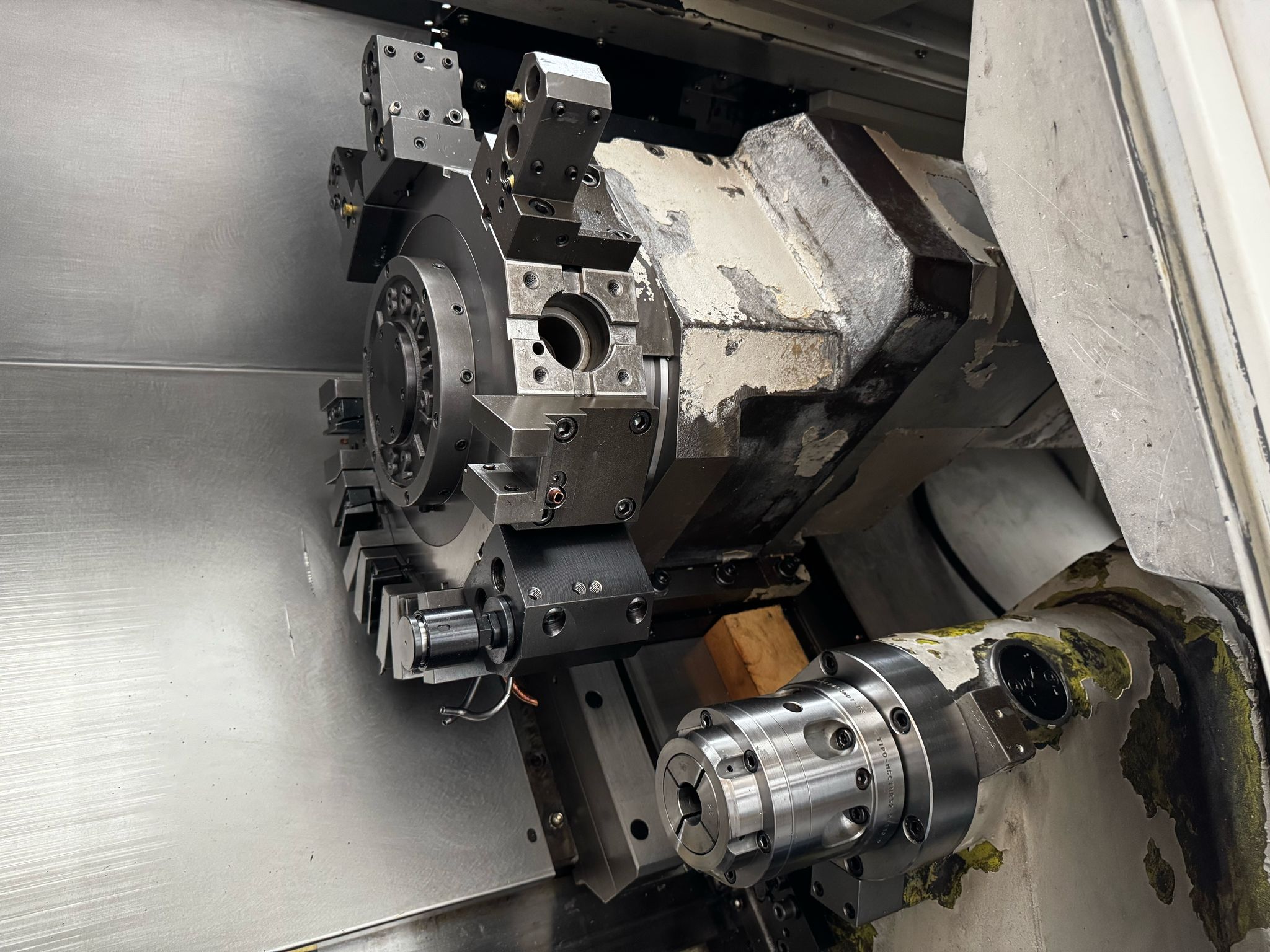

| Turret with live-tools | 12 positions |
| Live-tools speed | 5.000 RPM |
| Live-tools motor power (cont/30 min) | 3,7 kW |
| Tool dimensions | 25x25 mm / Ø 40 mm |
| X axis feedrate | 24.000 mm/min |
| Z axis feedrates | 30.000 mm/min |
| B axis feedrate | 20.000 mm/min |

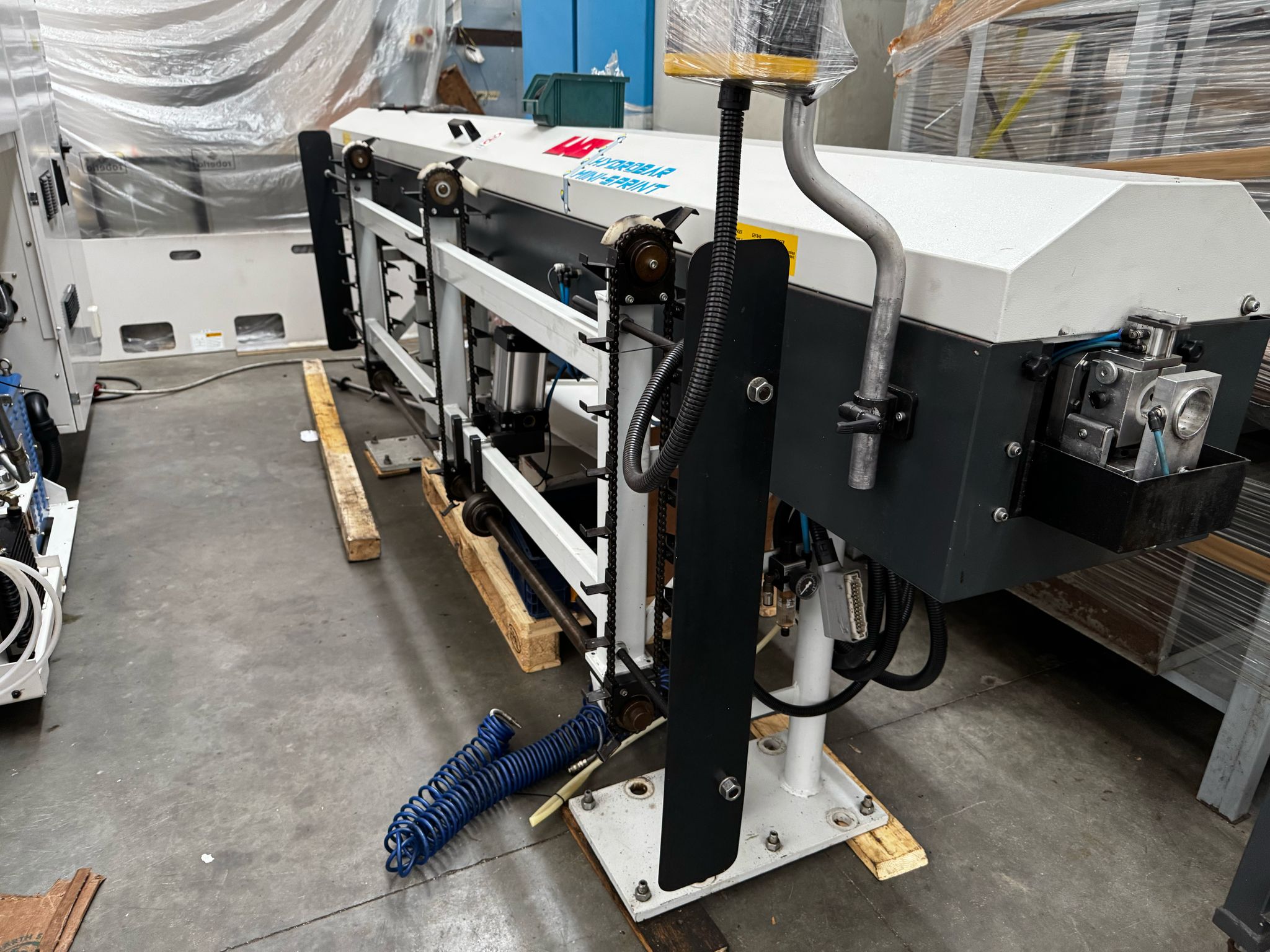

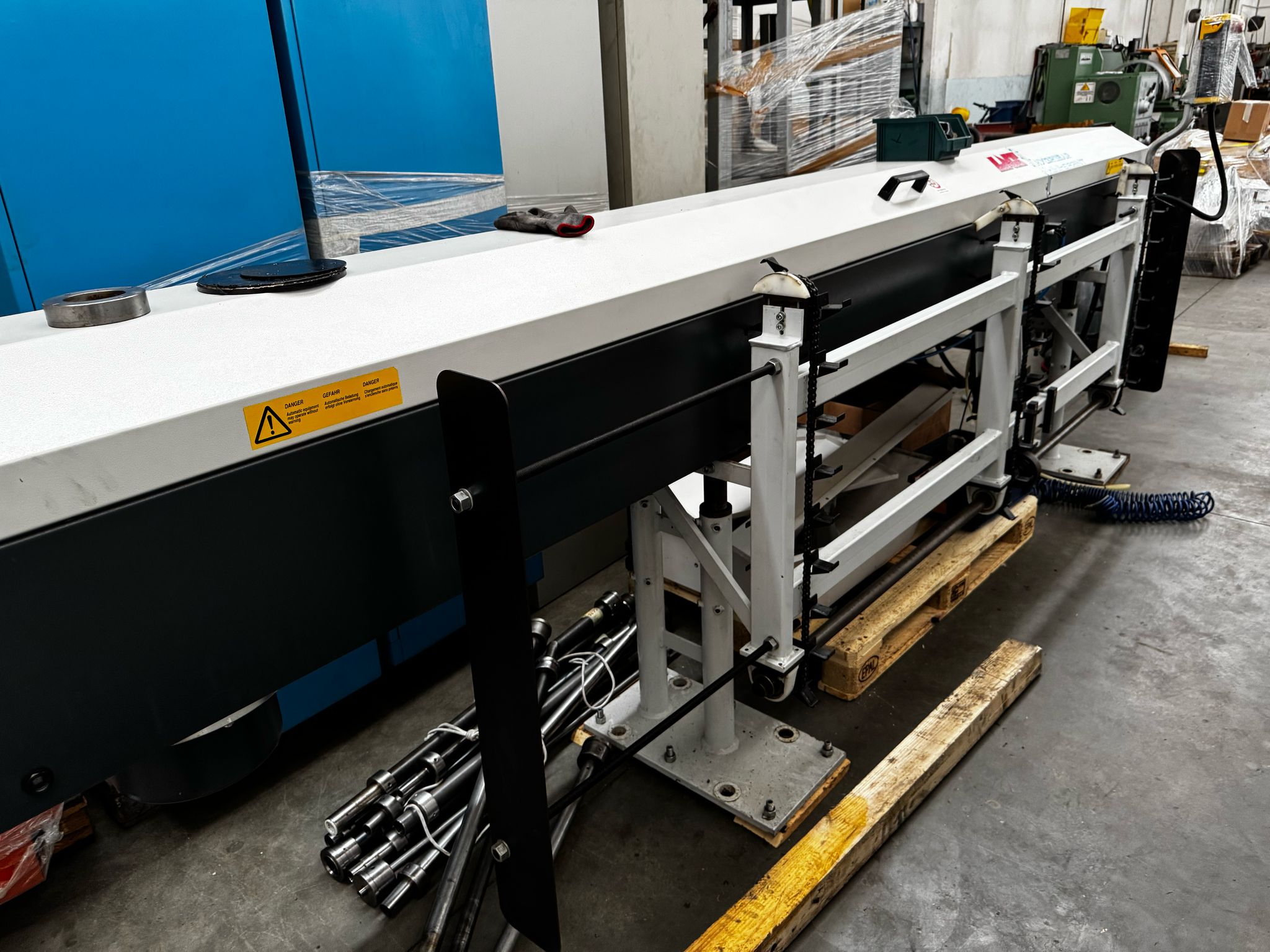

| Accessories | CARICATORE LNS HYDROBAR, Tool presetting with automatic descent and ascent system (with button and M code), Coolant tank with 180 Lt capacity and Q.ty 2 pumps at 6 Bar pressure, Chips-conveyor with right-side exit, Automatic hand for piece collection (with button and M code) and belt with discharge on the right side, Various static tool holders, Manuals, Electrical Diagrams and EC CE Declaration |
